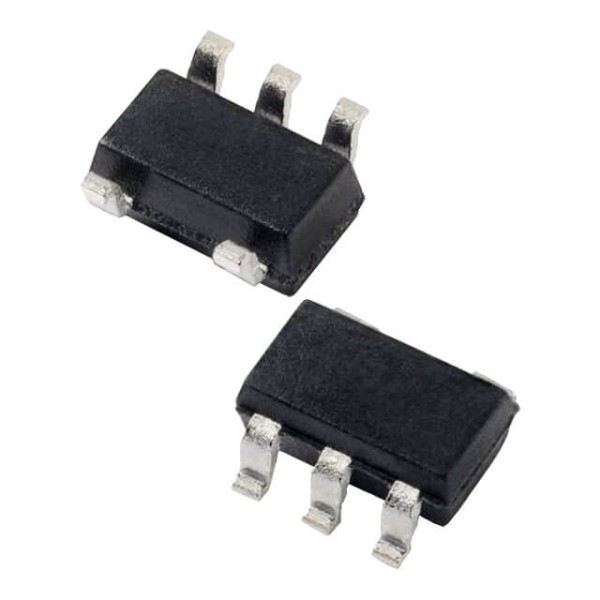

MCP1416T-E/OT SOT-23-5 MOSFET Gate Driver IC (MCP1416T-E/OT)
The MCP1416T-E/OT is a high speed MOSFET gate driver IC designed for driving power MOSFETs in switching power supplies, motor control systems, and PWM applications. It provides high peak output current and fast switching performance in a compact SOT-23-5 package, making it suitable for compact and high efficiency power electronics designs.
Key Features -
- High speed MOSFET gate driver IC
- High peak output current capability
- Fast rise and fall switching times
- SOT-23-5 surface mount package
- CMOS and TTL compatible input levels
Specifications -
- IC type / Product type - MOSFET Gate Driver IC
- Logic family / Component type - Power Driver IC
- Package type - SOT-23-5 SMD IC
- Supply voltage - Approx 4.5V to 18V DC
- Input voltage - CMOS and TTL compatible logic input levels
- Output voltage - MOSFET gate drive output
- Current rating - Approx 1.5A peak output current
- Frequency / propagation delay - Fast switching response with low propagation delay
- Operating temperature - Approx -40 to +125 degree C
- Additional important specifications - High current output stage, low shoot-through current, fast gate charging capability, short rise and fall times
Applications -
- MOSFET switching circuits
- DC-DC converter systems
- Motor driver applications
- PWM control circuits
- Embedded power electronics projects
Pinout Configuration -
- Pin 1 - Input control signal
- Pin 2 - Ground connection
- Pin 3 - Enable or control pin
- Additional pins - Supply voltage pin and gate drive output pin
