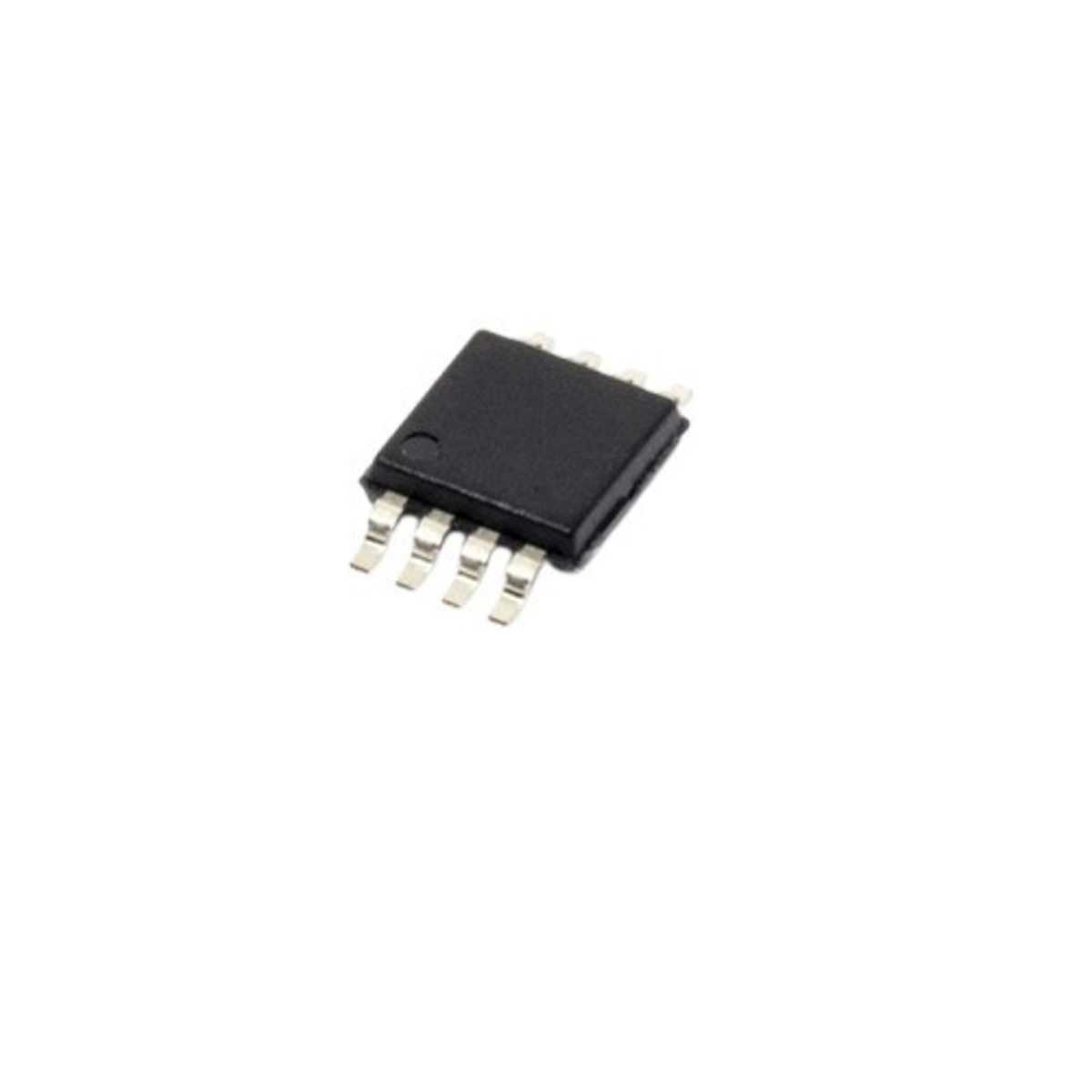

MCP3301-BI/MS 13 Bit Analog to Digital Converter (MSOP 8)

The MCP3301-BI/MS is a 13 bit successive approximation analog to digital converter designed for precision analog signal measurement and data acquisition applications. It features a differential analog input and SPI compatible serial interface, making it suitable for sensor interfaces, instrumentation, industrial control and embedded measurement systems.

Key Features -

• 13 bit analog to digital converter

• Successive Approximation Register architecture

• Differential analog input

• SPI compatible serial interface

• Up to 100ksps sampling rate

• External voltage reference

• Low power operation

• Suitable for precision data acquisition

• Compact MSOP 8 SMD package

• Suitable for embedded and industrial systems

Specifications -

• Part Number: MCP3301-BI/MS

• Product Type: Analog to Digital Converter

• ADC Resolution: 13 Bit

• ADC Architecture: Successive Approximation Register

• Number of Input Channels: 1 Differential

• Sampling Rate: Up to 100ksps

• Supply Voltage: 2.7V to 5.5V

• Reference Type: External

• Package: MSOP 8

• Mounting Type: SMD

• Application: Analog Signal Measurement and Data Acquisition

Applications -

• Sensor signal acquisition

• Data acquisition systems

• Industrial instrumentation

• Embedded measurement systems

• Process control equipment

• Battery powered instrumentation

• Analog signal monitoring

• Laboratory equipment

• Precision measurement circuits

• Microcontroller based systems
