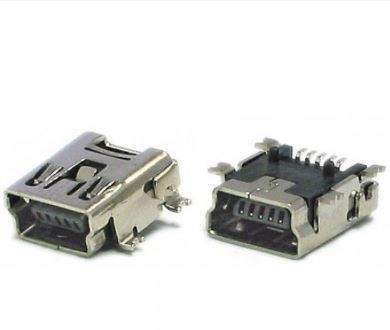

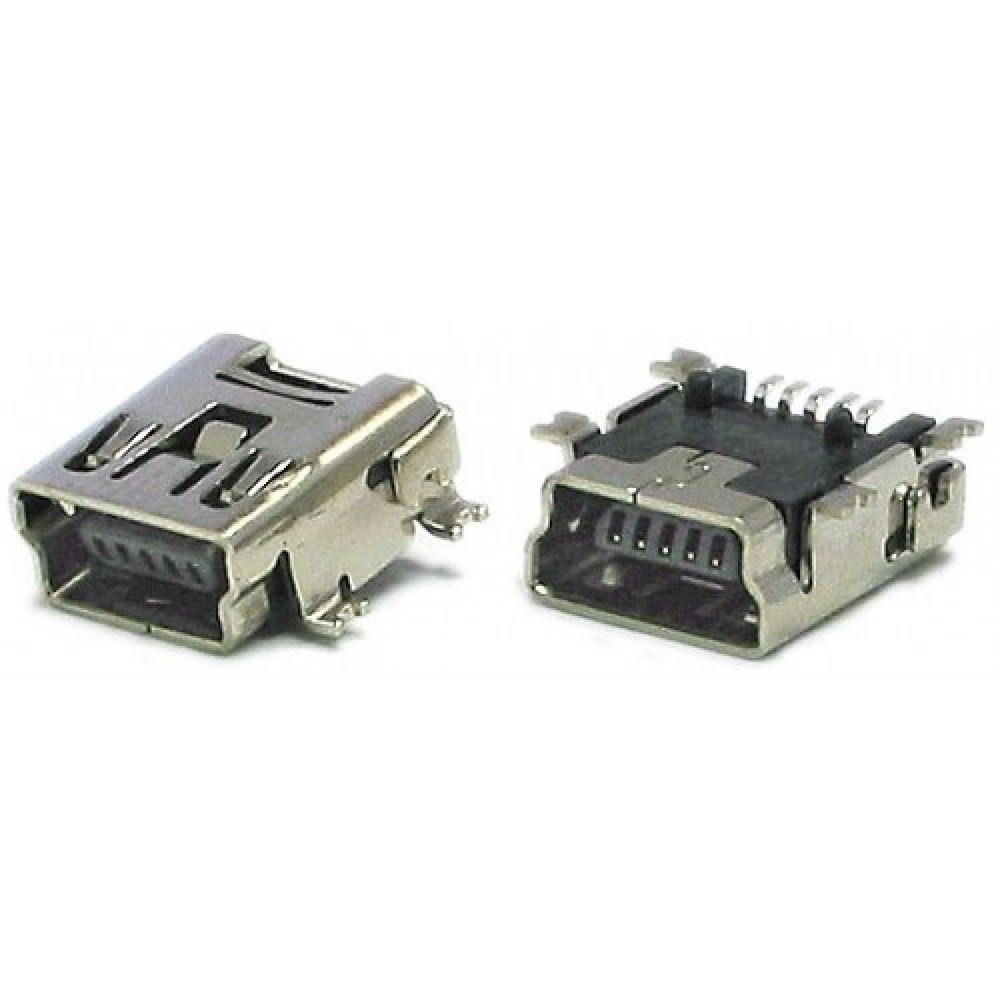

Mini-B USB Connector 5 Pin SMD Female (Surface Mount USB Mini-B Socket)

The Mini-B USB Connector 5 Pin SMD Female is a compact surface-mount USB connector designed for data transfer and power connections in portable electronic devices, development boards, storage devices, MP3 players, and embedded systems. Featuring a standard Mini-B USB interface, it provides reliable connectivity and secure PCB mounting through solder tabs and positioning posts.

Key Features -

• Standard Mini-B USB female connector

• 5-pin USB interface

• Surface mount SMD design

• Compact and durable construction

• Secure PCB mounting tabs

• Integrated positioning posts

• Reliable data and power connectivity

Specifications -

• Product type - USB Connector

• Connector type - Mini-B USB Female

• Number of pins - 5 Pin

• Mounting type - SMD Surface Mount

• Interface standard - USB Mini-B

• Contact material - Copper alloy

• Housing material - Metal shield with insulated base

• PCB retention - Side mounting tabs and locating posts

• Application - Data transfer and power connection

• Additional features - Standard PCB footprint compatibility

Applications -

• USB storage devices

• MP3 players

• Development boards

• Embedded systems

• Portable electronics

• USB-powered devices

• Electronic repair and prototyping
