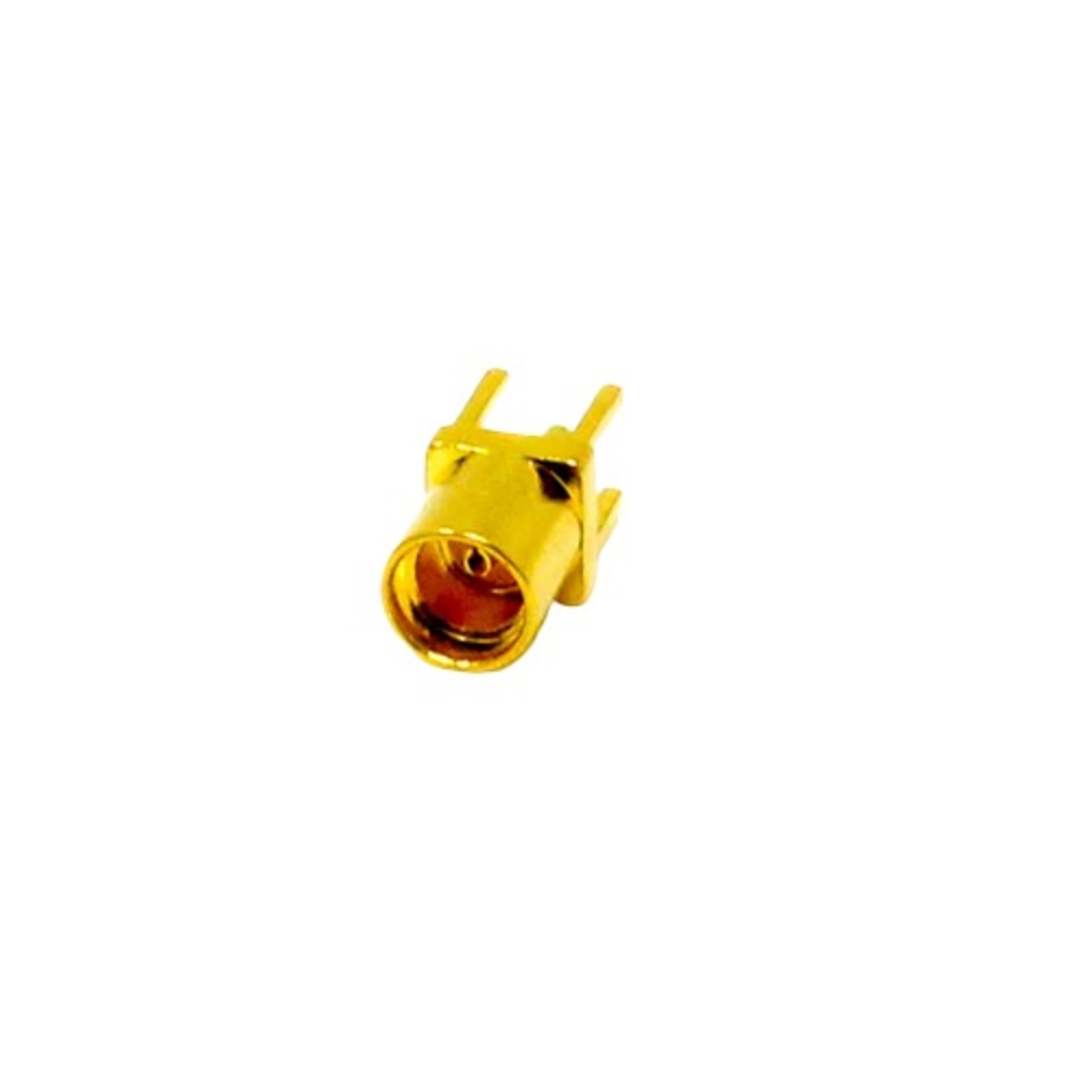

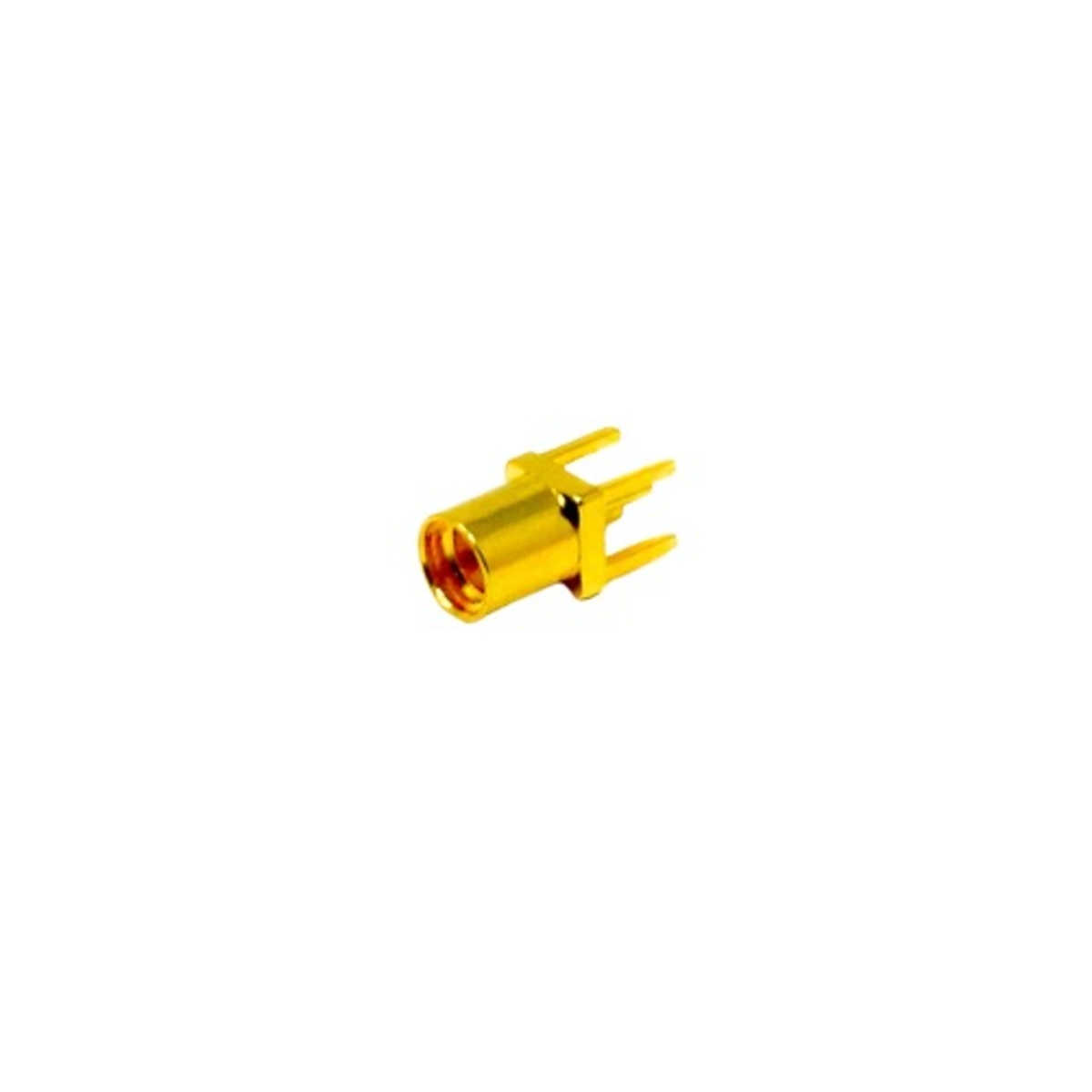

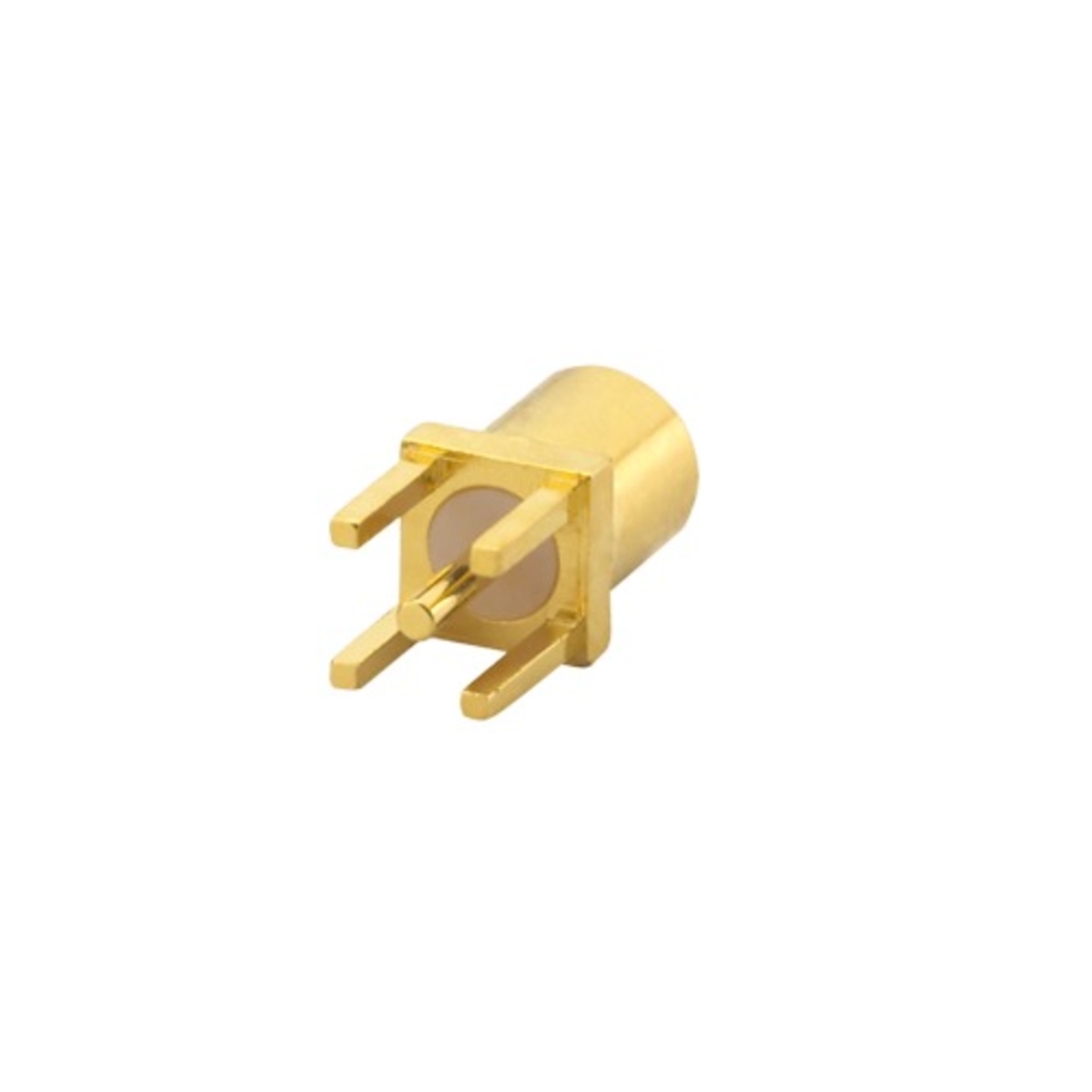

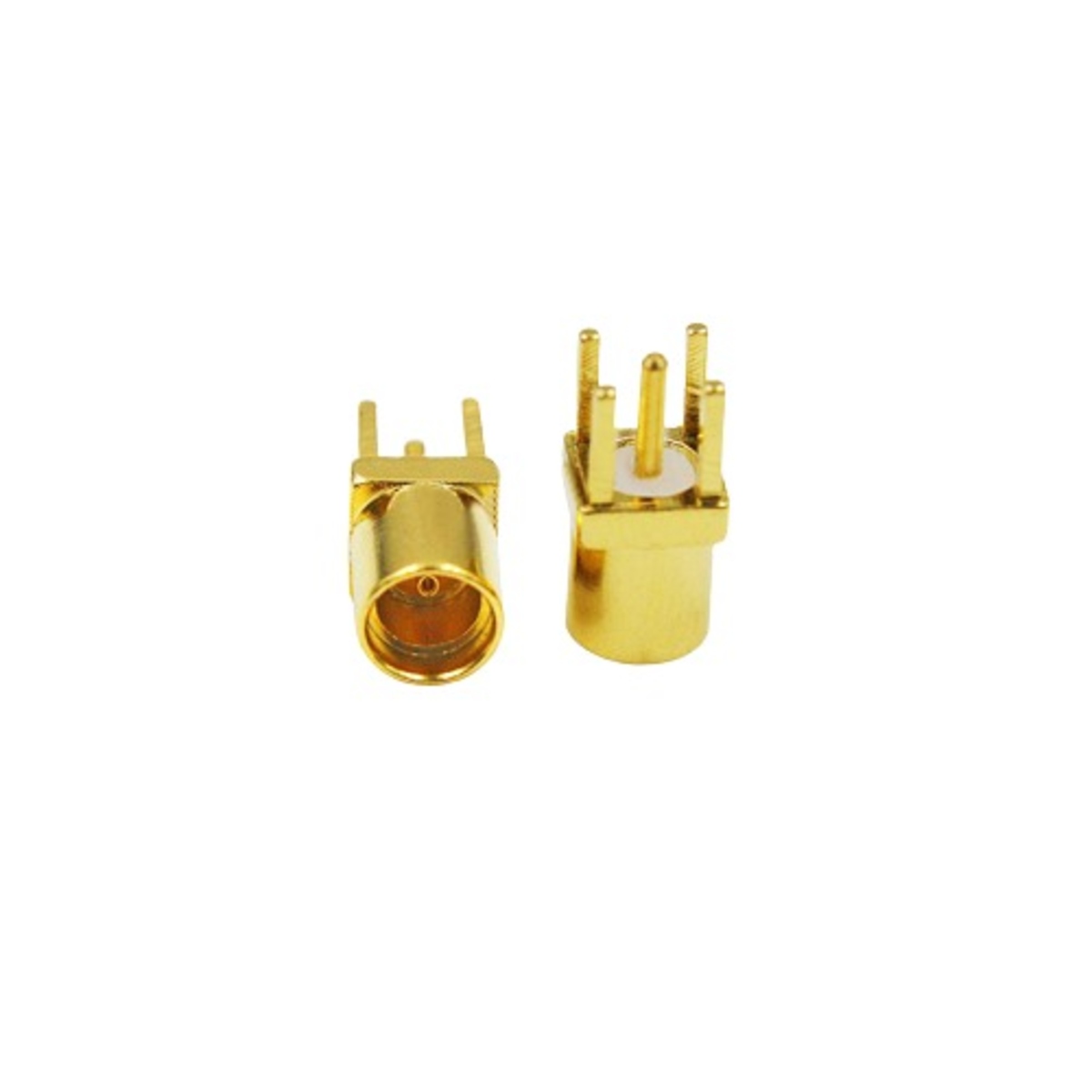

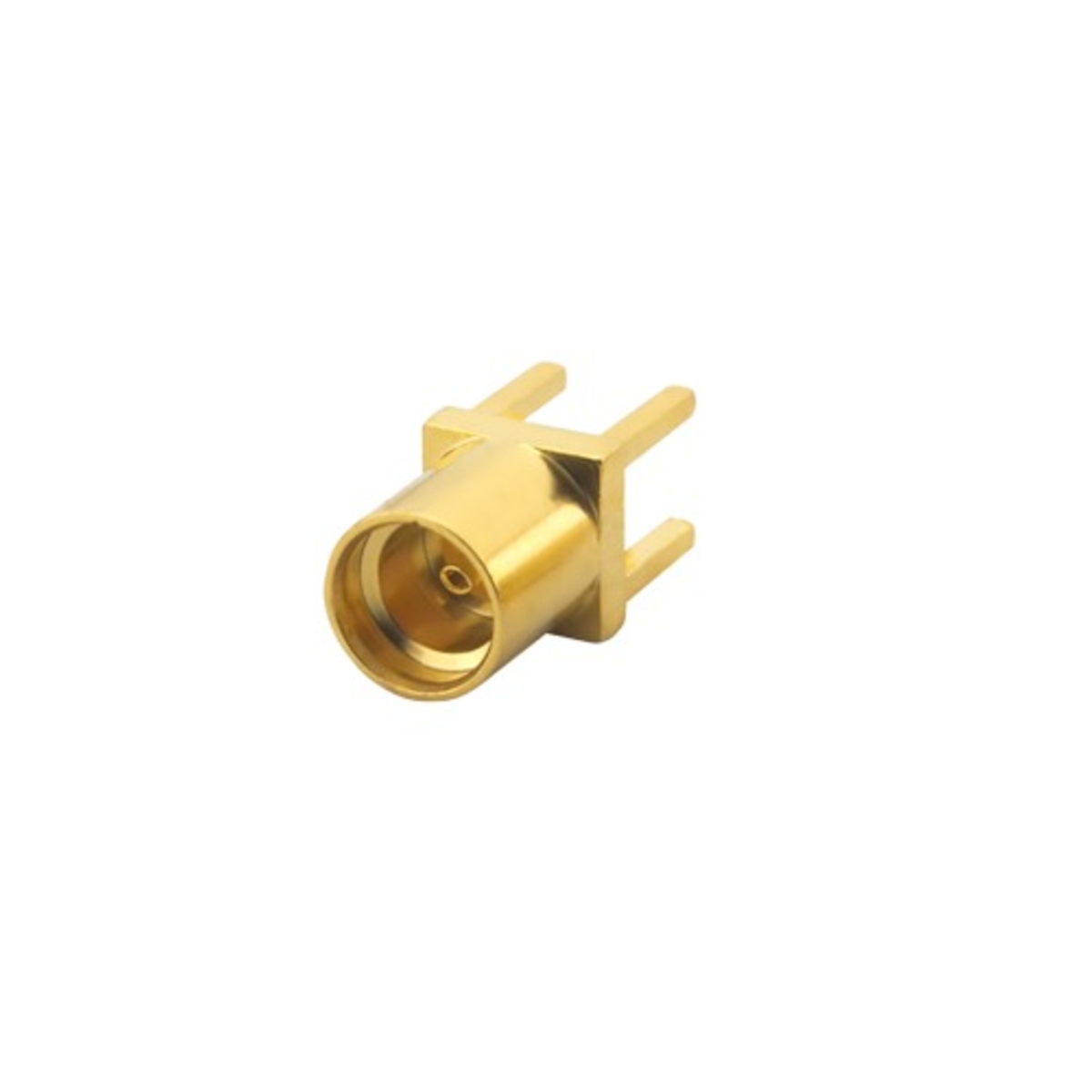

MMCX Male Straight PCB Mount RF Connector Through Hole 50 Ohm (MMCX Male Connector)

The MMCX Male Straight Through Hole PCB Mount Connector is designed for reliable high-frequency RF signal transmission in wireless communication systems, RF modules, antennas, GPS equipment, and embedded electronic applications. Its compact miniature design provides secure RF connectivity with stable electrical performance for high-frequency signal routing.

The connector features a straight through-hole mounting configuration, 50 Ohm impedance matching, and gold-plated contacts for excellent conductivity and low signal loss.

Key Features -

• MMCX male RF connector

• Straight through-hole PCB mount design

• 50 Ohm impedance matching

• High-frequency operation up to 6GHz

• Compact miniature connector structure

• Reliable RF signal transmission

• Gold-plated contacts for low signal loss

Specifications -

• Product type - RF Connector

• Connector type - MMCX Male Connector

• Mounting type - Through Hole PCB Mount

• Orientation - Straight Type

• Impedance - 50 Ohm

• Frequency range - DC to 6GHz

• VSWR - Less than or equal to 1.3 Maximum

• Dielectric withstanding voltage - 500V RMS

• Working voltage - 170V RMS

• Contact material - Gold-Plated Metal Contacts

• Housing material - Metal Body Construction

• Additional features - Compact size, low signal loss, stable RF performance

Applications -

• RF communication systems

• GPS modules and antennas

• Wireless networking equipment

• RF development boards

• Embedded RF applications

• Signal transmission circuits

• Test and measurement equipment
