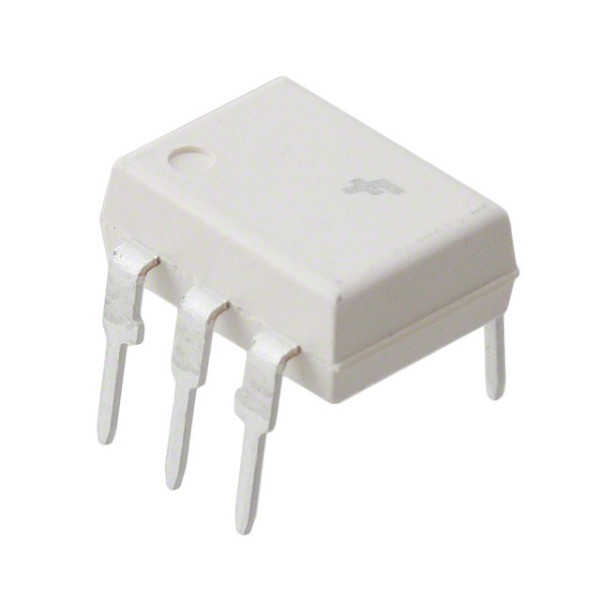

MOC3011 Optocoupler Triac Driver IC (DIP 6 Package)

The MOC3011 is an optically isolated triac driver IC designed to interface low voltage control circuits with AC power switching devices. It combines an infrared LED input with a photo triac output, providing electrical isolation between the control and power sections. Its random phase output makes it suitable for applications requiring phase control as well as general AC load switching.

Key Features -

• Optically isolated triac driver

• Infrared LED input

• Photo triac output

• Random phase switching

• Non zero crossing type

• Provides electrical isolation between control and AC circuits

• Suitable for triggering external power triacs

• Suitable for phase control applications

• DIP 6 through hole package

Specifications -

• Part Number: MOC3011

• Component Type: Optocoupler Triac Driver

• Input Type: Infrared LED

• Output Type: Photo Triac

• Switching Type: Random Phase

• Zero Crossing: No

• Package Type: DIP 6

• Number of Pins: 6

• Mounting Type: Through Hole

• Electrical Ratings: Refer to the exact manufacturer datasheet

Applications -

• AC load switching

• Light dimmer circuits

• Heater control

• Motor speed control

• Solid state relays

• Triac triggering circuits

• Industrial control equipment

• AC power controllers

• Isolated microcontroller interfaces
