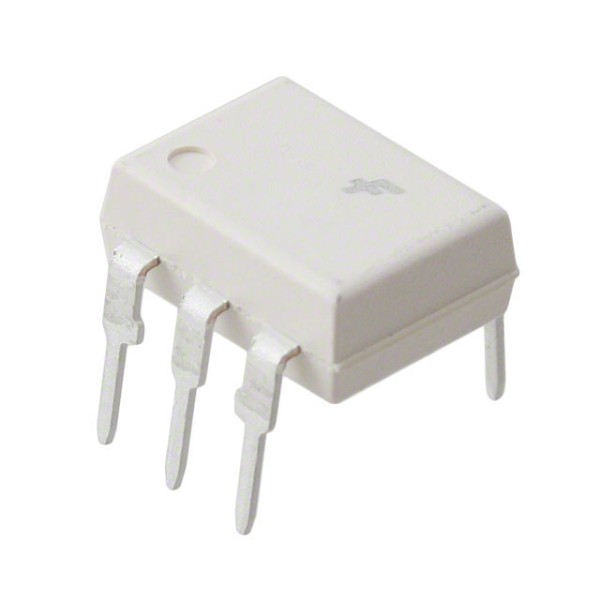

MOC3020 Optocoupler Triac Driver IC (DIP 6 Package)

The MOC3020 is an optically isolated triac driver IC designed to interface low voltage control circuitry with AC power switching circuits. It combines an infrared LED input with a photo triac output, providing electrical isolation between the control and power sections. Its random phase switching capability makes it suitable for phase control and general AC load switching applications.

Key Features -

• Optically isolated triac driver

• Infrared LED input

• Photo triac output

• Random phase switching

• Non zero crossing type

• Provides electrical isolation between input and output

• Suitable for triggering external power triacs

• Suitable for phase angle control

• DIP 6 through hole package

Specifications -

• Part Number: MOC3020

• Component Type: Optocoupler Triac Driver

• Input Type: Infrared LED

• Output Type: Photo Triac

• Switching Type: Random Phase

• Zero Crossing: No

• Package Type: DIP 6

• Number of Pins: 6

• Mounting Type: Through Hole

• Electrical Ratings: Refer to the exact manufacturer datasheet

Applications -

• AC load switching

• Light dimmer circuits

• Heater control circuits

• Motor speed controllers

• Solid state relays

• Triac triggering circuits

• Industrial control equipment

• AC power controllers

• Isolated microcontroller interfaces
