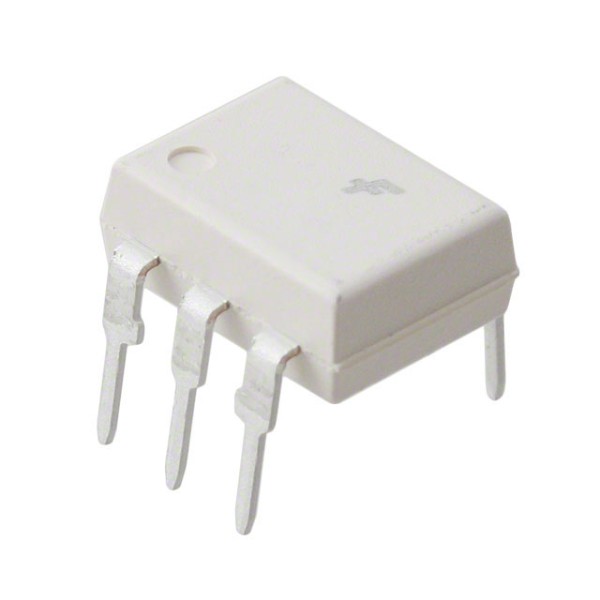

MOC3021 Optocoupler Triac Driver IC (DIP 6 Package)

The MOC3021 is an optically isolated triac driver IC designed to interface low voltage control circuits with AC power switching devices. It combines an infrared LED input with a photo triac output, providing electrical isolation between the control and AC power sections. Its random phase switching operation makes it suitable for phase control applications such as dimmers, heater controllers, and motor speed controls.

Key Features -

• Optically isolated triac driver

• Infrared LED input

• Photo triac output

• Random phase switching operation

• Non zero crossing type

• Provides electrical isolation between control and power circuits

• Suitable for triggering external power triacs

• Suitable for phase angle control

• DIP 6 through hole package

Specifications -

• Part Number: MOC3021

• Component Type: Optocoupler Triac Driver

• Input Type: Infrared LED

• Output Type: Photo Triac

• Switching Type: Random Phase

• Zero Crossing: No

• Package Type: DIP 6

• Number of Pins: 6

• Mounting Type: Through Hole

• Electrical Ratings: Refer to the exact manufacturer datasheet

Applications -

• AC load switching

• Light dimmer circuits

• Heater control circuits

• Motor speed controllers

• Solid state relays

• Triac triggering circuits

• Industrial control equipment

• AC power controllers

• Isolated microcontroller interfaces
