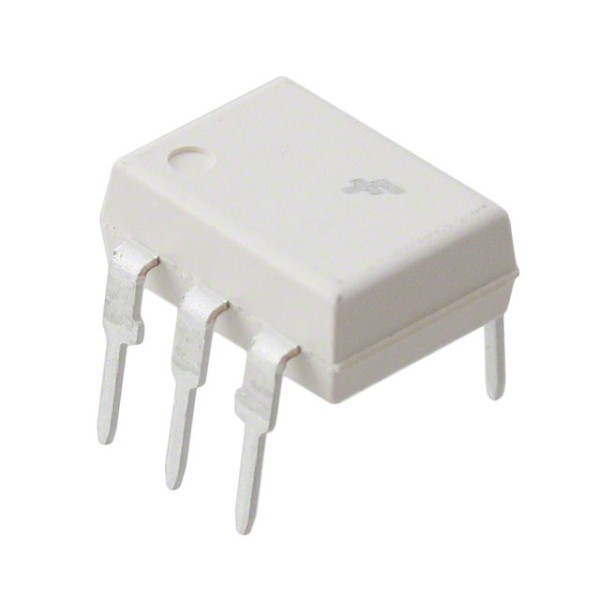

MOC3061 Zero Crossing Optocoupler Triac Driver IC (DIP 6 Package)

The MOC3061 is an optically isolated triac driver IC with built in zero crossing detection, designed to interface low voltage control circuits with AC power switching devices. It combines an infrared LED input with a photo triac output and provides electrical isolation between the control and AC power sections.

Key Features -

• Optically isolated triac driver

• Built in zero crossing detection

• Infrared LED input

• Photo triac output

• Provides electrical isolation between control and AC circuits

• Suitable for triggering external power triacs

• Helps reduce switching transients and electrical noise

• Suitable for AC load switching applications

• DIP 6 through hole package

Specifications -

• Part Number: MOC3061

• Component Type: Optocoupler Triac Driver

• Input Type: Infrared LED

• Output Type: Photo Triac

• Switching Type: Zero Crossing

• Zero Crossing: Yes

• Package Type: DIP 6

• Number of Pins: 6

• Mounting Type: Through Hole

• Electrical Ratings: Refer to the exact manufacturer datasheet

Applications -

• AC load switching

• Solid state relays

• Heater control circuits

• Lighting control systems

• Industrial control equipment

• Appliance control circuits

• AC power controllers

• Triac triggering circuits

• Isolated microcontroller interfaces
