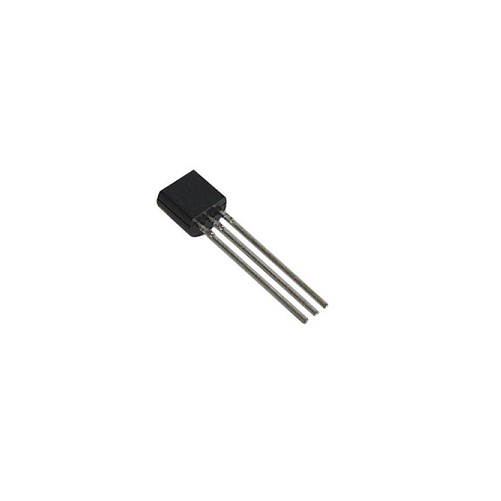

MPSA42 NPN High-Voltage Transistor TO-92 Package
TRD-136
NPN silicon high-voltage transistor
Collector-emitter voltage (VCEO): 300 V
Collector-base voltage (VCBO): 300 V
Emitter-base voltage (VEBO): 6 V
Continuous collector current (IC): 500 mA
Total power dissipation: 625 mW @ Ta = 25 °C,
Transition frequency (fT): 50 MHz
TO-92 through-hole package
| Weight | 0.19 g |
|---|
