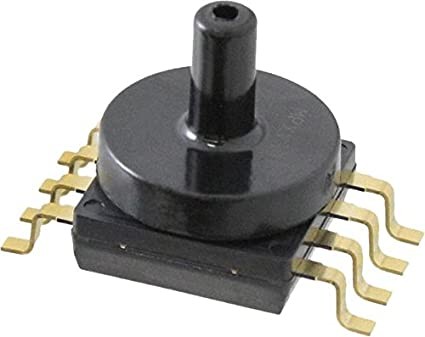

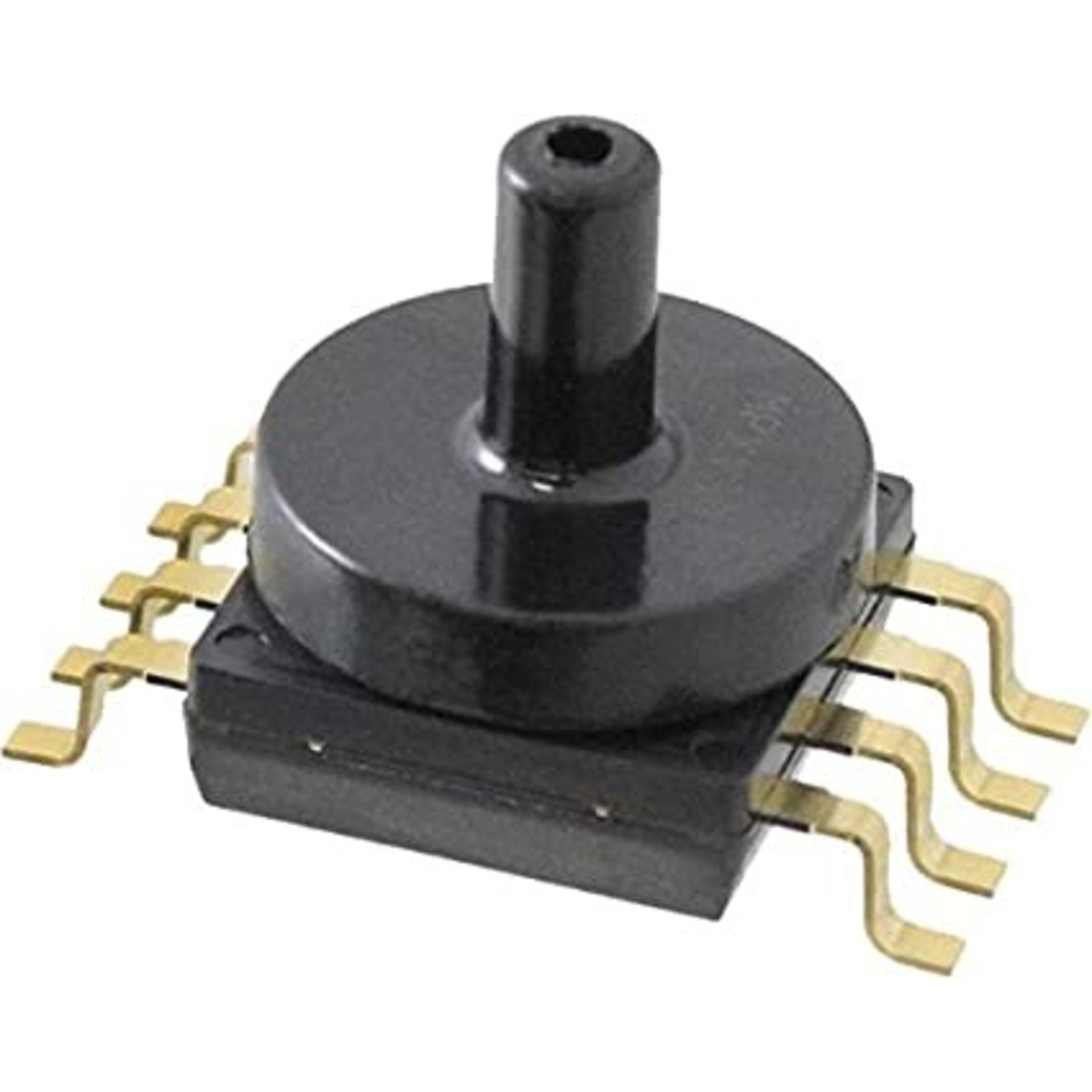

MPXV10GC6 Pressure Sensor IC SMD SOIC8 1.45PSI (MPXV10GC6 Pressure Sensor)
The MPXV10GC6 Pressure Sensor IC SMD SOIC8 1.45PSI is a high precision silicon piezoresistive pressure sensor designed for accurate gauge pressure measurement. It converts applied pressure into a proportional analog voltage output, ensuring reliable sensing performance. Built in a compact SOIC8 SMD package with a ported design, it offers stable operation and fast response in modern electronic systems.
The MPXV10GC6 pressure sensor is widely used in India for industrial electronics, embedded systems, medical devices, and automation applications. It is valued for its linear output, high sensitivity, and consistent performance in low pressure measurement environments.
Key Features
- High Accuracy Pressure Sensing: Precise low pressure measurement
- Silicon Piezoresistive Technology: Stable and linear output
- Analog Voltage Output: Easy interface with microcontrollers
- Low Pressure Range: Suitable up to 1.45PSI
- Fast Response Time: Quick pressure detection
- SMD SOIC8 Package: Compact and reliable PCB mounting
Specifications
- Sensor Type: Piezoresistive pressure sensor
- Pressure Type: Gauge pressure
- Pressure Range: 0 to 10kPa approx 1.45PSI
- Output Type: Analog voltage output
- Output Range: 0mV to 35mV typical
- Operating Voltage: Around 3V to 6V
- Accuracy: High precision measurement
- Operating Temperature: -40 to +125 degree C
- Package Type: SOIC 8 SMD
- Mounting Type: Surface Mount
- Applications: Pressure monitoring medical devices industrial electronics embedded systems pneumatic control systems
Pinout Configuration SOIC8 Layout
- Pressure port interface
- Signal output pins
- VCC supply pin
- GND ground pin
- Additional pins for signal conditioning and reference
