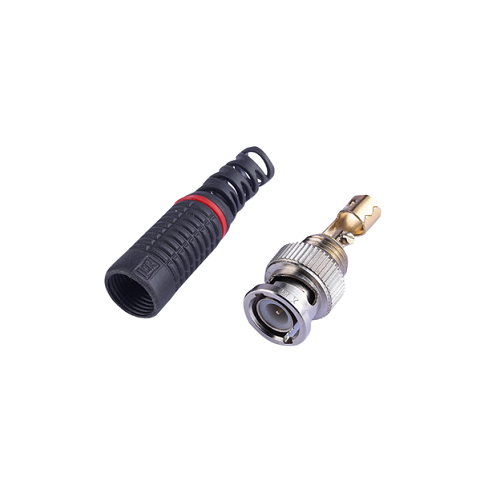

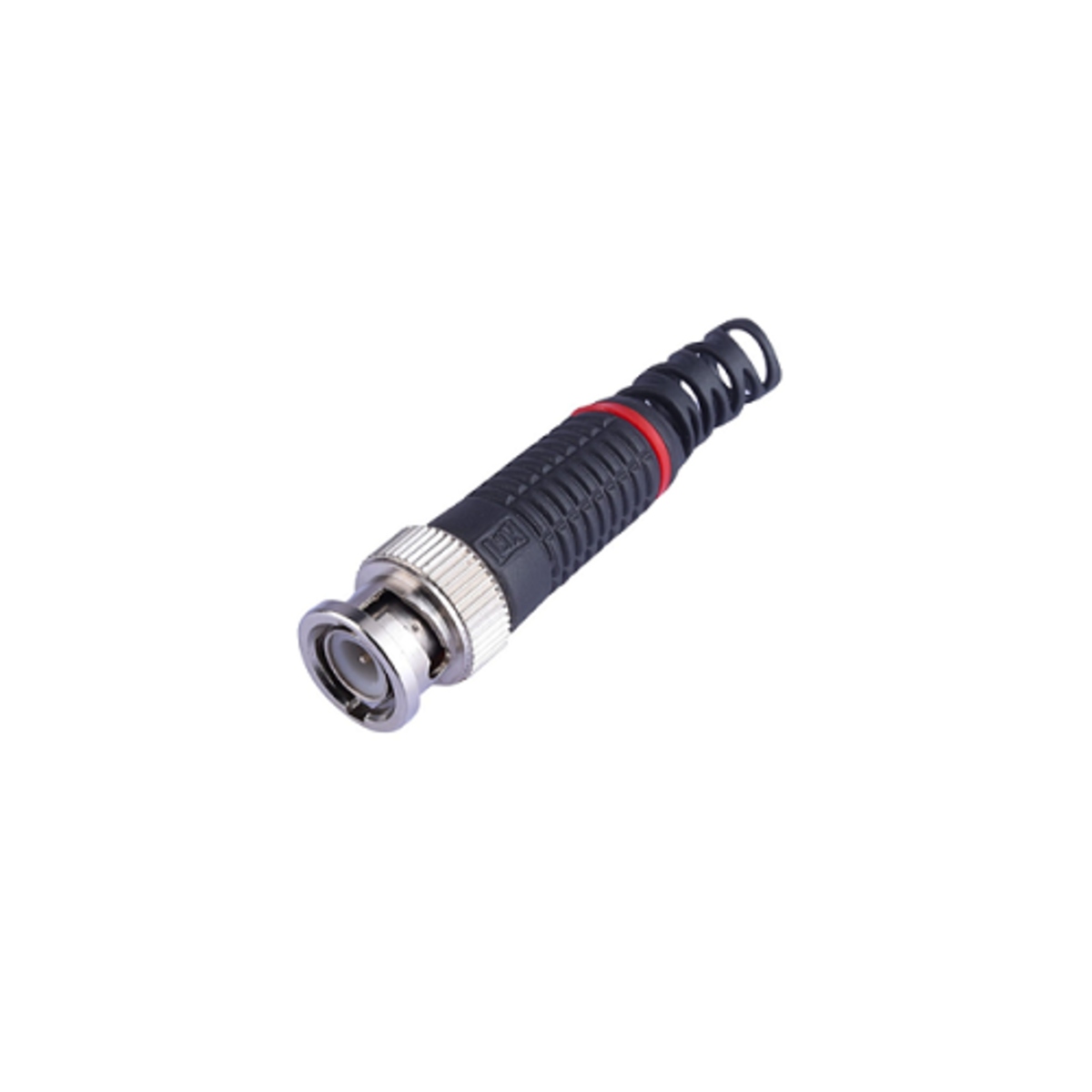

MX 158 BNC Male Connector (Gold-Plated Contacts, Coaxial RF Connector)

The MX 158 BNC Male Connector is a coaxial connector designed for reliable signal connections in electronic test equipment, communication systems, and instrumentation applications. Featuring gold-plated contacts, it is designed to provide electrical connectivity with compatible BNC female connectors. Its bayonet coupling mechanism allows quick connection and disconnection while maintaining a secure mechanical fit.

Key Features -

• MX 158 BNC male connector

• Gold-plated contacts as specified

• Bayonet-style coupling for quick connection

• Designed for compatible BNC female interfaces

• Suitable for coaxial signal connections

• Compact design for electronic equipment and test setups

• Useful for cable assembly and connector replacement

Specifications -

• Brand: MX

• Model: 158

• Product Type: BNC Male Connector

• Connector Type: BNC Coaxial

• Gender: Male

• Contact Finish: Gold-Plated

• Coupling Mechanism: Bayonet Locking

• Connection Type: Coaxial Signal

• Cable Termination: Verify manufacturer specification

• Characteristic Impedance: Verify exact model specification

• Frequency Range: Verify manufacturer datasheet

• Rated Voltage: Verify manufacturer datasheet

• Mounting Style: Verify exact model specification

Applications -

• Electronic test and measurement equipment

• Oscilloscopes and signal generators, where compatible

• RF and communication equipment

• Video signal connections

• Laboratory instrumentation

• Coaxial cable assemblies

• Electronics testing and development
