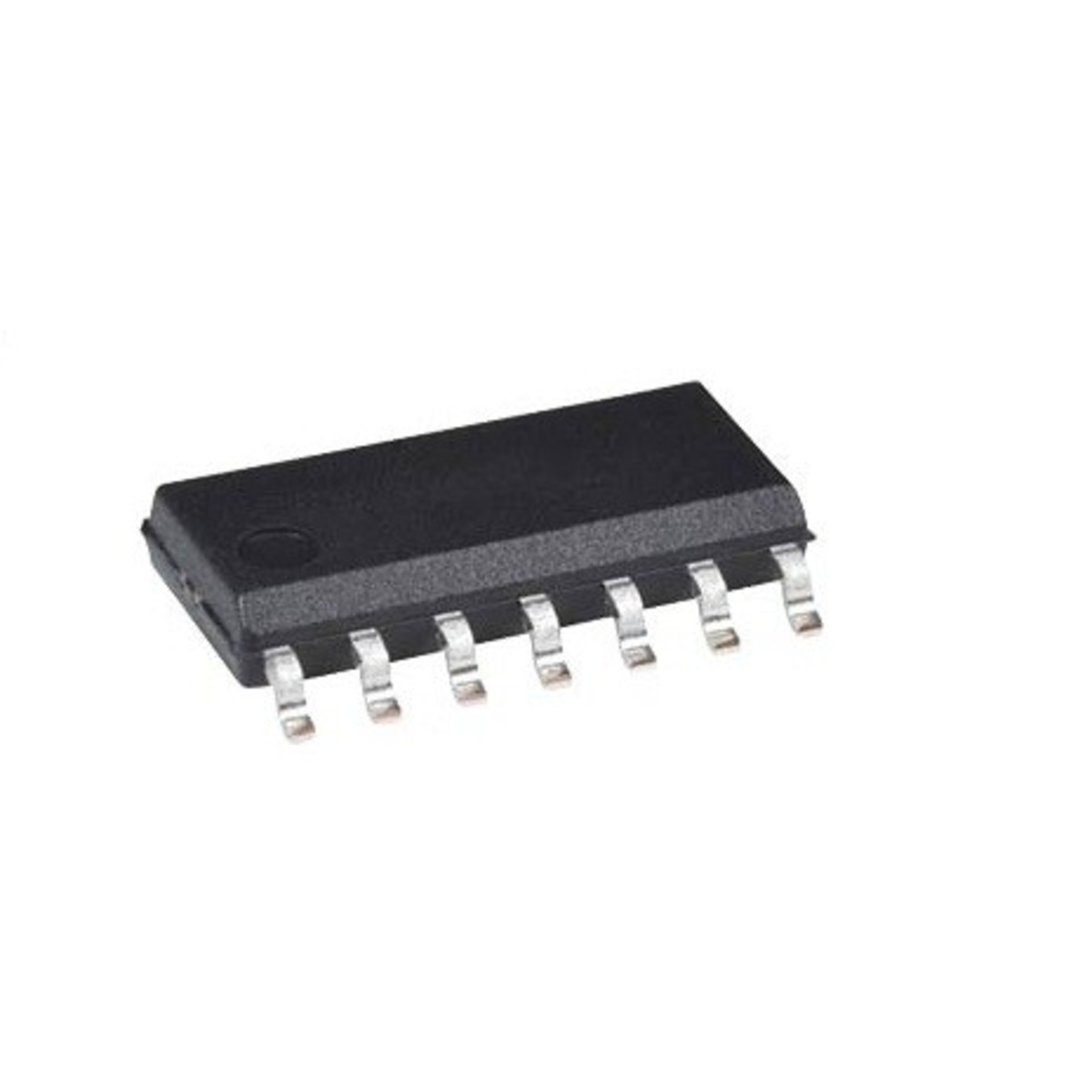

NE556 Dual Timer IC SOIC-14 Precision Timing and Oscillator IC (NE556 SMD IC)

The NE556 is a dual timer IC that combines two independent 555 timer circuits in a single SOIC-14 package. It is designed for precise timing, pulse generation, oscillation, delay circuits, frequency generation, and waveform generation applications. The IC is widely used in industrial electronics, embedded systems, automation equipment, consumer electronics, and educational projects.

Key Features -

• Dual 555 timer circuits in one package

• Precision timing operation

• Monostable and astable modes

• Adjustable pulse width and frequency

• Wide operating voltage range

• High output drive capability

• Low timing drift

• Compact SOIC-14 package

• Reliable and stable performance

• Easy integration into electronic circuits

Specifications -

• Product type - Dual Timer IC

• Model - NE556

• Timer configuration - Dual 555 Timer

• Package type - SOIC-14

• Pin count - 14 Pin

• Operating voltage - 4.5V to 16V DC

• Output type - Digital Pulse Output

• Timing mode - Monostable and Astable

• Mounting type - Surface Mount

• Technology - Bipolar Timer IC

Applications -

• Timer circuits

• Pulse generation

• Frequency generation

• Oscillator circuits

• LED flashers

• PWM control circuits

• Delay timers

• Embedded electronics projects
