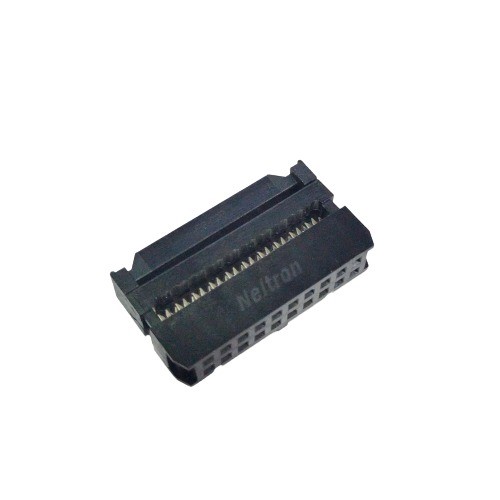

Neltron 20 Pin FRC IDC Female Connector (10x2 Pin, 2.54mm Pitch, Ribbon Cable)

The Neltron 20 Pin FRC IDC Female Connector is a dual-row ribbon cable connector designed for reliable signal connections in electronic circuits, embedded systems and industrial equipment. Featuring a 10x2 pin configuration with standard 2.54mm pitch, this connector supports convenient termination of compatible 20-conductor flat ribbon cables. Its Insulation Displacement Contact (IDC) design allows electrical connections to be made without individually stripping each wire. The compact insulated housing and metal contacts make it suitable for PCB interfacing, microcontroller connections, industrial control systems and electronic equipment assembly.

Key Features -

• Neltron make FRC IDC female connector

• 20 pin female connector configuration

• Dual-row 10x2 contact arrangement

• Standard 2.54mm contact pitch

• Compatible with suitable 20-conductor flat ribbon cables

• IDC termination for convenient cable assembly

• No individual wire stripping required

• Compact insulated plastic housing

• Metal alloy electrical contacts

• Suitable for multi-signal cable connections

• Designed for mating with compatible 2.54mm male headers

• Suitable for electronics and industrial applications

• Cable-mounted connector design

• Reliable electrical connections when correctly assembled

Specifications -

• Brand: Neltron

• Product Type: FRC IDC Female Connector

• Connector Type: IDC Ribbon Cable Socket

• Gender: Female

• Number of Contacts: 20

• Pin Configuration: 10x2

• Number of Rows: 2

• Contacts Per Row: 10

• Contact Pitch: 2.54mm

• Row Spacing: 2.54mm Nominal

• Cable Type: Flat Ribbon Cable

• Compatible Cable Conductors: 20

• Typical Ribbon Cable Conductor Pitch: 1.27mm

• Termination Method: Insulation Displacement Contact

• Mounting Type: Cable Mount

• Contact Material: Metal Alloy

• Housing Material: Insulated Plastic

• Mating Connector: Compatible 20 Pin 2.54mm Male Header

• Application: Electronic Signal and Ribbon Cable Connections

Applications -

• Flat ribbon cable interfacing

• Embedded system connections

• Microcontroller development boards

• Industrial control electronics

• PCB communication interfaces

• Electronic equipment assembly

• Digital signal connections

• Industrial automation equipment

• Electronic testing equipment

• DIY electronics projects

• Prototype development

• Internal equipment wiring

• Data and control signal connections
