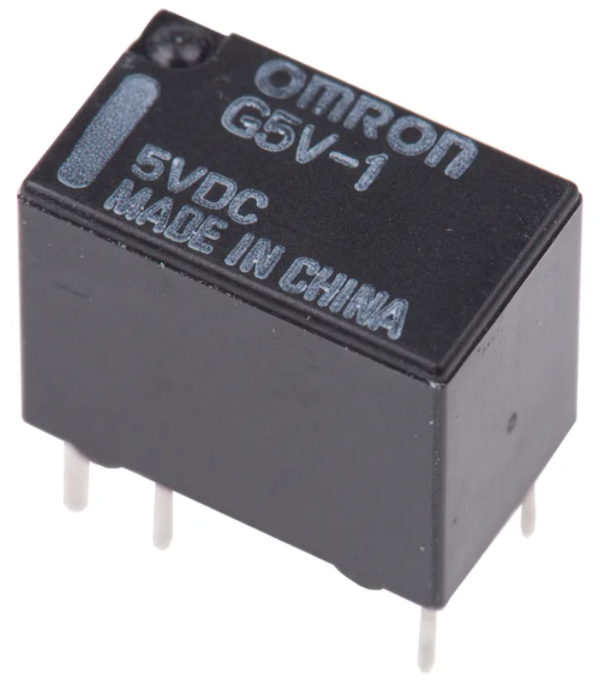

Omron G5V-1 DC5V Signal Relay (5V DC Coil, SPDT Contacts)

The Omron G5V-1 DC5V is a compact signal relay designed for low level signal switching in electronic circuits and communication equipment. It operates with a 5V DC coil and uses a single pole double throw contact configuration, allowing a circuit to switch between normally open and normally closed paths. Its compact design makes it suitable for printed circuit board mounting in control and instrumentation applications.

Key Features -

• 5V DC coil voltage

• Single pole double throw (SPDT) contact configuration

• Compact printed circuit board mounting design

• Suitable for low level signal switching

• Electromagnetic isolation between the coil and contact circuits

• Designed for electronic equipment and communication applications

Specifications -

• Brand: Omron

• Model: G5V-1

• Component Type: Signal Relay

• Coil Voltage: 5V DC

• Contact Configuration: SPDT, 1 Form C

• Mounting Type: Printed Circuit Board (PCB) Mount

• Contact Ratings: Refer to the exact manufacturer datasheet for load type and operating conditions

Applications -

• Electronic signal switching

• Communication equipment

• Measurement and instrumentation systems

• Microcontroller based control circuits

• Electronic test equipment

• Interface and signal routing circuits
