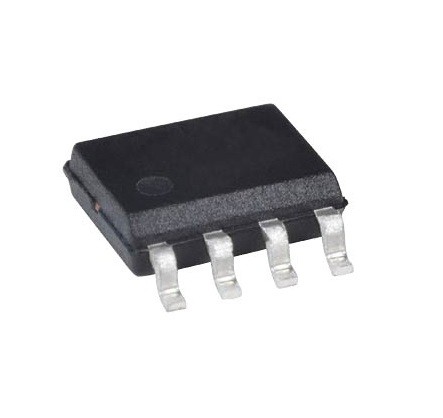

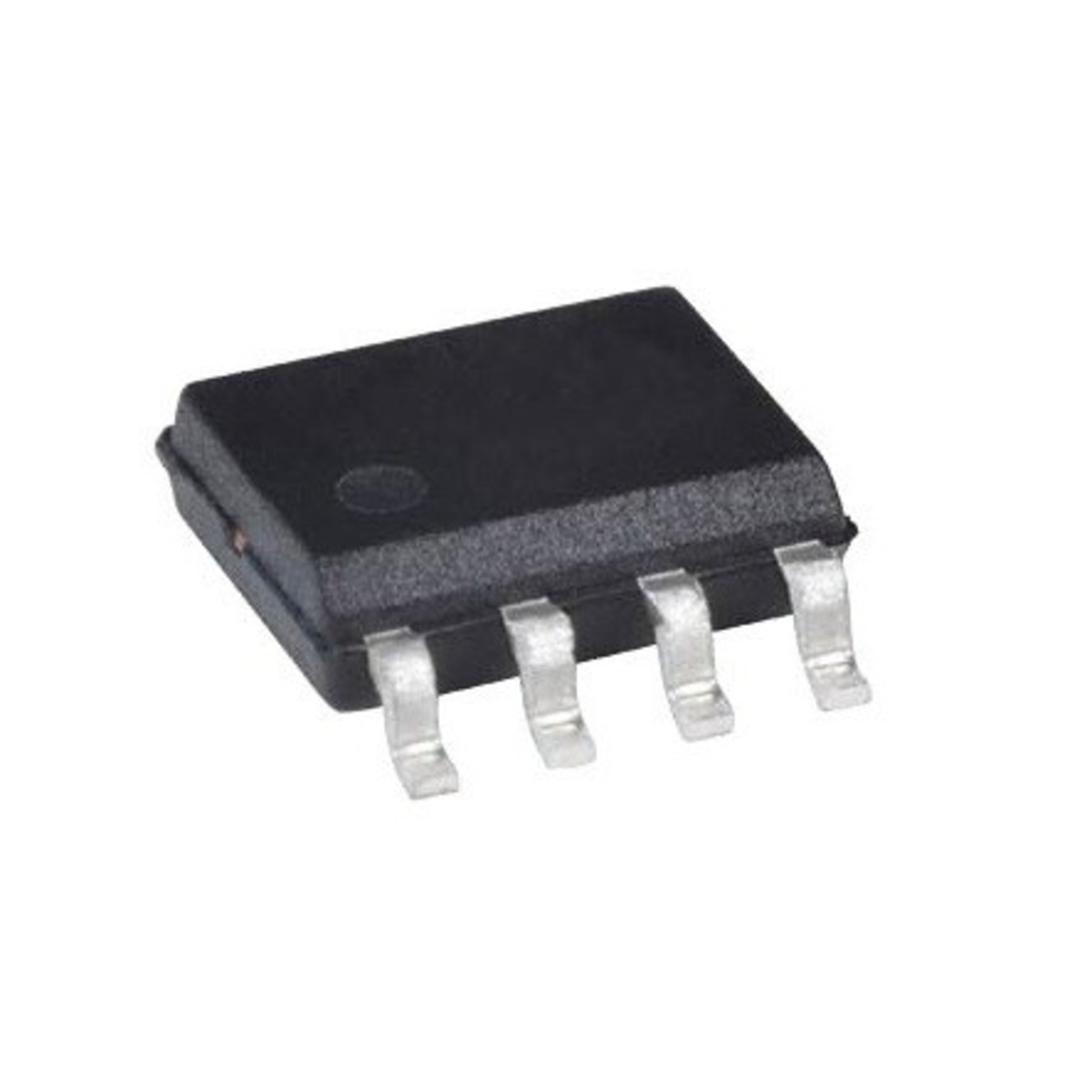

OP177 SOIC-8 Precision Operational Amplifier IC (OP177)
The OP177 is a precision operational amplifier IC designed for low offset voltage, low drift, and high accuracy analog signal processing applications. It provides stable performance with low noise characteristics, making it suitable for instrumentation systems, sensor signal conditioning, active filters, and precision measurement circuits.
Key Features -
- Precision operational amplifier IC
- Low offset voltage and low drift performance
- High accuracy analog signal amplification
- SOIC-8 surface mount package
- Low noise operation
Specifications -
- IC type / Product type - Precision Operational Amplifier IC
- Logic family / Component type - Linear Analog IC
- Package type - SOIC-8 SMD IC
- Supply voltage - Approx +/-3V to +/-20V DC
- Input voltage - Differential analog input
- Output voltage - Precision amplified analog output
- Current rating - Low power analog operation
- Frequency / propagation delay - Approx 600kHz gain bandwidth product
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Low input offset voltage, low temperature drift, low bias current, high open loop gain, excellent long term stability
Applications -
- Precision instrumentation systems
- Sensor signal conditioning circuits
- Data acquisition equipment
- Active filter circuits
- Industrial measurement systems
Pinout Configuration -
- Pin 1 - Offset null pin
- Pin 2 - Inverting input
- Pin 3 - Non-inverting input
- Additional pins - Output pin, positive supply pin, negative supply pin, offset adjustment pin
