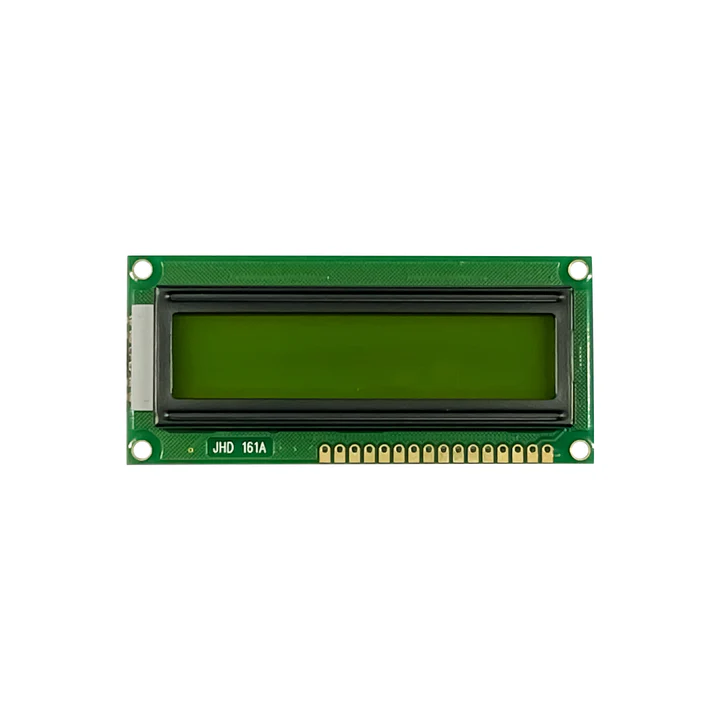

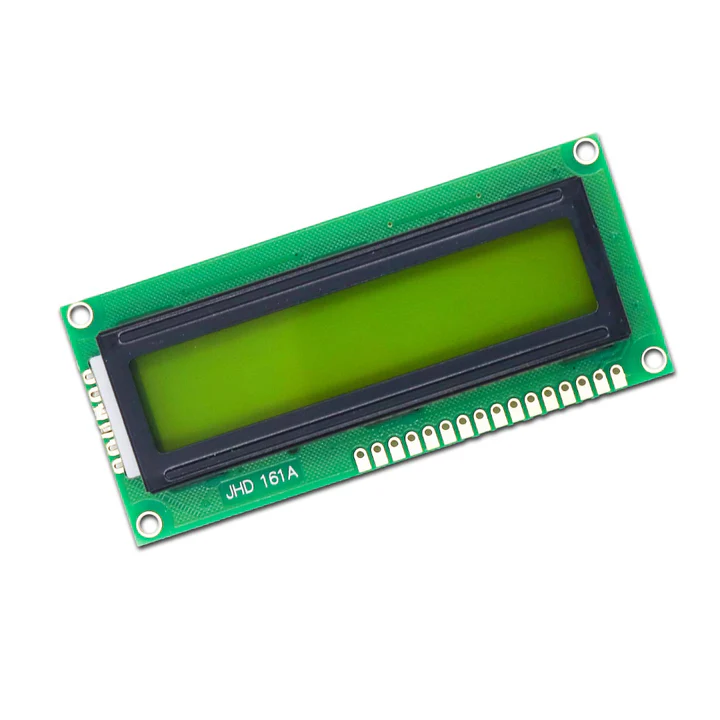

Original JHD 16x1 Character LCD Display With Green Backlight
The JHD 16x1 character LCD display is a compact alphanumeric display module designed for simple visual output in microcontroller based electronics projects. It can display up to 16 characters in a single row making it suitable for showing sensor readings system status messages or numeric values in embedded systems.
This display features a high contrast STN green negative LCD with white characters on a green background for clear readability. It uses the SPLC780D controller and supports standard parallel interface communication allowing easy connection with Arduino and other microcontrollers. The built in green LED backlight improves visibility and can be adjusted using a resistor or PWM control.
Key Features
- 16 character by 1 line LCD display
- High contrast white text on green background
- Green LED backlight for improved readability
- Compatible with Arduino and other microcontrollers
- Parallel interface for easy integration
- Can be controlled using 6 digital lines
- Compact display suitable for embedded systems
Specifications
- Product Type = Character LCD display
- Model Type = JHD LCD
- Display Format = 16 x 1 characters
- Controller = SPLC780D
- Backlight Color = Green
- LCD Type = STN green negative
- Character Size = 3.20 x 6.35 mm
- Viewing Area = 64.5 x 14.5 mm
- Length = 80 mm
- Width = 36 mm
- Height = 14.5 mm
- Weight = 32 g

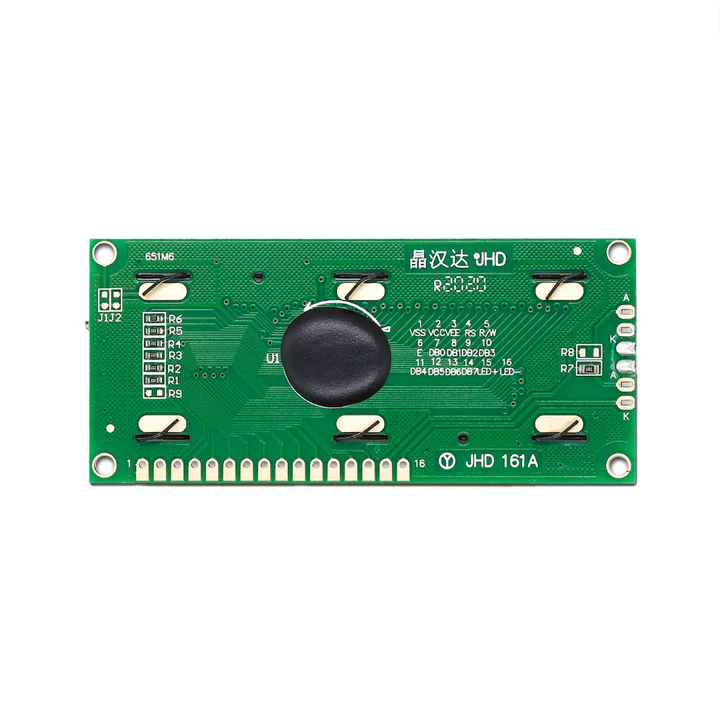

Interfaces
- VSS = Ground
- VDD = Power supply
- VO = Contrast adjustment
- RS = Register select
- RW = Read write control
- E = Enable signal
- D0 = Data bit 0
- D1 = Data bit 1
- D2 = Data bit 2
- D3 = Data bit 3
- D4 = Data bit 4
- D5 = Data bit 5
- D6 = Data bit 6
- D7 = Data bit 7
- A = Backlight anode
- K = Backlight cathode
