P6KE10CA TVS Diode 600W 10V (Bidirectional Transient Voltage Suppressor ESD Protection Diode)

The P6KE10CA is a high-power bidirectional TVS (Transient Voltage Suppressor) diode designed to protect sensitive electronic circuits from ESD (Electrostatic Discharge), lightning surges, and other transient overvoltage events. With a 600W peak pulse power rating and a working standoff voltage of 8.55V, it provides fast bidirectional clamping to protect communication lines, AC and DC power circuits, industrial equipment, automotive electronics, and other sensitive electronic devices from voltage spikes.

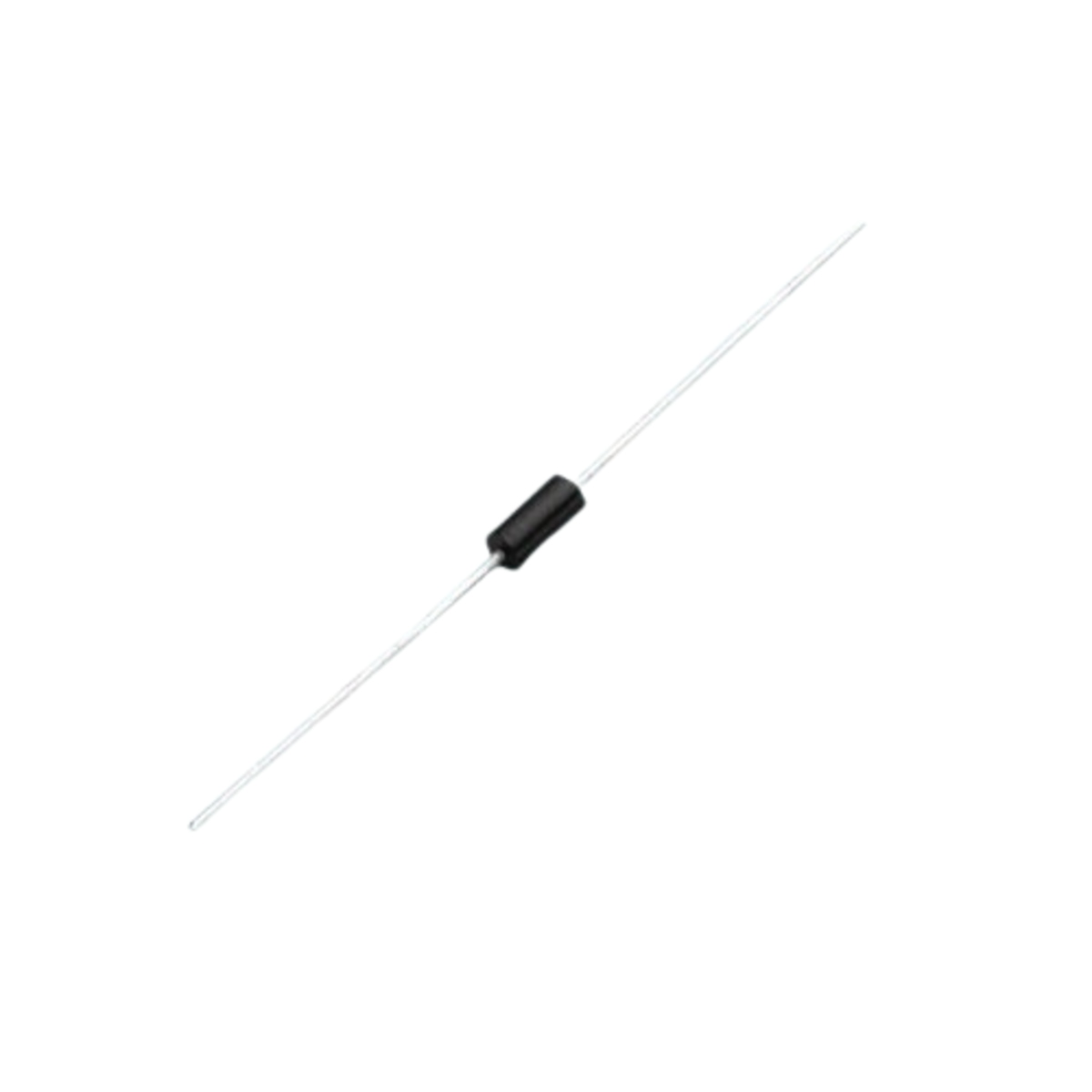

Packaged in a DO-15 through-hole package, the P6KE10CA offers low leakage current, excellent surge handling capability, and reliable protection against both positive and negative transient voltages.

Key Features -

• Bidirectional TVS protection diode

• 600W peak pulse power capability

• Working standoff voltage of 8.55V

• Breakdown voltage from 9.5V to 10.5V

• Maximum clamping voltage of 14.5V

• Fast response to transient voltage spikes

• Low leakage current

• DO-15 through-hole package

• Reliable ESD and surge protection

Specifications -

• Product Type: TVS Diode

• Model: P6KE10CA

• Diode Type: Bidirectional Transient Voltage Suppressor

• Package: DO-15 (DO-204AC)

• Mounting Type: Through Hole

• Peak Pulse Power: 600W (10/1000 us Waveform)

• Working Standoff Voltage: 8.55V

• Breakdown Voltage: 9.5V to 10.5V

• Maximum Clamping Voltage: 14.5V

• Peak Pulse Current: 41A Approx.

Applications -

• ESD protection circuits

• AC and DC power line protection

• Communication interfaces

• Industrial control systems

• Automotive electronics

• Sensor interfaces

• Power supply protection

• Embedded systems

• Consumer electronic devices
