P6KE18A TVS Diode 600W 18V (Unidirectional Transient Voltage Suppressor ESD Protection Diode)




Collect upto 7:30 PM (Mon – Sat)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)

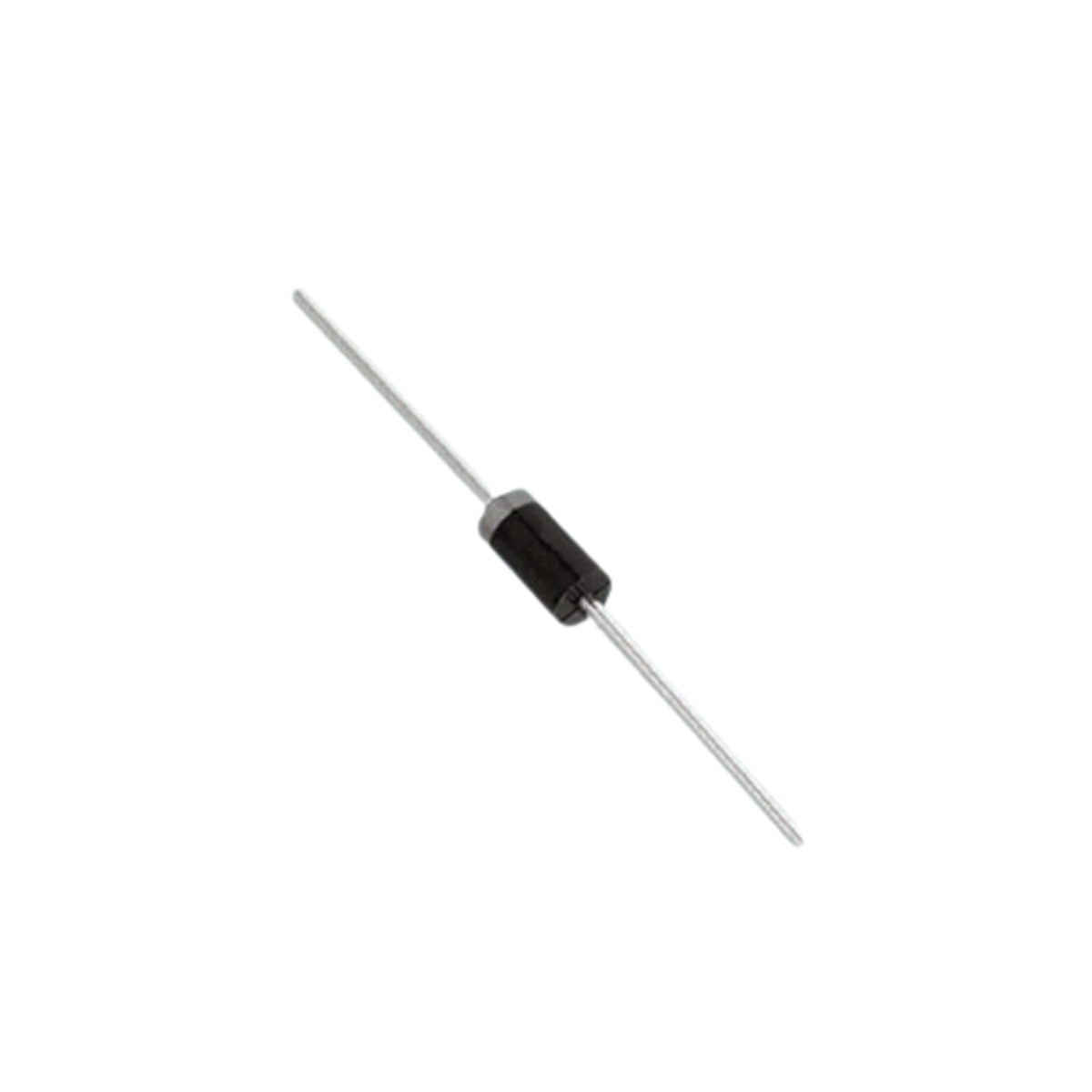

P6KE18A TVS Diode 600W 18V (Unidirectional Transient Voltage Suppressor ESD Protection Diode)
The P6KE18A is a high-power unidirectional TVS (Transient Voltage Suppressor) diode designed to protect sensitive electronic circuits from ESD (Electrostatic Discharge), lightning surges, and other transient overvoltage events. With a 600W peak pulse power rating and a working standoff voltage of 15.3V, it provides fast clamping action to protect power supplies, communication equipment, automotive electronics, industrial control systems, MOSFETs, and integrated circuits from damaging voltage spikes.
Packaged in a DO-15 through-hole package, the P6KE18A offers low leakage current, high surge handling capability, and reliable long-term protection for a wide range of electronic applications.
Key Features
• Unidirectional TVS protection diode
• 600W peak pulse power capability
• Working standoff voltage of 15.3V
• Breakdown voltage from 17.1V to 18.9V
• Maximum clamping voltage of 25.2V
• Fast response to transient voltage spikes
• Low leakage current
• DO-15 through-hole package
• Reliable ESD and surge protection
