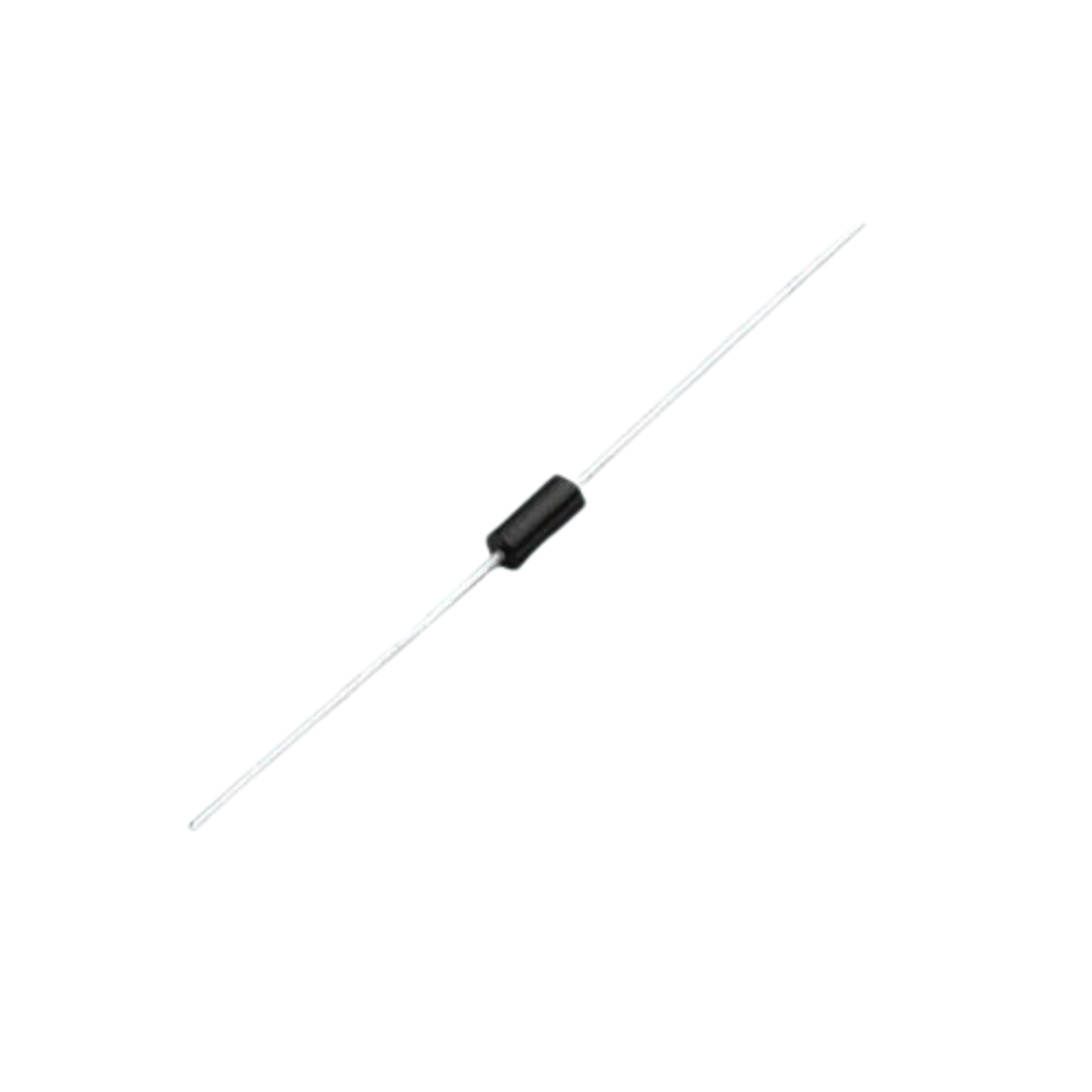

P6KE30CA TVS Diode 600W 30V (Bidirectional Transient Voltage Suppressor ESD Protection Diode)

The P6KE30CA is a high-power bidirectional TVS (Transient Voltage Suppressor) diode designed to protect sensitive electronic circuits from electrostatic discharge (ESD), lightning-induced surges, and other transient overvoltage events. Featuring a 600W peak pulse power rating and a working standoff voltage of 25.6V, it provides fast bidirectional clamping for AC and DC circuits, communication interfaces, automotive electronics, industrial equipment, and embedded systems.

Housed in a DO-15 through-hole package, the P6KE30CA offers low leakage current, excellent surge handling capability, and reliable protection against both positive and negative voltage transients.

Key Features -

• Bidirectional TVS protection diode

• 600W peak pulse power capability

• Working standoff voltage of 25.6V

• Breakdown voltage from 28.5V to 31.5V

• Maximum clamping voltage of 41.4V

• Fast response to voltage transients

• Low leakage current

• DO-15 through-hole package

• Reliable ESD and surge protection

Specifications -

• Product Type: TVS Diode

• Model: P6KE30CA

• Diode Type: Bidirectional Transient Voltage Suppressor

• Package: DO-15 (DO-204AC)

• Mounting Type: Through Hole

• Peak Pulse Power: 600W (10/1000 us Waveform)

• Working Standoff Voltage: 25.6V

• Breakdown Voltage: 28.5V to 31.5V

• Maximum Clamping Voltage: 41.4V

• Peak Pulse Current: Approx. 14.5A

Applications -

• ESD protection circuits

• AC and DC power line protection

• Communication interfaces

• Industrial control systems

• Automotive electronics

• Sensor interfaces

• Power supply protection

• Embedded systems

• Consumer electronic devices
