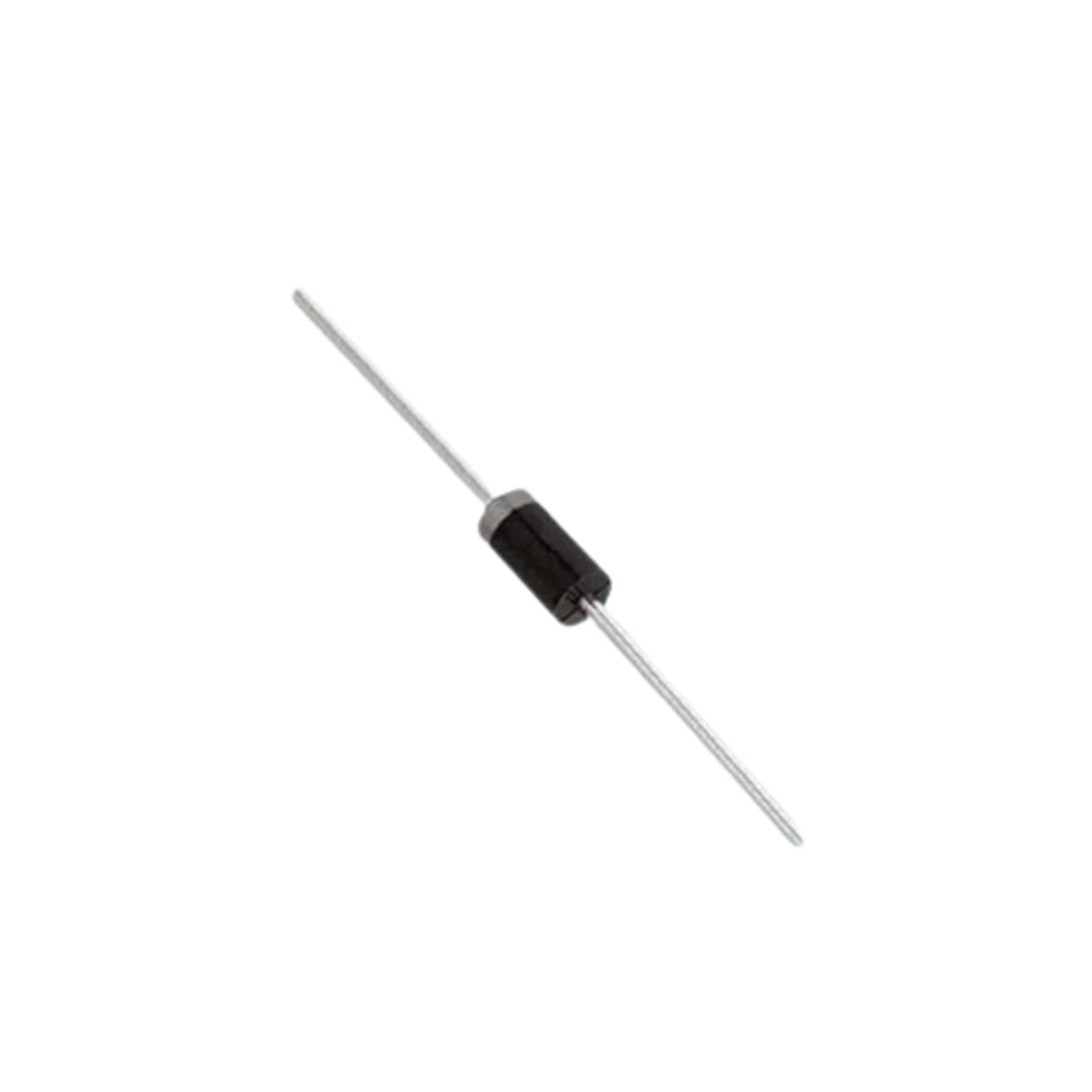

P6KE36A TVS Diode 600W 36V (Unidirectional Transient Voltage Suppressor ESD Protection Diode)

The P6KE36A is a high-power unidirectional TVS (Transient Voltage Suppressor) diode designed to protect sensitive electronic circuits from electrostatic discharge (ESD), lightning surges, and other transient overvoltage events. With a 600W peak pulse power rating and a working standoff voltage of 30.8V, it provides fast clamping action to safeguard power supplies, communication equipment, automotive electronics, industrial control systems, MOSFETs, and integrated circuits from damaging voltage spikes.

Packaged in a DO-15 through-hole package, the P6KE36A offers low leakage current, excellent surge handling capability, and reliable long-term protection for a wide range of electronic applications.

Key Features -

• Unidirectional TVS protection diode

• 600W peak pulse power capability

• Working standoff voltage of 30.8V

• Breakdown voltage from 34.2V to 37.8V

• Maximum clamping voltage of 49.9V

• Fast response to transient voltage spikes

• Low leakage current

• DO-15 through-hole package

• Reliable ESD and surge protection

Specifications -

• Product Type: TVS Diode

• Model: P6KE36A

• Diode Type: Unidirectional Transient Voltage Suppressor

• Package: DO-15 (DO-204AC)

• Mounting Type: Through Hole

• Peak Pulse Power: 600W (10/1000 us Waveform)

• Working Standoff Voltage: 30.8V

• Breakdown Voltage: 34.2V to 37.8V

• Maximum Clamping Voltage: 49.9V

• Peak Pulse Current: Approx. 12A

Applications -

• ESD protection circuits

• DC power supply protection

• Communication equipment

• Industrial control systems

• Automotive electronics

• MOSFET and IC protection

• Embedded systems

• Sensor interfaces

• Consumer electronic devices
