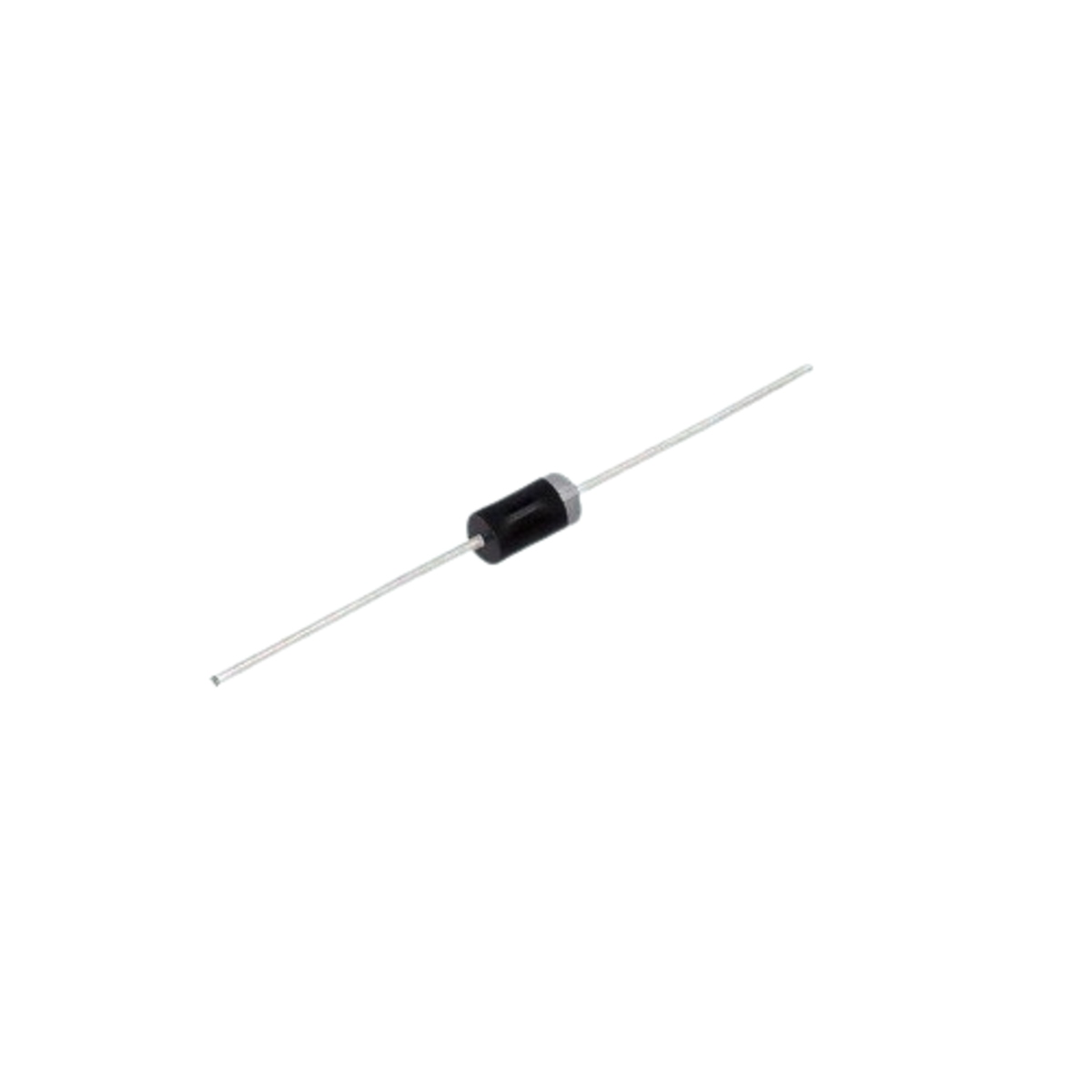

P6KE6.8A TVS Diode 600W 6.8V (Transient Voltage Suppressor ESD Protection Diode)

The P6KE6.8A is a high-power unidirectional TVS (Transient Voltage Suppressor) diode designed to protect sensitive electronic circuits from ESD (Electrostatic Discharge), lightning surges, and other transient overvoltage events. With a 600W peak pulse power rating and a working standoff voltage of 5.8V, it provides fast clamping action to safeguard integrated circuits, MOSFETs, communication lines, power supplies, and automotive electronics from voltage spikes.

Packaged in a DO-15 through-hole package, the P6KE6.8A offers reliable performance, low leakage current, and excellent surge handling capability for industrial and consumer electronic applications.

Key Features -

• Unidirectional TVS protection diode

• 600W peak pulse power capability

• Working standoff voltage of 5.8V

• Breakdown voltage of 6.45V minimum

• Maximum clamping voltage of 10.5V

• Fast response to transient voltage spikes

• Low leakage current

• DO-15 through-hole package

• Reliable ESD and surge protection

Specifications -

• Product Type: TVS Diode

• Model: P6KE6.8A

• Diode Type: Unidirectional Transient Voltage Suppressor

• Package: DO-15 (DO-204AC)

• Mounting Type: Through Hole

• Peak Pulse Power: 600W (10/1000 us Waveform)

• Working Standoff Voltage: 5.8V

• Breakdown Voltage: 6.45V Minimum

• Maximum Clamping Voltage: 10.5V

• Peak Pulse Current: 60A Approx.

Applications -

• ESD protection circuits

• Power supply protection

• Communication equipment

• Industrial control systems

• Automotive electronics

• MOSFET and IC protection

• Sensor interfaces

• Embedded systems

• Consumer electronic devices
