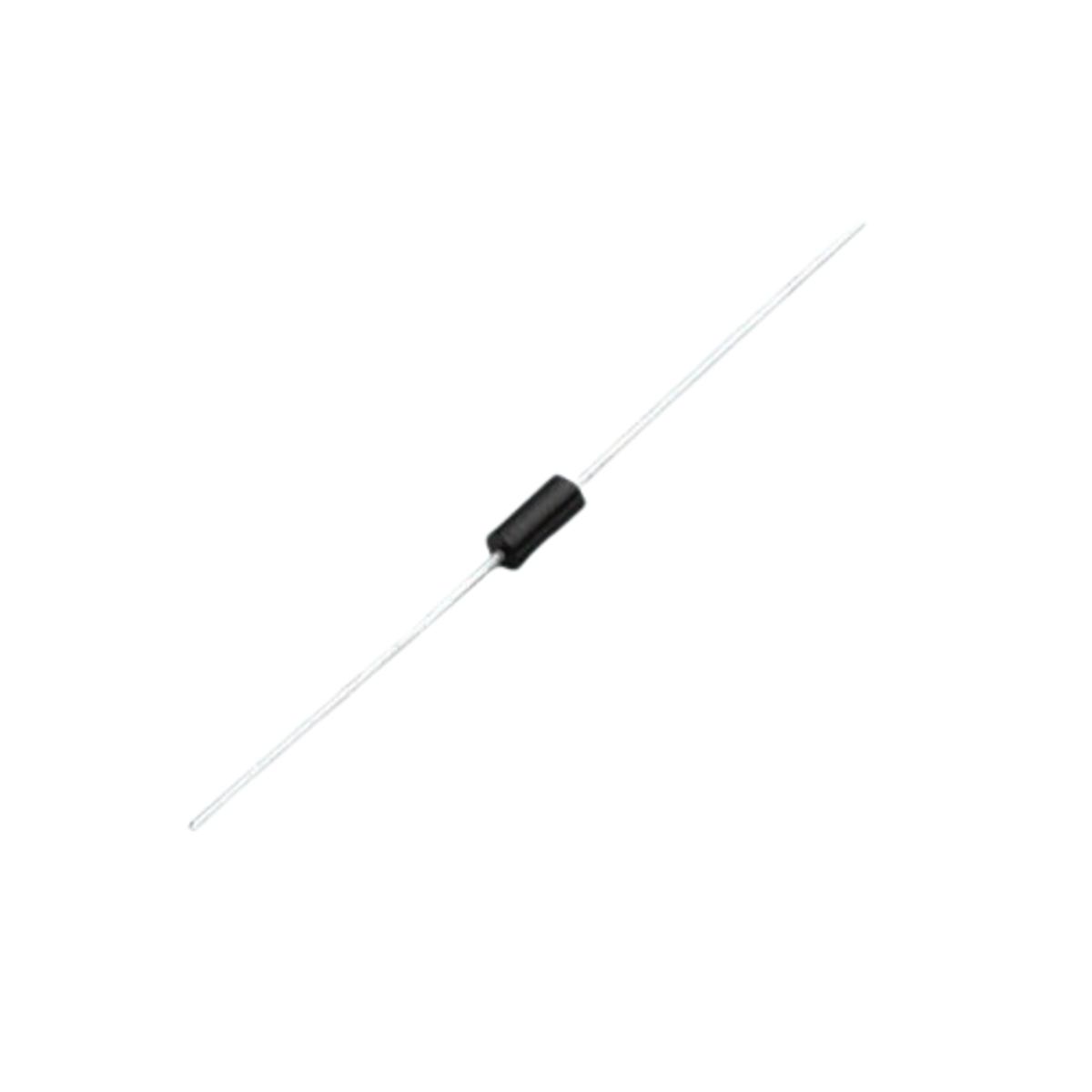

P6KE7.5CA TVS Diode 600W 7.5V (Bidirectional Transient Voltage Suppressor ESD Protection Diode)

The P6KE7.5CA is a high-power bidirectional TVS (Transient Voltage Suppressor) diode designed to protect sensitive electronic circuits from ESD (Electrostatic Discharge), lightning surges, and other transient overvoltage events. With a 600W peak pulse power rating and a working standoff voltage of 6.4V, it provides fast bidirectional clamping to protect communication lines, power supplies, industrial equipment, automotive electronics, and AC or bidirectional signal circuits.

Packaged in a DO-15 through-hole package, the P6KE7.5CA offers low leakage current, excellent surge handling capability, and reliable protection against both positive and negative voltage transients.

Key Features -

• Bidirectional TVS protection diode

• 600W peak pulse power capability

• Working standoff voltage of 6.4V

• Breakdown voltage from 7.13V to 7.88V

• Maximum clamping voltage of 11.3V

• Fast response to transient voltage spikes

• Low leakage current

• DO-15 through-hole package

• Reliable ESD and surge protection

Specifications -

• Product Type: TVS Diode

• Model: P6KE7.5CA

• Diode Type: Bidirectional Transient Voltage Suppressor

• Package: DO-15 (DO-204AC)

• Mounting Type: Through Hole

• Peak Pulse Power: 600W (10/1000 us Waveform)

• Working Standoff Voltage: 6.4V

• Breakdown Voltage: 7.13V to 7.88V

• Maximum Clamping Voltage: 11.3V

• Peak Pulse Current: 53A Approx.

Applications -

• ESD protection circuits

• AC power line protection

• Communication interfaces

• Industrial control systems

• Automotive electronics

• Sensor interfaces

• Power supply protection

• Embedded systems

• Consumer electronic devices
