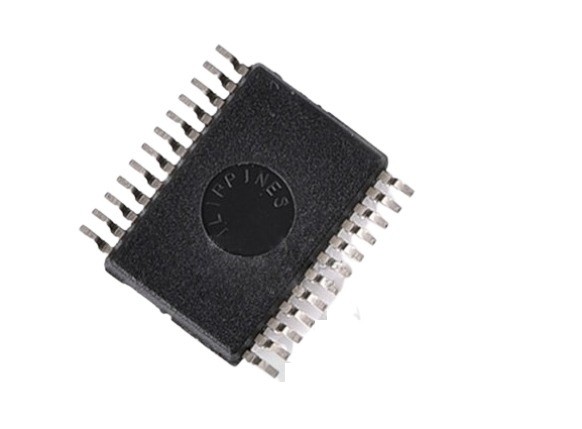

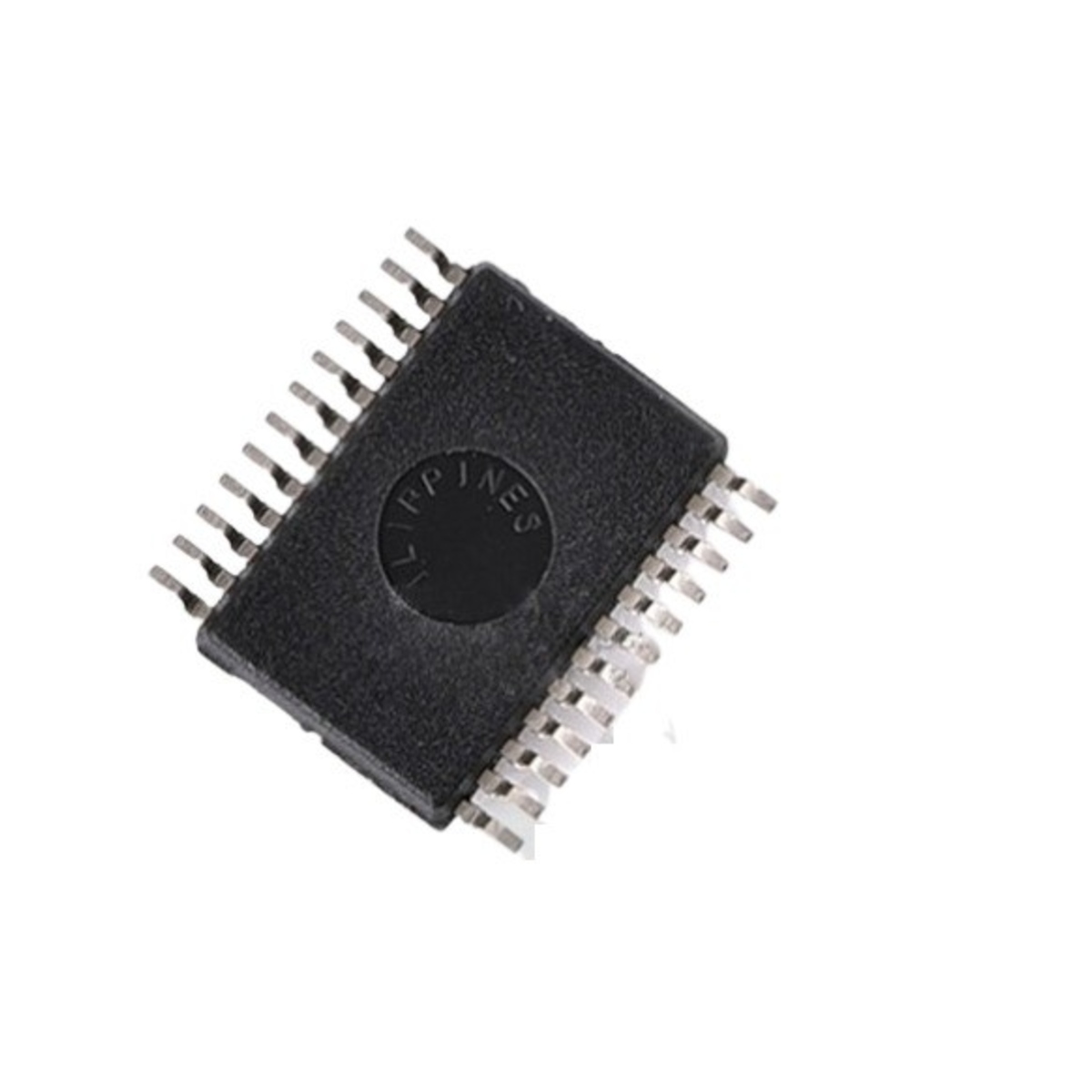

PCF8575TS 16-Bit I2C I/O Expander IC SSOP-24 (PCF8575TS GPIO Expander IC)

The PCF8575TS is a 16-bit I2C input/output expander IC designed to increase the number of digital I/O pins available to microcontrollers and embedded systems. It communicates through the I2C bus and provides 16 programmable bidirectional I/O lines, making it ideal for industrial control systems, keyboards, displays, automation equipment, and embedded applications.

Key Features -

• 16-bit programmable I/O expander

• I2C serial communication interface

• 16 bidirectional input/output pins

• Low power CMOS design

• Interrupt output for input change detection

• Multiple device addressing support

• Reduces microcontroller pin usage

• SSOP-24 surface mount package

Specifications -

• Product type - I/O Expander IC

• Model - PCF8575TS

• Interface type - I2C

• Number of I/O pins - 16

• I/O type - Bidirectional

• Interrupt output - Available

• Logic family - CMOS

• Package type - SSOP-24

• Mounting type - Surface Mount Device

• Operating voltage - 2.5V to 5.5V

Applications -

• Industrial automation systems

• LCD and display control

• Keypad and keyboard interfaces

• Embedded systems

• Home automation devices

• Data acquisition equipment

• Microcontroller expansion projects

• Control and monitoring systems
