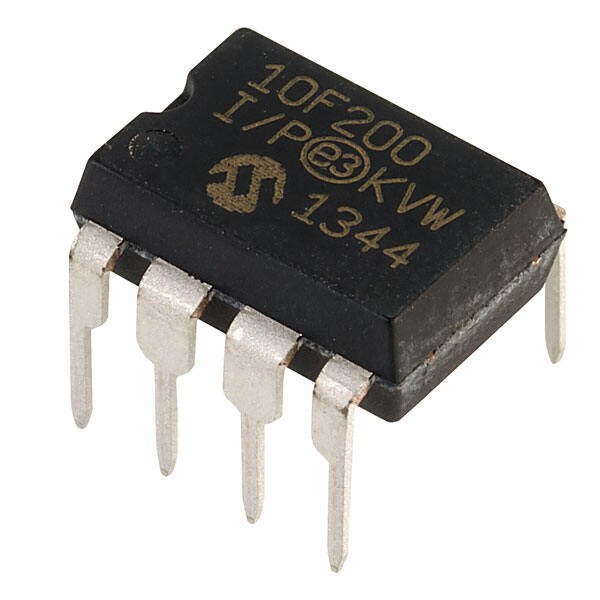

PIC10F200-I/P 8-Bit Flash Microcontroller DIP-8 (PIC10F200-I/P DIP IC)
The PIC10F200-I/P is one of the smallest and most cost-effective 8-bit microcontrollers available in a 8-pin DIP package. It is based on a high-performance RISC CPU and features an extremely simple architecture with only 33 single-word instructions. This IC includes 256 words of Flash program memory and 16 bytes of RAM. It is designed for applications requiring minimal board space and low power consumption, making it an ideal choice for basic timing, logic replacement, and simple state machines where a full-sized microcontroller would be overkill.
This IC is primarily used in low-cost consumer electronics, pulse width modulation (PWM) tasks, and simple sensor interfacing. It is a popular component for Arduino electronics projects in India for building tiny DIY gadgets, LED blinkers, power-on delay circuits, and learning assembly language programming on a minimalist platform.
Key Features
- High-performance RISC CPU with 33 instructions
- Internal 4MHz RC oscillator (precision calibrated)
- In-Circuit Serial Programming (ICSP) support
- Wide operating voltage range (2.0V to 5.5V)
- Extremely low power consumption (under 1uA standby at 2V)
- 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler
- Watchdog Timer (WDT) with independent on-chip RC oscillator
- High current source/sink for direct LED drive
Specifications
- IC Type = 8-Bit Flash Microcontroller
- Program Memory = 256 Words (384 Bytes)
- Data RAM = 16 Bytes
- Speed = 4MHz (Internal Oscillator)
- I/O Pins = 4 (3 I/O, 1 Input-only)
- Supply Voltage = 2.0V to 5.5V
- Current Sink/Source = 25mA
- Package Type = PDIP-8
- Number of Pins = 8
- Mounting Type = Through-Hole
- Operating Temperature = -40 to 85 degrees Celsius
Interfaces
- PIN 1 (GP2/T0CKI/FOSC4) = General Purpose I/O / Timer Clock Input
- PIN 2 (VDD) = Positive Supply Voltage (2.0V-5.5V)
- PIN 3 (GP3/MCLR/VPP) = Input Only / Master Clear / Programming Voltage
- PIN 4 (GP0/ICSPDAT) = General Purpose I/O / Programming Data
- PIN 5 (GP1/ICSPCLK) = General Purpose I/O / Programming Clock
- PIN 7 (VSS) = Ground (0V)
- PIN 6, 8 (NC) = No Connection
