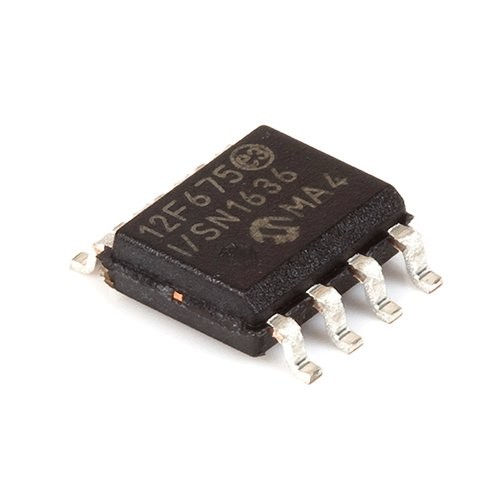

PIC12F675-I/SN SOIC-8 8-Bit Microcontroller IC with 1KB Flash Memory (PIC12F675-I/SN)
The PIC12F675-I/SN is an 8-bit microcontroller IC designed for embedded control, automation, sensor interfacing, and compact electronic applications. It features onboard Flash memory, an internal oscillator, ADC functionality, and programmable GPIO pins in a compact SOIC-8 package, making it suitable for low power and space constrained embedded system designs.
Key Features -
- 8-bit microcontroller IC
- Internal oscillator support
- Integrated ADC functionality
- SOIC-8 surface mount package
- Low power embedded operation
Specifications -
- IC type / Product type - 8-Bit Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - SOIC-8 SMD IC
- Supply voltage - Approx 2V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power microcontroller operation
- Frequency / propagation delay - Internal oscillator frequency up to approx 4MHz
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - 1KB Flash memory, EEPROM support, ADC channels, timers, comparator module, watchdog timer support, programmable GPIO pins
Applications -
- Embedded control systems
- Sensor interfacing circuits
- Industrial automation projects
- Consumer electronic devices
- Low power embedded applications
Pinout Configuration -
- Pin 1 - Power supply pin
- Pin 2 - GPIO or analog input pin
- Pin 3 - GPIO or communication function pin
- Additional pins - Reset pin, oscillator function pins, programmable GPIO pins, ground connection
