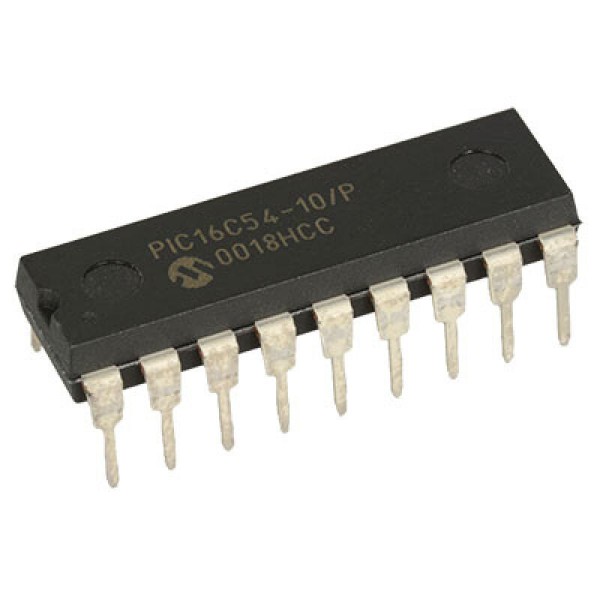

PIC16C54-10/P 8-Bit CMOS Microcontroller DIP-18 (PIC16C54-10/P DIP IC)
The PIC16C54-10/P is a low-cost, high-performance 8-bit fully static CMOS microcontroller. It belongs to the baseline family of PIC microcontrollers and utilizes a RISC architecture with only 33 single-word instructions. This specific variant supports a clock speed of up to 10MHz and includes 512 words of OTP (One-Time Programmable) EPROM program memory and 25 bytes of RAM. It is designed for high-speed applications where a small footprint and low power consumption are required, offering a balance between simplicity and execution speed.
This IC is primarily used in high-speed digital logic replacement, automotive control subsystems, and low-power remote transmitters. It is a classic component for electronics projects in India for building standalone high-speed timers, custom communication protocol converters, and learning the fundamentals of RISC-based assembly programming on a stable 18-pin DIP platform.
Key Features
- High-performance RISC CPU with 33 single-word instructions
- Supports up to 10MHz external clock frequency
- 512 words of OTP EPROM program memory
- Wide operating voltage range (2.5V to 6.25V)
- Low power consumption (under 2mA at 5V, 4MHz)
- 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler
- Watchdog Timer (WDT) with independent on-chip RC oscillator
- High current source/sink for direct LED drive (25mA)
- Fully static design for stable operation
Specifications
- IC Type = 8-Bit CMOS Microcontroller (OTP)
- Program Memory = 512 Words (768 Bytes)
- Data RAM = 25 Bytes
- Maximum Speed = 10MHz
- I/O Pins = 12 (Each bit programmable for direction)
- Supply Voltage = 2.5V to 6.25V (5V Typical)
- Current Sink/Source = 25mA
- Package Type = PDIP-18
- Number of Pins = 18
- Mounting Type = Through-Hole
- Operating Temperature = 0 to 70 degrees Celsius
Interfaces
- PIN 1 to 3 (RA2, RA3, T0CKI) = Port A I/O / Timer 0 Clock Input
- PIN 4 (MCLR) = Master Clear Input (Active Low)
- PIN 5 (VSS) = Ground (0V)
- PIN 6 to 13 (RB0 to RB7) = 8-Bit Port B I/O
- PIN 14 (VDD) = Positive Supply Voltage (5V)
- PIN 15 (OSC2/CLKOUT) = Oscillator Output
- PIN 16 (OSC1/CLKIN) = Oscillator Input
- PIN 17 to 18 (RA0, RA1) = Port A I/O
