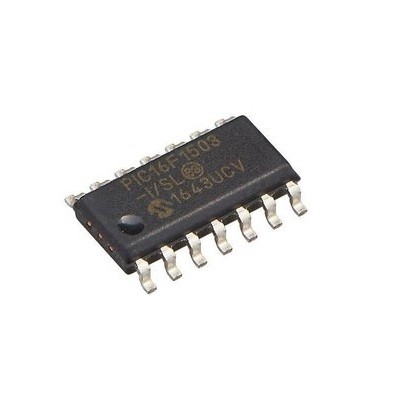

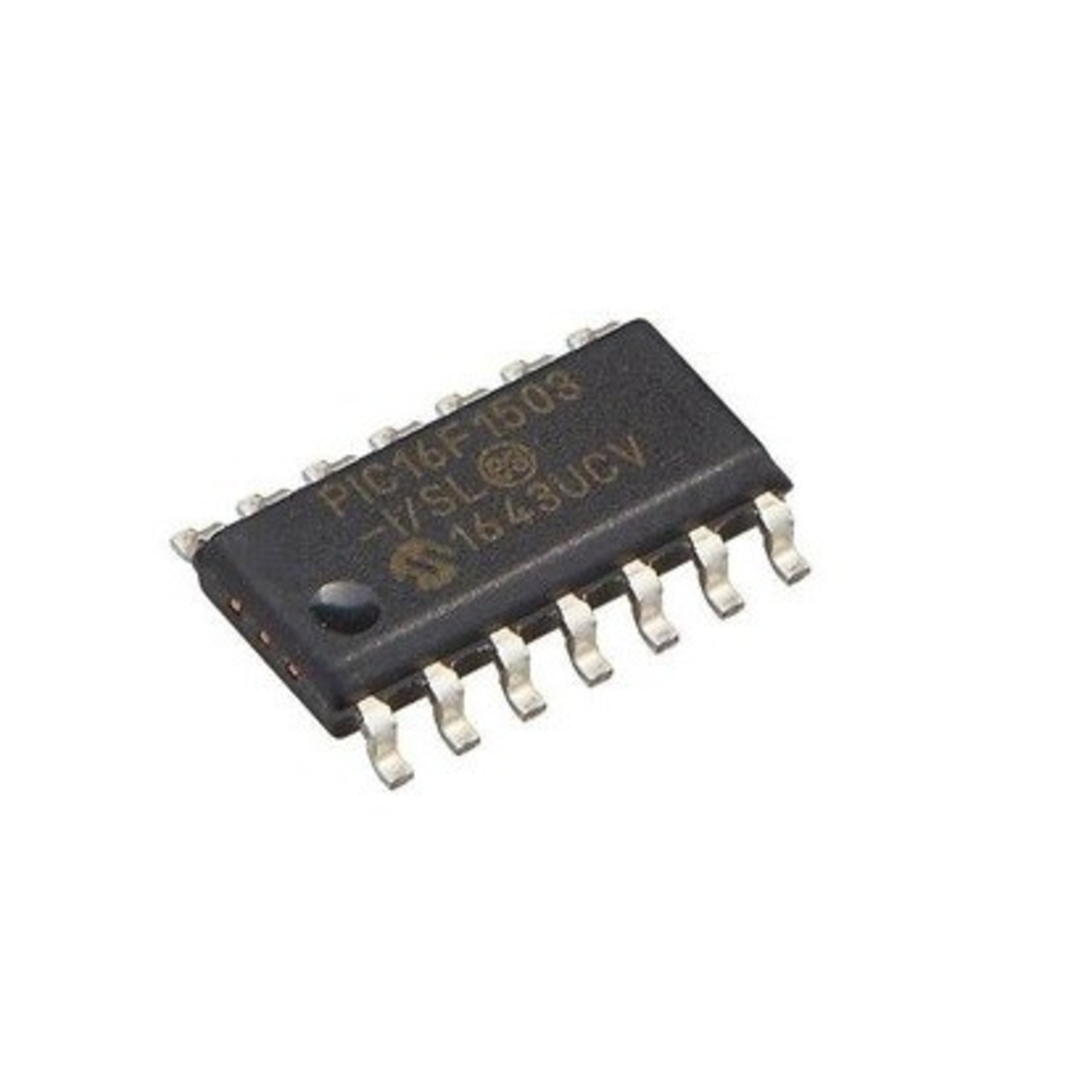

PIC16F1503-I/SL SOIC-14 8-Bit Microcontroller IC with Flash Memory (PIC16F1503-I/SL)
The PIC16F1503-I/SL is an 8-bit microcontroller IC designed for embedded control, automation systems, sensor interfacing, and low power electronic applications. It features onboard Flash memory, ADC functionality, PWM support, internal oscillator operation, and configurable logic peripherals in a compact SOIC-14 package.
Key Features -
- 8-bit microcontroller architecture
- Integrated ADC and PWM functionality
- Internal oscillator support
- SOIC-14 surface mount package
- Configurable logic and low power operation
Specifications -
- IC type / Product type - 8-Bit Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - SOIC-14 SMD IC
- Supply voltage - Approx 1.8V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power embedded operation
- Frequency / propagation delay - Internal oscillator frequency up to approx 16MHz
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Flash program memory, EEPROM data memory, ADC channels, PWM modules, timers, configurable logic cells, watchdog timer support, programmable GPIO pins, comparator modules
Applications -
- Embedded control systems
- Sensor interfacing applications
- Industrial automation circuits
- Consumer electronic devices
- Low power microcontroller projects
Pinout Configuration -
- Pin 1 - Power supply pin
- Pin 2 - GPIO or analog input pin
- Pin 3 - GPIO or communication function pin
- Additional pins - Reset pin, oscillator function pins, ADC input pins, PWM output pins, programmable GPIO pins, ground connection
