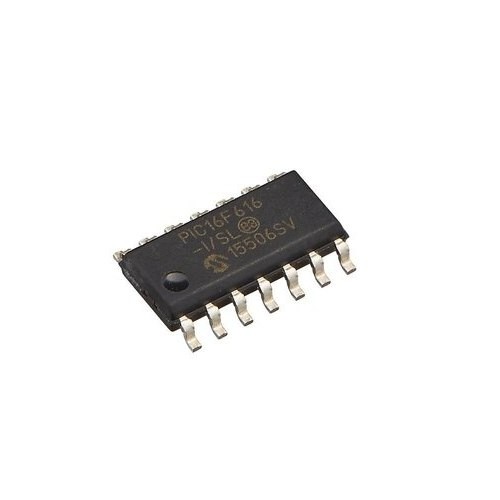

PIC16F616-I/SL SOIC-14 8-Bit Microcontroller IC with Flash Memory (PIC16F616-I/SL)
The PIC16F616-I/SL is an 8-bit microcontroller IC designed for embedded control, automation, sensor interfacing, and low power electronic applications. It features onboard Flash memory, timers, PWM functionality, comparator modules, and programmable GPIO pins in a compact SOIC package, making it suitable for compact embedded system designs.
Key Features -
- 8-bit microcontroller IC
- Integrated Flash program memory
- Low power embedded operation
- SOIC-14 surface mount package
- Built-in timers and PWM support
Specifications -
- IC type / Product type - 8-Bit Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - SOIC-14 SMD IC
- Supply voltage - Approx 2V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power microcontroller operation
- Frequency / propagation delay - Operating frequency up to approx 20MHz with external oscillator
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Flash memory support, EEPROM data memory, PWM module, comparator module, timers, watchdog timer support, programmable GPIO pins
Applications -
- Embedded control systems
- Industrial automation circuits
- Sensor interfacing applications
- Consumer electronic devices
- Microcontroller based development projects
Pinout Configuration -
- Pin 1 - Master clear or reset pin
- Pin 2 - GPIO or oscillator input pin
- Pin 3 - GPIO or oscillator output pin
- Additional pins - Power supply pins, timer pins, PWM output pins, comparator input pins, programmable GPIO pins, ground connection
