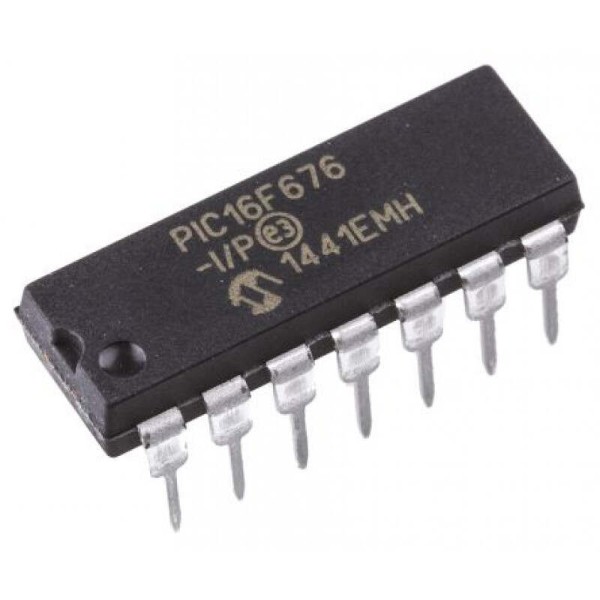

PIC16F676-I/P 8-Bit Flash Microcontroller with 10-Bit ADC DIP-14 (PIC16F676-I/P DIP IC)
The PIC16F676-I/P is a high-performance, 8-bit Flash-based microcontroller from Microchip's mid-range family, offering a sophisticated set of features in a compact 14-pin package. It features a powerful RISC architecture with 35 single-word instructions. This IC includes 1.75KB of Flash program memory, 64 bytes of SRAM, and 128 bytes of high-endurance EEPROM. A key highlight is the integrated 8-channel 10-bit Analog-to-Digital Converter (ADC) and a dual analog comparator module. With its precision internal 4MHz oscillator and mixed-signal capabilities, it is a highly efficient choice for space-constrained applications requiring precise analog sensing and data persistence.
This IC is primarily used in light sensors, battery chargers, and automotive interior controls. It is a highly popular component for Arduino electronics projects in India for building DIY digital voltmeters, compact sensor interfaces, and smart home automation nodes that require high-resolution analog readings in a small 14-pin DIP footprint.
Key Features
- High-performance RISC CPU with 35 single-word instructions
- 8-channel 10-bit Analog-to-Digital Converter (ADC)
- 128 Bytes of high-endurance Data EEPROM (1,000,000 cycles)
- Dual analog comparators with programmable on-chip voltage reference
- Precision internal 4MHz RC oscillator (+/- 1 percent accuracy)
- 12 bidirectional I/O pins with individual direction control
- In-Circuit Serial Programming (ICSP) via two pins
- Low-power NanoWatt technology for extended battery life
- Programmable Brown-out Reset (BOR) and Power-on Reset (POR)
- High current source/sink for direct LED drive (25mA)
Specifications
- IC Type = 8-Bit Flash Microcontroller with 10-Bit ADC
- Program Memory = 1.75KB (1024 Words)
- Data RAM = 64 Bytes
- Data EEPROM = 128 Bytes
- ADC Resolution = 10-Bit (8 Channels)
- Speed = 4MHz (Internal) / 20MHz (External)
- I/O Pins = 12 (Each programmable for direction)
- Supply Voltage = 2.0V to 5.5V
- Current Sink/Source = 25mA
- Package Type = PDIP-14
- Number of Pins = 14
- Mounting Type = Through-Hole
- Operating Temperature = -40 to 85 degrees Celsius
Interfaces
- PIN 1 (VDD) = Positive Supply Voltage (5V)
- PIN 2 (RA5/OSC1/CLKIN) = Port A I/O / Oscillator Input
- PIN 3 (RA4/AN3/OSC2/CLKOUT) = Port A I/O / Analog Input 3
- PIN 4 (RA3/MCLR/VPP) = Input Only / Master Clear / Programming Voltage
- PIN 5 (RC5) = Port C I/O
- PIN 6 (RC4/C2OUT) = Port C I/O / Comparator 2 Output
- PIN 7 (RC3/AN7/C12IN3-) = Port C I/O / Analog Input 7
- PIN 8 (RC2/AN6/C12IN2-) = Port C I/O / Analog Input 6
- PIN 9 (RC1/AN5/C12IN1-) = Port C I/O / Analog Input 5
- PIN 10 (RC0/AN4/C2IN+) = Port C I/O / Analog Input 4
- PIN 11 (RA2/AN2/T0CKI/INT/COUT) = Port A I/O / Analog Input 2 / External Interrupt
- PIN 12 (RA1/AN1/ICSPCLK) = Port A I/O / Analog Input 1 / Programming Clock
- PIN 13 (RA0/AN0/ICSPDAT) = Port A I/O / Analog Input 0 / Programming Data
- PIN 14 (VSS) = Ground (0V)
