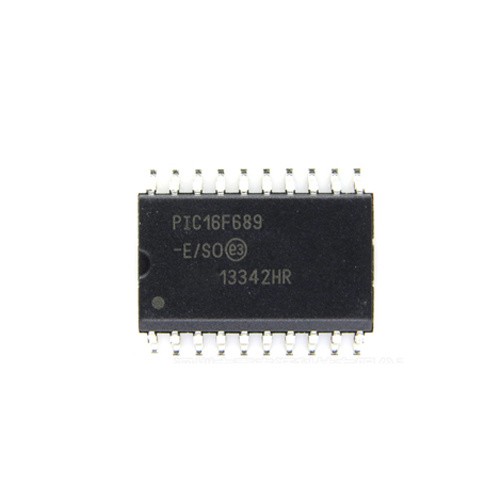

PIC16F689-E/SO SOIC-20 8-Bit Microcontroller IC with ADC and Flash Memory (PIC16F689-E/SO)
The PIC16F689-E/SO is an 8-bit microcontroller IC designed for embedded control, automation systems, sensor interfacing, and general purpose electronic applications. It features onboard Flash memory, ADC functionality, internal oscillator support, timers, comparator modules, and programmable GPIO pins in a compact SOIC-20 package.
Key Features -
- 8-bit microcontroller IC
- Integrated ADC functionality
- Internal oscillator support
- SOIC-20 surface mount package
- Low power embedded operation
Specifications -
- IC type / Product type - 8-Bit Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - SOIC-20 SMD IC
- Supply voltage - Approx 2V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power microcontroller operation
- Frequency / propagation delay - Internal oscillator frequency up to approx 8MHz with external oscillator support
- Operating temperature - Approx -40 to +125 degree C
- Additional important specifications - Flash program memory, EEPROM data memory, ADC channels, comparator modules, timers, USART communication support, watchdog timer support, programmable GPIO pins
Applications -
- Embedded control systems
- Sensor interfacing applications
- Industrial automation circuits
- Consumer electronic devices
- Microcontroller based development projects
Pinout Configuration -
- Pin 1 - Power supply pin
- Pin 2 - GPIO or analog input pin
- Pin 3 - GPIO or communication function pin
- Additional pins - Reset pin, oscillator function pins, ADC input pins, communication interface pins, programmable GPIO pins, ground connection
