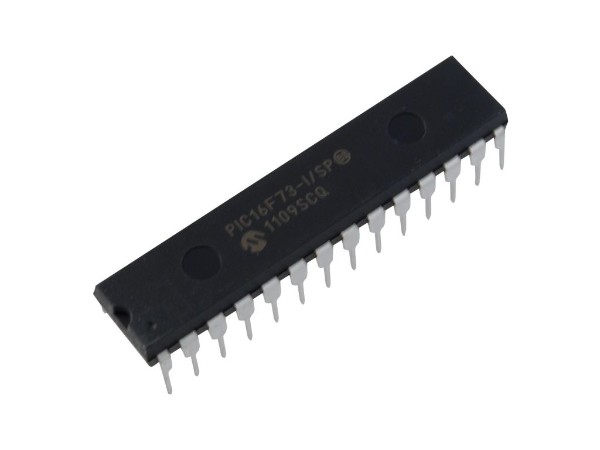

PIC16F73-I/SP 8-Bit Flash Microcontroller with ADC and USART DIP-28 (PIC16F73-I/SP DIP IC)
The PIC16F73-I/SP is a high-performance, 8-bit Flash-based microcontroller from Microchip's mid-range family. It features a powerful RISC architecture with 35 single-word instructions and achieves a fast 200ns instruction execution at 20MHz. This IC offers 7KB of Flash program memory and 192 bytes of RAM. It is highly versatile, featuring a 5-channel 8-bit Analog-to-Digital Converter (ADC), two Capture/Compare/PWM (CCP) modules, and a Synchronous Serial Port (SSP) for SPI/I2C. Additionally, it includes a Universal Synchronous Asynchronous Receiver Transmitter (USART) for robust serial communication.
This IC is primarily used in industrial automation, serial-to-parallel converters, and automotive control systems. It is a popular choice for Arduino electronics projects in India for building DIY wireless data links, multi-peripheral controllers, and advanced embedded systems that require hardware-based serial communication (UART) in a 28-pin Skinny DIP package.
Key Features
- High-performance RISC CPU with 35 single-word instructions
- 5-channel 8-bit Analog-to-Digital Converter (ADC)
- Two Capture/Compare/PWM (CCP) modules
- Universal Synchronous Asynchronous Receiver Transmitter (USART/UART)
- Synchronous Serial Port (SSP) with SPI and I2C modes
- Three hardware timers (2 x 8-bit, 1 x 16-bit)
- Reprogrammable Flash memory with high endurance
- In-Circuit Serial Programming (ICSP) via two pins
- Power-saving Sleep mode and Watchdog Timer (WDT)
- High current source/sink capability (25mA per I/O)
Specifications
- IC Type = 8-Bit Flash Microcontroller
- Program Memory = 7KB (4096 Words)
- Data RAM = 192 Bytes
- ADC Resolution = 8-Bit (5 Channels)
- Maximum Speed = 20MHz
- I/O Pins = 22 (Each programmable for direction)
- Supply Voltage = 4.0V to 5.5V
- Current Sink/Source = 25mA
- Package Type = SPDIP-28 (Skinny DIP)
- Number of Pins = 28
- Mounting Type = Through-Hole
- Operating Temperature = -40 to 85 degrees Celsius
Interfaces
- PIN 1 (MCLR/VPP) = Master Clear / Programming Voltage
- PIN 2 to 5, 7 (RA0 to RA4) = Port A / Analog Inputs / T0CKI
- PIN 8, 19 (VSS) = Ground (0V)
- PIN 9, 10 (OSC1, OSC2) = External Crystal/Oscillator Inputs
- PIN 11 to 18 (RC0 to RC7) = Port C / Timers / CCP / USART / SPI / I2C
- PIN 20 (VDD) = Positive Supply Voltage (5V)
- PIN 21 to 28 (RB0 to RB7) = 8-Bit Port B I/O (Interrupt-on-change)
