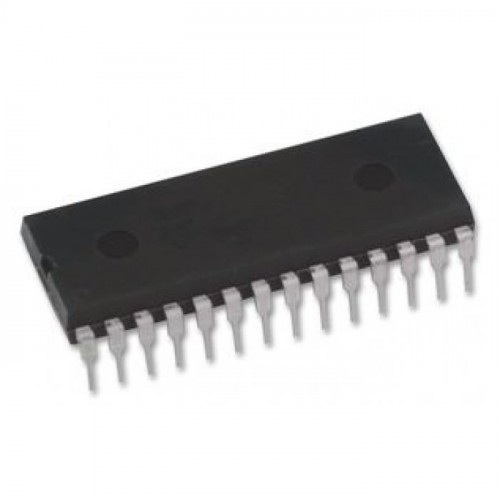

PIC16F876-I/SP 8-Bit Flash Microcontroller with ADC and USART DIP-28 (PIC16F876-I/SP DIP IC)
The PIC16F876-I/SP is a high-performance, 8-bit Flash-based microcontroller from Microchip's mid-range family, housed in a 28-pin Skinny DIP package. It features a powerful RISC architecture with 35 single-word instructions and achieves 200ns instruction execution at 20MHz. This IC offers 14KB of Flash program memory, 368 bytes of RAM, and 256 bytes of high-endurance EEPROM. It is exceptionally well-equipped with peripherals, including a 5-channel 10-bit Analog-to-Digital Converter (ADC), two Capture/Compare/PWM (CCP) modules, and a Synchronous Serial Port (SSP) supporting SPI and I2C. The inclusion of a hardware USART makes it a robust solution for complex serial communication and mixed-signal processing.
This IC is primarily used in industrial automation, multi-peripheral controllers, and automotive sensor interfaces. It is a highly popular component for Arduino electronics projects in India for building DIY data loggers, advanced motor speed controllers, and smart embedded systems that require substantial program memory and non-volatile data storage in a 28-pin DIP footprint.
Key Features
- High-performance RISC CPU with 35 single-word instructions
- 5-channel 10-bit Analog-to-Digital Converter (ADC)
- 256 Bytes of high-endurance Data EEPROM (1,000,000 cycles)
- Two Capture/Compare/PWM (CCP) modules
- Universal Synchronous Asynchronous Receiver Transmitter (USART/UART)
- Synchronous Serial Port (SSP) with SPI and I2C (Master/Slave) modes
- Three hardware timers (2 x 8-bit, 1 x 16-bit)
- In-Circuit Serial Programming (ICSP) and In-Circuit Debug (ICD)
- Precision Brown-out Reset (BOR) and Power-on Reset (POR)
- High current source/sink capability (25mA per I/O)
Specifications
- IC Type = 8-Bit Flash Microcontroller
- Program Memory = 14KB (8192 Words)
- Data RAM = 368 Bytes
- Data EEPROM = 256 Bytes
- ADC Resolution = 10-Bit (5 Channels)
- Maximum Speed = 20MHz
- I/O Pins = 22 (Each programmable for direction)
- Supply Voltage = 4.0V to 5.5V
- Current Sink/Source = 25mA
- Package Type = SPDIP-28 (Skinny DIP)
- Number of Pins = 28
- Mounting Type = Through-Hole
- Operating Temperature = -40 to 85 degrees Celsius
Interfaces
- PIN 1 (MCLR/VPP) = Master Clear / Programming Voltage
- PIN 2 to 5, 7 (RA0 to RA4) = Port A / Analog Inputs / Vref
- PIN 8, 19 (VSS) = Ground (0V)
- PIN 9, 10 (OSC1, OSC2) = External Crystal/Oscillator Inputs
- PIN 11 to 18 (RC0 to RC7) = Port C / Timers / CCP / USART / SPI / I2C
- PIN 20 (VDD) = Positive Supply Voltage (5V)
- PIN 21 to 28 (RB0 to RB7) = 8-Bit Port B / Interrupt-on-change / ICSP
