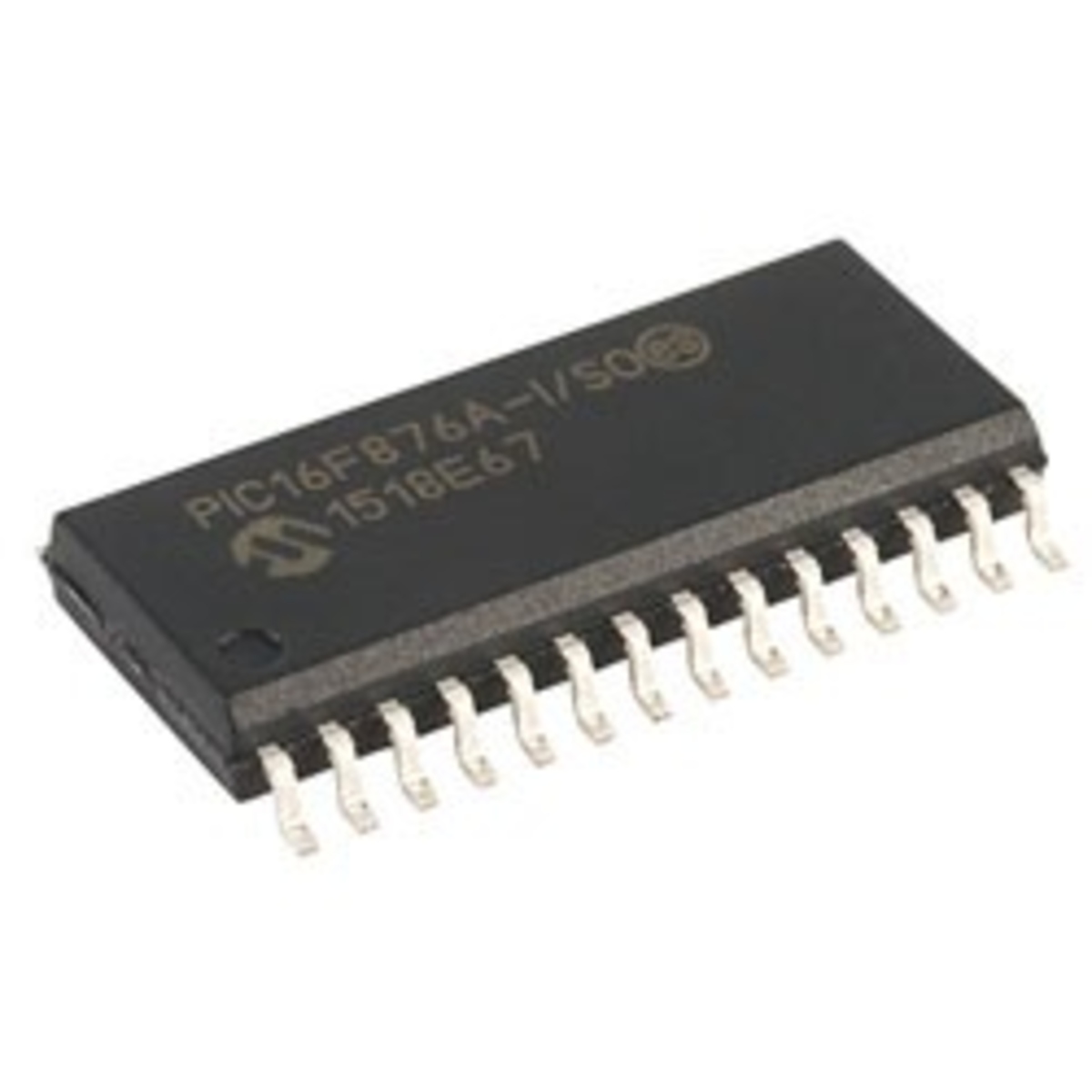

PIC16F876A-I/SO SOIC-28 8-Bit Microcontroller IC with ADC and Flash Memory (PIC16F876A-I/SO)
The PIC16F876A-I/SO is an 8-bit microcontroller IC designed for embedded control, industrial automation, communication systems, and sensor interfacing applications. It features onboard Flash memory, ADC functionality, PWM support, timers, and multiple communication interfaces in a compact SOIC package, making it suitable for advanced embedded electronic designs.
Key Features -
- 8-bit microcontroller IC
- Integrated ADC and PWM functionality
- Multiple communication interfaces
- SOIC-28 surface mount package
- Low power embedded operation
Specifications -
- IC type / Product type - 8-Bit Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - SOIC-28 SMD IC
- Supply voltage - Approx 2V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power microcontroller operation
- Frequency / propagation delay - Operating frequency up to approx 20MHz with external oscillator
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Flash program memory, EEPROM data memory, ADC channels, PWM modules, USART communication support, SPI and I2C interface support, timers, watchdog timer support, programmable GPIO pins
Applications -
- Embedded control systems
- Industrial automation equipment
- Sensor interfacing applications
- Communication and monitoring systems
- Microcontroller based development projects
Pinout Configuration -
- Pin 1 - Master clear or reset pin
- Pin 2 - GPIO or oscillator input pin
- Pin 3 - GPIO or oscillator output pin
- Additional pins - ADC input pins, PWM output pins, communication interface pins, power supply pins, programmable GPIO pins, ground connection
