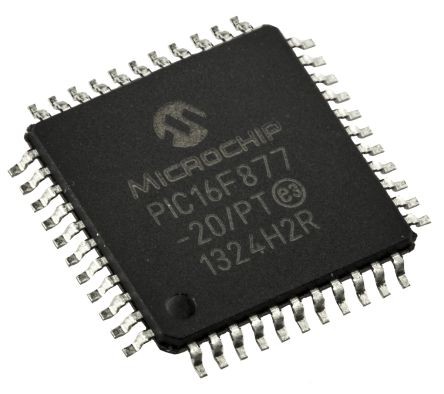

PIC16F877-20/PT TQFP-44 Original 8-Bit Microcontroller IC 20MHz Flash MCU (PIC16F877-20/PT)
The PIC16F877-20/PT is an original 8-bit microcontroller IC designed for embedded control, industrial automation, communication systems, and advanced electronic applications. It features Flash program memory, ADC functionality, timers, PWM support, and multiple communication interfaces in a compact TQFP-44 package, making it suitable for versatile embedded system development.
Key Features -
- Original Microchip microcontroller IC
- 8-bit microcontroller architecture
- Operating frequency up to 20MHz
- TQFP-44 surface mount package
- Integrated ADC, PWM, and communication interfaces
Specifications -
- IC type / Product type - 8-Bit Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - TQFP-44 SMD IC
- Supply voltage - Approx 2V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power embedded operation
- Frequency / propagation delay - Operating frequency up to approx 20MHz
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Flash program memory, EEPROM data memory, ADC channels, PWM modules, USART communication support, SPI and I2C interface support, timers, watchdog timer support, programmable GPIO pins
Applications -
- Embedded control systems
- Industrial automation equipment
- Sensor interfacing applications
- Communication and monitoring systems
- Microcontroller based development projects
Pinout Configuration -
- Pin 1 - Master clear or reset pin
- Pin 2 - GPIO or oscillator input pin
- Pin 3 - GPIO or oscillator output pin
- Additional pins - ADC input pins, PWM output pins, communication interface pins, power supply pins, programmable GPIO pins, ground connection
