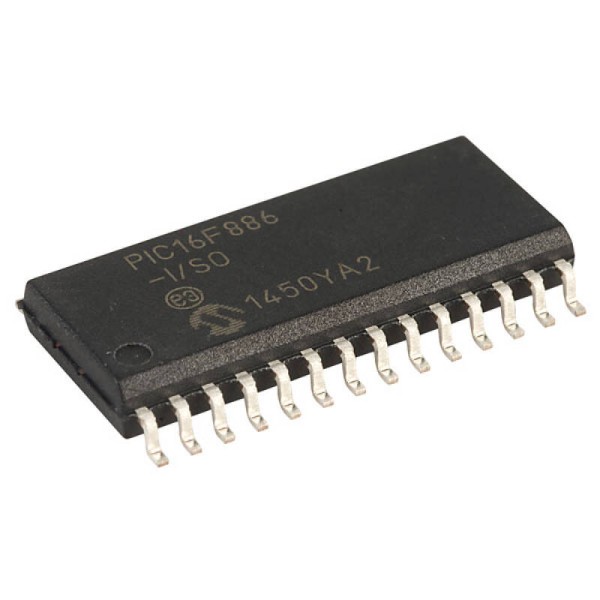

PIC16F886-I/SO SOIC-28 8-Bit Microcontroller IC with ADC and Flash Memory (PIC16F886-I/SO)
The PIC16F886-I/SO is an 8-bit microcontroller IC designed for embedded control, automation systems, sensor interfacing, and industrial electronic applications. It features onboard Flash memory, ADC functionality, PWM support, internal oscillator operation, and multiple communication interfaces in a compact SOIC-28 package.
Key Features -
- 8-bit microcontroller architecture
- Integrated ADC and PWM functionality
- Internal oscillator support
- SOIC-28 surface mount package
- Multiple communication interface support
Specifications -
- IC type / Product type - 8-Bit Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - SOIC-28 SMD IC
- Supply voltage - Approx 2V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power embedded operation
- Frequency / propagation delay - Internal oscillator frequency up to approx 8MHz with external oscillator support up to approx 20MHz
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Flash program memory, EEPROM data memory, ADC channels, PWM modules, USART communication support, SPI and I2C interface support, timers, comparator modules, watchdog timer support, programmable GPIO pins
Applications -
- Embedded control systems
- Industrial automation equipment
- Sensor interfacing applications
- Communication and monitoring systems
- Microcontroller based development projects
Pinout Configuration -
- Pin 1 - Master clear or reset pin
- Pin 2 - GPIO or oscillator input pin
- Pin 3 - GPIO or oscillator output pin
- Additional pins - ADC input pins, PWM output pins, communication interface pins, power supply pins, programmable GPIO pins, ground connection
