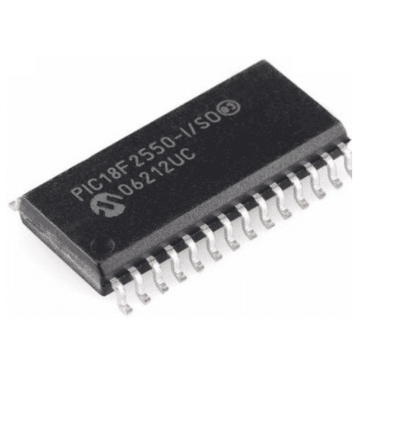

PIC18F2550-I/SO SOIC-28 USB 8-Bit Microcontroller IC with Flash Memory (PIC18F2550-I/SO)

SKU: ICS-223Category: Electronic Components
₹ 330.40 (Inclusive of 18.00% GST)
Base Price: ₹ 280.00 | GST (18.00%): ₹ 50.40
Out of Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

PIC18F2550-I/SO SOIC-28 USB 8-Bit Microcontroller IC with Flash Memory (PIC18F2550-I/SO)

The PIC18F2550-I/SO is a high performance 8-bit microcontroller IC designed for embedded control, USB communication, industrial automation, and electronic interface applications. It features onboard Flash memory, USB 2.0 support, ADC functionality, PWM modules, and multiple communication interfaces in a compact SOIC-28 package.

Key Features -

  • High performance 8-bit microcontroller
  • Integrated USB 2.0 communication support
  • ADC and PWM functionality
  • SOIC-28 surface mount package
  • Multiple communication interface support

Specifications -

  • IC type / Product type - USB 8-Bit Microcontroller IC
  • Logic family / Component type - Embedded Microcontroller IC
  • Package type - SOIC-28 SMD IC
  • Supply voltage - Approx 2V to 5.5V DC
  • Input voltage - CMOS compatible digital input levels
  • Output voltage - CMOS logic output levels
  • Current rating - Low power embedded operation
  • Frequency / propagation delay - Operating frequency up to approx 48MHz with PLL support
  • Operating temperature - Approx -40 to +85 degree C
  • Additional important specifications - Flash program memory, EEPROM data memory, USB 2.0 full speed support, ADC channels, PWM modules, USART communication support, SPI and I2C interface support, timers, watchdog timer support, programmable GPIO pins

Applications -

  • USB communication devices
  • Embedded control systems
  • Industrial automation equipment
  • Sensor interfacing applications
  • Microcontroller based development projects

Pinout Configuration -

  • Pin 1 - Master clear or reset pin
  • Pin 2 - GPIO or oscillator input pin
  • Pin 3 - GPIO or oscillator output pin
  • Additional pins - USB data pins, ADC input pins, PWM output pins, communication interface pins, power supply pins, programmable GPIO pins, ground connection
