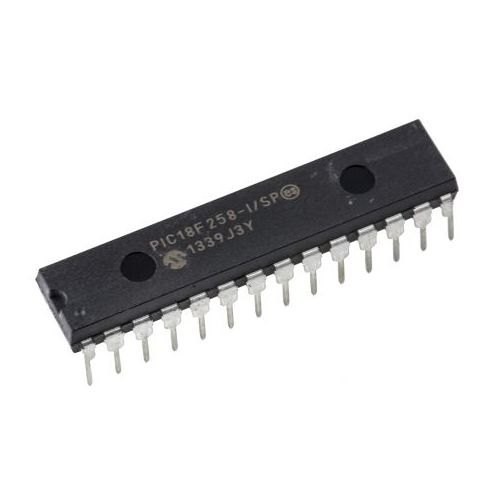

PIC18F258-I/SP 8-Bit Flash Microcontroller with CAN and NanoWatt Technology DIP-28 (PIC18F258-I/SP DIP IC)
The PIC18F258-I/SP is a high-performance, 8-bit Flash-based microcontroller from Microchip's advanced PIC18 family, specifically designed for applications requiring robust networking via an integrated CAN (Controller Area Network) module. Housed in a 28-pin Skinny DIP package, it features a powerful RISC architecture with 75 instructions and 32KB of Flash program memory. This IC is a specialized variant of the PIC18F252, adding a full CAN 2.0B Active controller, making it ideal for automotive and industrial environments. With 1536 bytes of RAM, 256 bytes of EEPROM, and a 5-channel 10-bit ADC, it provides a sophisticated platform for complex, networked control tasks that require deterministic communication.
This IC is primarily used in automotive control units, industrial automation nodes, and professional diagnostic tools. It is an essential component for Arduino and robotics projects in India for building DIY CAN bus interfaces, vehicle-to-everything (V2X) communication prototypes, and multi-node industrial monitoring systems that require high memory capacity and reliable networking in a 28-pin DIP footprint.
Key Features
- High-performance RISC CPU with 75 instructions (optimized for C)
- Integrated CAN 2.0B Active Module for reliable serial networking
- 32KB Flash program memory (enhanced endurance)
- 5-channel 10-bit Analog-to-Digital Converter (ADC)
- 256 Bytes of high-endurance Data EEPROM (1,000,000 cycles)
- Capture/Compare/PWM (CCP) module for precise control
- Master Synchronous Serial Port (MSSP) supporting SPI and I2C
- Addressable USART for standard serial communication
- Priority-level interrupts for real-time responsiveness
- High current source/sink capability (25mA per I/O)
Specifications
- IC Type = 8-Bit Flash Microcontroller with CAN
- Program Memory = 32KB (16384 Words)
- Data RAM = 1536 Bytes
- Data EEPROM = 256 Bytes
- ADC Resolution = 10-Bit (5 Channels)
- Maximum Speed = 40MHz (10 MIPS)
- I/O Pins = 22 (Each programmable for direction)
- Supply Voltage = 4.2V to 5.5V
- Current Sink/Source = 25mA
- Package Type = SPDIP-28 (Skinny DIP)
- Number of Pins = 28
- Mounting Type = Through-Hole
- Operating Temperature = -40 to 85 degrees Celsius
Interfaces
- PIN 1 (MCLR/VPP) = Master Clear / Programming Voltage
- PIN 2 to 5, 7 (RA0 to RA4) = Port A / Analog Inputs / Vref
- PIN 8, 19 (VSS) = Ground (0V)
- PIN 9, 10 (OSC1, OSC2) = External Crystal/Oscillator Inputs
- PIN 11 to 18 (RC0 to RC7) = Port C / Timers / SPI / I2C / USART / CAN TX-RX
- PIN 20 (VDD) = Positive Supply Voltage (5V)
- PIN 21 to 28 (RB0 to RB7) = 8-Bit Port B / External Interrupts / ICSP
