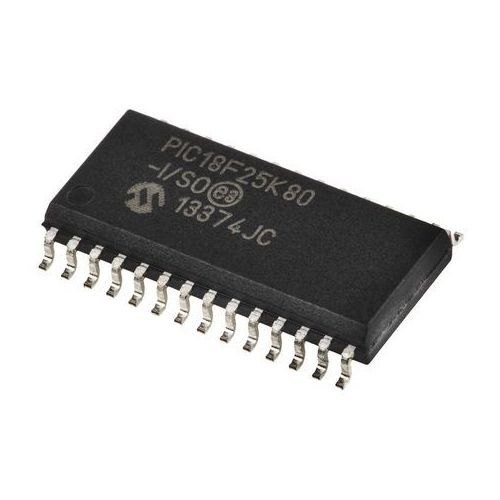

PIC18F25K80-I/SO SOIC-28 CAN Bus 8-Bit Microcontroller IC with Flash Memory (PIC18F25K80-I/SO)
The PIC18F25K80-I/SO is a high performance 8-bit microcontroller IC designed for automotive systems, industrial automation, embedded control, and CAN bus communication applications. It features Flash program memory, integrated CAN controller support, ADC functionality, PWM modules, and multiple communication interfaces in a compact SOIC-28 package.
Key Features -
- High performance 8-bit microcontroller
- Integrated CAN bus communication support
- ADC and PWM functionality
- SOIC-28 surface mount package
- Low power embedded operation
Specifications -
- IC type / Product type - CAN Bus 8-Bit Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - SOIC-28 SMD IC
- Supply voltage - Approx 2V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power embedded operation
- Frequency / propagation delay - Operating frequency up to approx 64MHz with PLL support
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Flash program memory, EEPROM data memory, CAN 2.0 communication controller, ADC channels, PWM modules, USART communication support, SPI and I2C interface support, timers, watchdog timer support, programmable GPIO pins
Applications -
- Automotive electronic systems
- CAN bus communication networks
- Industrial automation equipment
- Embedded control systems
- Microcontroller based development projects
Pinout Configuration -
- Pin 1 - Master clear or reset pin
- Pin 2 - GPIO or oscillator input pin
- Pin 3 - GPIO or oscillator output pin
- Additional pins - CAN transmit and receive pins, ADC input pins, PWM output pins, communication interface pins, power supply pins, programmable GPIO pins, ground connection
