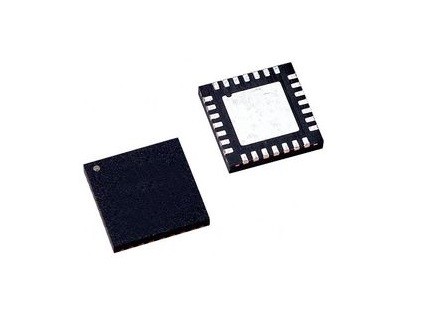

PIC18F26K22-I/ML 8 Bit Microcontroller IC (64KB Flash, QFN 28)

The PIC18F26K22-I/ML is a high performance 8 bit PIC microcontroller designed for embedded control, industrial automation, sensor interfacing and communication applications. It features 64KB Flash program memory, integrated ADC, PWM peripherals and multiple serial communication interfaces. Its nanoWatt power management features and compact QFN 28 package make it suitable for space constrained and power conscious embedded designs.

Key Features -

• High performance 8 bit PIC microcontroller

• 64KB Flash program memory

• nanoWatt low power technology

• Integrated 10 bit ADC

• PWM and CCP functionality

• Multiple timers and comparators

• USART communication support

• SPI and I2C communication support

• Programmable GPIO

• Watchdog timer support

• Up to 64MHz internal operation with PLL

• Compact QFN 28 SMD package

Specifications -

• Manufacturer: Microchip Technology

• Part Number: PIC18F26K22-I/ML

• Product Type: 8 Bit Microcontroller

• Architecture: PIC18

• Program Memory: 64KB Flash

• Data EEPROM: 1KB

• SRAM: 3896 Bytes

• Maximum Operating Frequency: 64MHz

• ADC Resolution: 10 Bit

• Communication: USART, SPI and I2C

• Supply Voltage: 1.8V to 5.5V

• Package: QFN 28

• Mounting Type: SMD

• Power Management: nanoWatt Technology

Applications -

• Embedded control systems

• Industrial automation

• Sensor interfacing

• Communication equipment

• Monitoring and control systems

• Motor control applications

• Data acquisition systems

• Consumer electronics

• Low power embedded devices

• Electronic instrumentation
