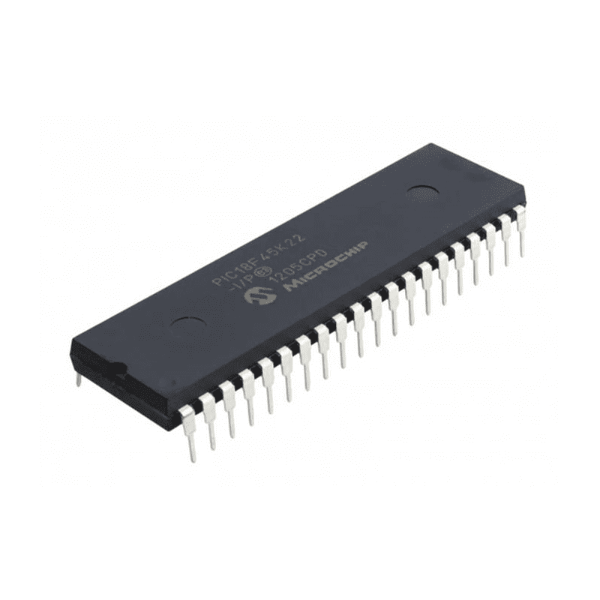

PIC18F45K22-I/P 8-Bit Flash Microcontroller with XLP Technology DIP-40 (PIC18F45K22-I/P DIP IC)
The PIC18F45K22-I/P is a high-performance, 8-bit Flash microcontroller from Microchip’s enhanced PIC18 "K" series, housed in a standard 40-pin DIP package. This IC is designed to offer a blend of high computational power and eXtreme Low Power (XLP) consumption. It features a powerful RISC architecture with 75 instructions and an internal oscillator that can reach 64MHz using the integrated 4x Phase Locked Loop (PLL). With 32KB of Flash program memory, 1536 bytes of RAM, and 256 bytes of EEPROM, it is well-suited for high-density applications. Key peripherals include a 28-channel 10-bit ADC, dual comparators, and multiple serial communication ports (EUSART, SPI, I2C). Its wide operating voltage and advanced power-managed modes make it a highly efficient solution for modern embedded designs.
This IC is widely utilized in smart energy meters, industrial automation controllers, and battery-operated remote sensors. It is a premier component for Arduino-based electronics projects in India for building DIY multi-channel data acquisition systems, complex robotics controllers, and high-speed serial gateways that require a large number of analog inputs and robust processing in a 40-pin DIP footprint.
Key Features
- High-performance RISC CPU with 75 instructions (C-compiler optimized)
- eXtreme Low Power (XLP) technology for battery-friendly operation
- Internal 16MHz Oscillator with 4x PLL (up to 64MHz/16 MIPS)
- 28-channel 10-bit Analog-to-Digital Converter (ADC)
- Hardware 8x8 Single-Cycle Multiplier for accelerated math
- Two Enhanced Capture/Compare/PWM (ECCP) and three Standard CCP modules
- Dual Master Synchronous Serial Ports (MSSP) supporting SPI and I2C
- Dual Enhanced USART (EUSART) with LIN support
- 256 Bytes of high-endurance Data EEPROM (1,000,000 cycles)
- Wide operating voltage range (1.8V to 5.5V)
Specifications
- IC Type = 8-Bit Flash Microcontroller
- Program Memory = 32KB (16384 Words)
- Data RAM = 1536 Bytes
- Data EEPROM = 256 Bytes
- ADC Resolution = 10-Bit (28 Channels)
- Maximum Speed = 64MHz (16 MIPS)
- I/O Pins = 35 (Ports A, B, C, D, and E)
- Supply Voltage = 1.8V to 5.5V
- Current Sink/Source = 25mA
- Package Type = PDIP-40
- Number of Pins = 40
- Mounting Type = Through-Hole
- Operating Temperature = -40 to 85 degrees Celsius
Interfaces
- PIN 1 (MCLR/VPP/RE3) = Master Clear / Programming Voltage
- PIN 2 to 7 (RA0 to RA5) = Port A / Analog Inputs / Vref
- PIN 8 to 10 (RE0 to RE2) = Port E / Analog Inputs
- PIN 11, 32 (VDD) = Positive Supply Voltage (5V)
- PIN 12, 31 (VSS) = Ground (0V)
- PIN 13, 14 (OSC1, OSC2) = External Crystal/Oscillator Inputs
- PIN 15 to 18, 23 to 26 (RC0 to RC7) = Port C / Timers / CCP / EUSART / SPI / I2C
- PIN 19 to 22, 27 to 30 (RD0 to RD7) = 8-Bit Port D / Parallel Slave Port / PWM
- PIN 33 to 40 (RB0 to RB7) = 8-Bit Port B / Interrupt-on-change / Analog Inputs / ICSP
