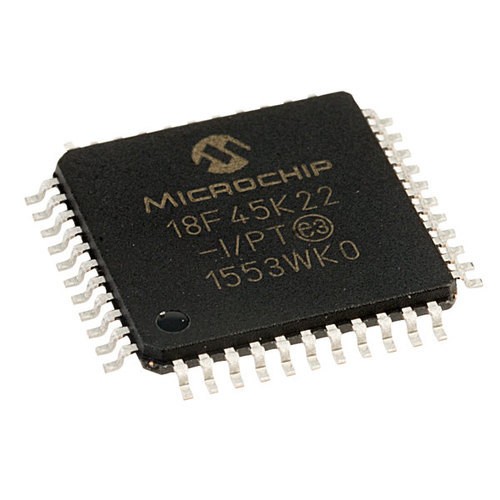

PIC18F45K22-I/PT TQFP-44 8-Bit Microcontroller IC with Flash Memory (PIC18F45K22-I/PT)
The PIC18F45K22-I/PT is a high performance 8-bit microcontroller IC designed for embedded control, industrial automation, communication systems, and advanced electronic applications. It features Flash program memory, ADC functionality, PWM support, multiple communication interfaces, and nanoWatt low power technology in a compact TQFP-44 package.
Key Features -
- High performance 8-bit microcontroller
- nanoWatt low power technology
- Integrated ADC and PWM functionality
- TQFP-44 surface mount package
- Multiple communication interface support
Specifications -
- IC type / Product type - 8-Bit Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - TQFP-44 SMD IC
- Supply voltage - Approx 1.8V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power embedded operation
- Frequency / propagation delay - Operating frequency up to approx 64MHz with PLL support
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Flash program memory, EEPROM data memory, ADC channels, PWM modules, USART communication support, SPI and I2C interface support, timers, comparator modules, watchdog timer support, programmable GPIO pins, nanoWatt power management technology
Applications -
- Embedded control systems
- Industrial automation equipment
- Sensor interfacing applications
- Communication and monitoring systems
- Low power microcontroller projects
Pinout Configuration -
- Pin 1 - Master clear or reset pin
- Pin 2 - GPIO or oscillator input pin
- Pin 3 - GPIO or oscillator output pin
- Additional pins - ADC input pins, PWM output pins, communication interface pins, reset pin, oscillator pins, programmable GPIO pins, ground connection
