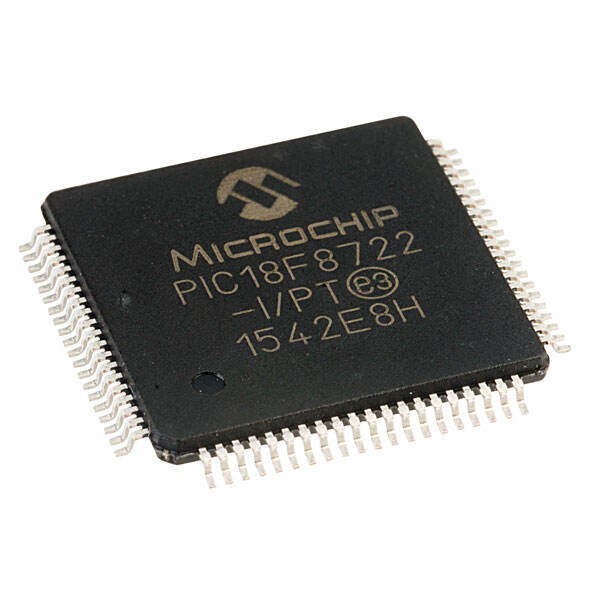

PIC18F8722-I/PT TQFP-80 8-Bit Microcontroller IC with Flash Memory (PIC18F8722-I/PT)
The PIC18F8722-I/PT is a high performance 8-bit microcontroller IC designed for embedded control, industrial automation, communication systems, and advanced electronic applications. It features large Flash program memory, ADC functionality, PWM support, timers, and multiple communication interfaces in a compact TQFP-80 package.
Key Features -
- High performance 8-bit microcontroller
- Large Flash program memory support
- Integrated ADC and PWM functionality
- TQFP-80 surface mount package
- Multiple communication interface support
Specifications -
- IC type / Product type - 8-Bit Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - TQFP-80 SMD IC
- Supply voltage - Approx 2V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power embedded operation
- Frequency / propagation delay - Operating frequency up to approx 40MHz with external oscillator
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Flash program memory, EEPROM data memory, ADC channels, PWM modules, USART communication support, SPI and I2C interface support, timers, watchdog timer support, programmable GPIO pins, parallel slave port support
Applications -
- Embedded control systems
- Industrial automation equipment
- Communication and monitoring systems
- Sensor interfacing applications
- Advanced microcontroller development projects
Pinout Configuration -
- Pin 1 - Master clear or reset pin
- Pin 2 - GPIO or oscillator input pin
- Pin 3 - GPIO or oscillator output pin
- Additional pins - ADC input pins, PWM output pins, communication interface pins, power supply pins, programmable GPIO pins, parallel port pins, ground connection
