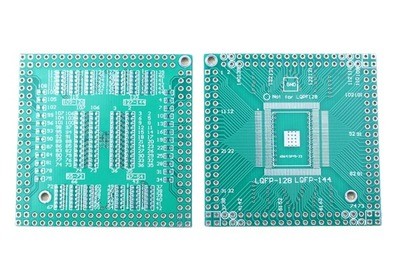

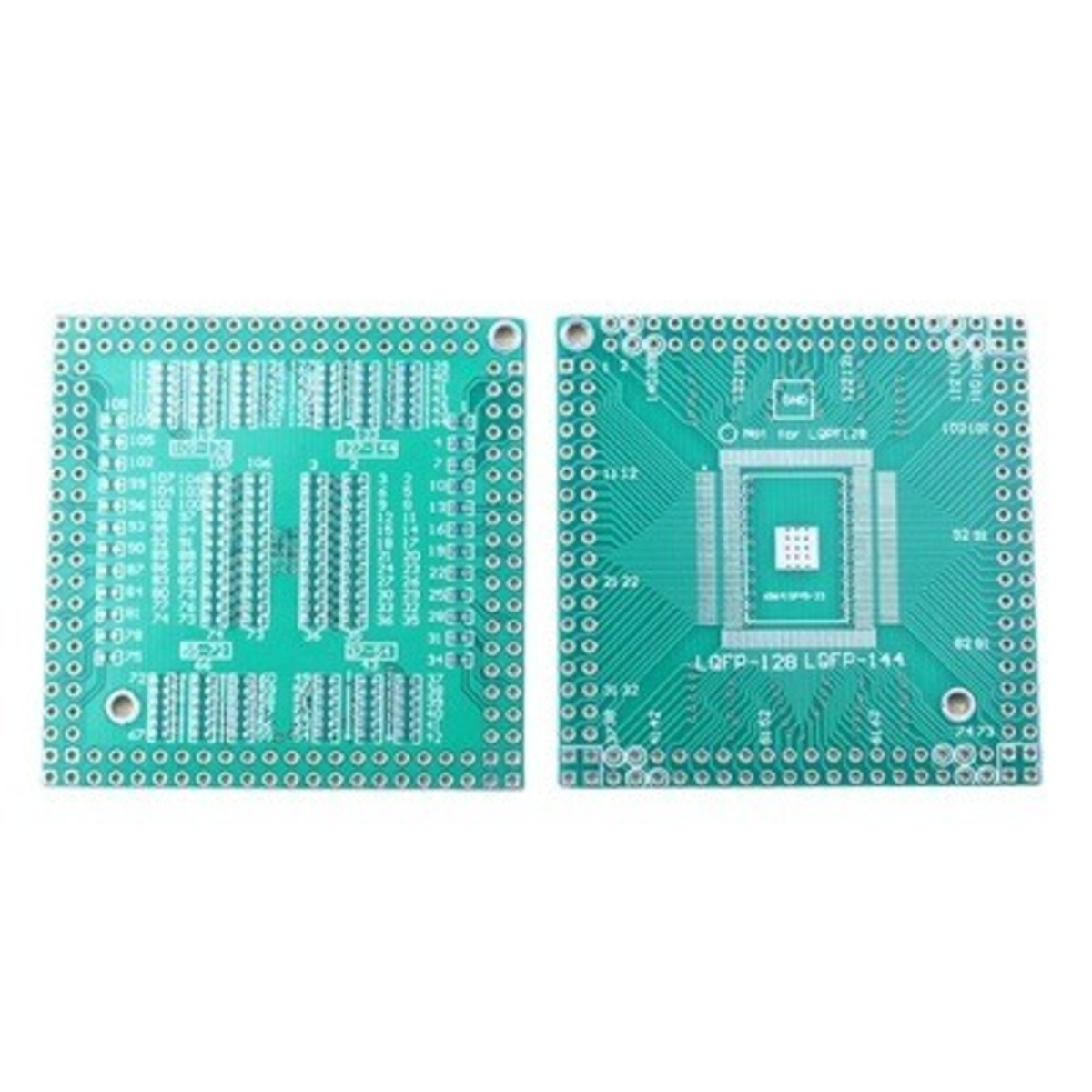

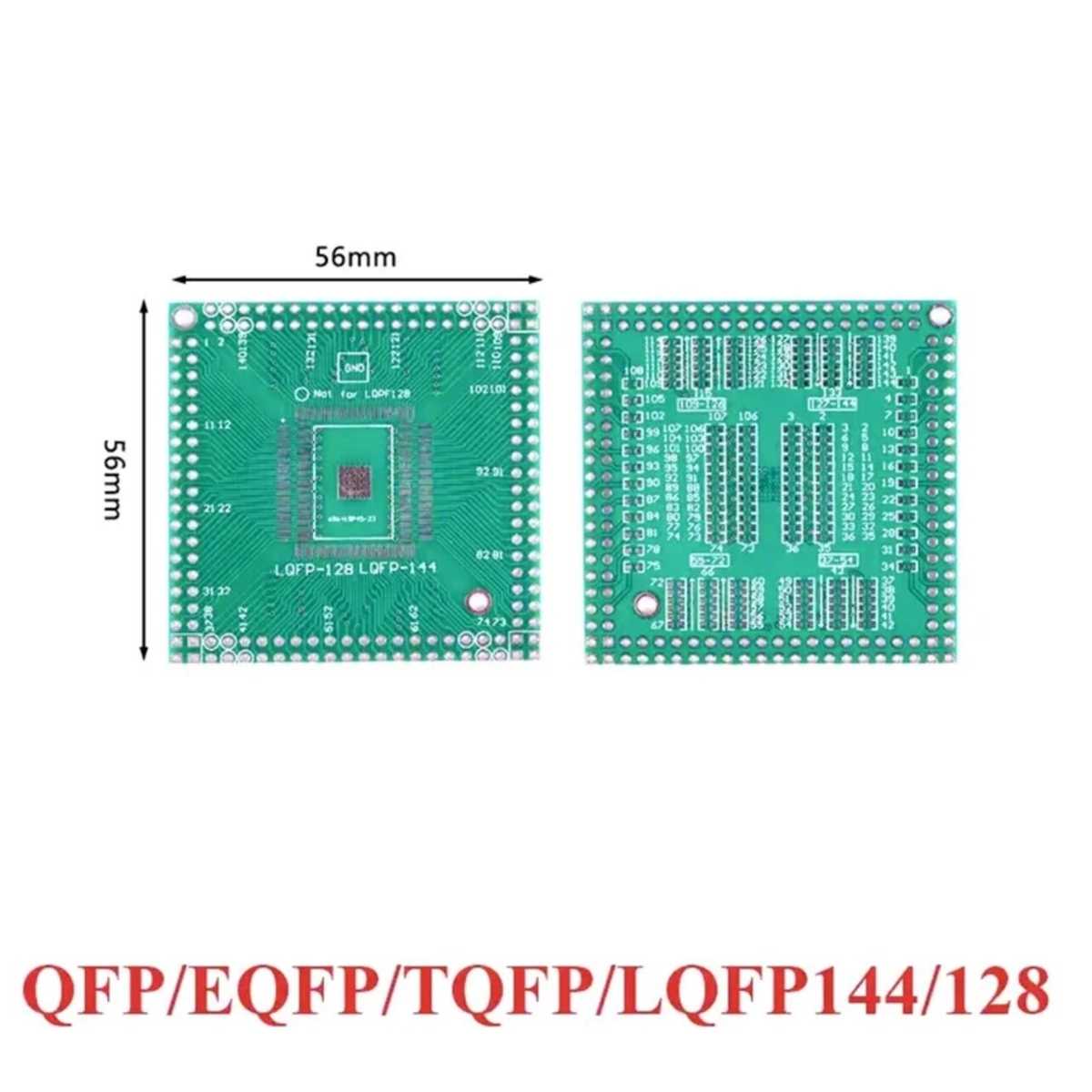

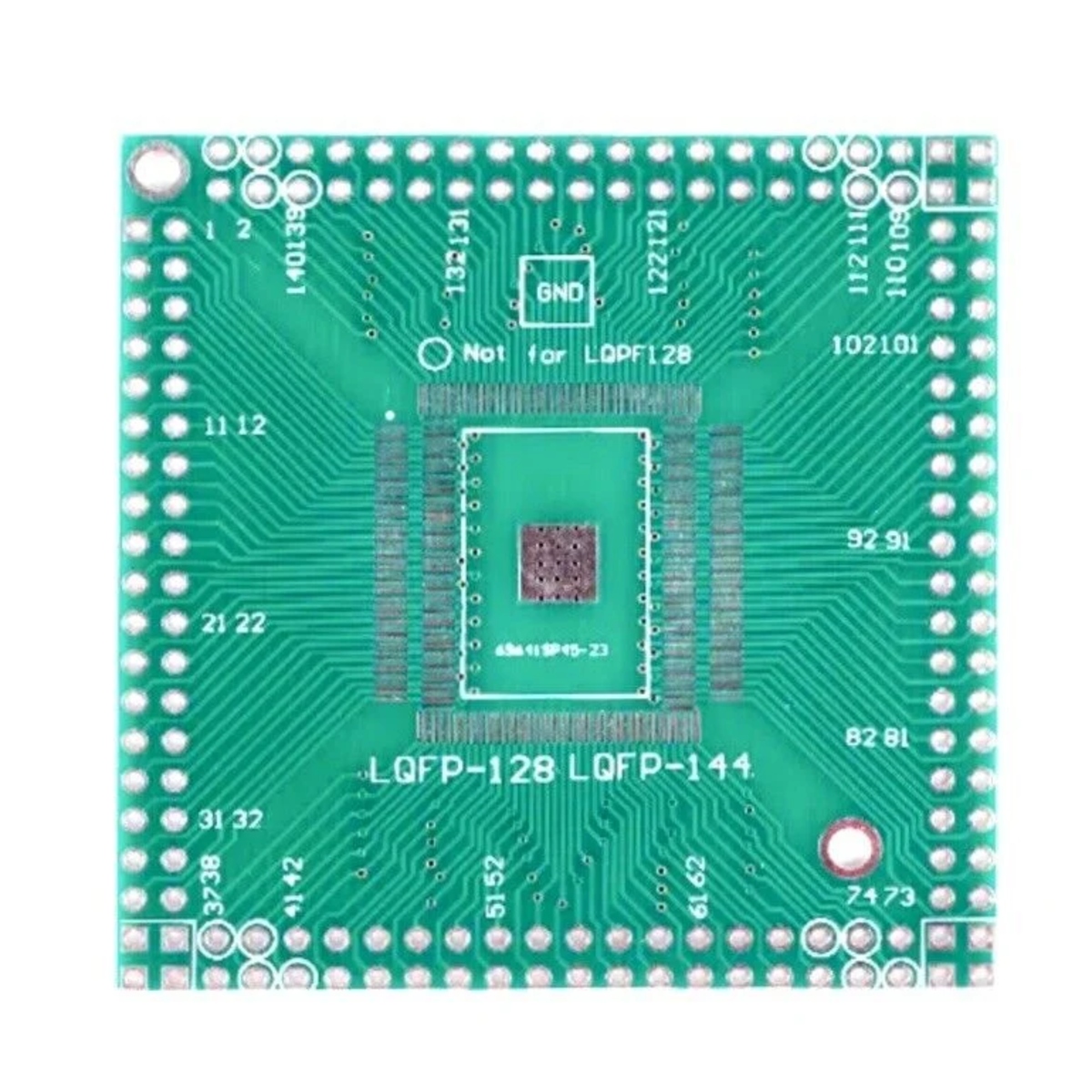

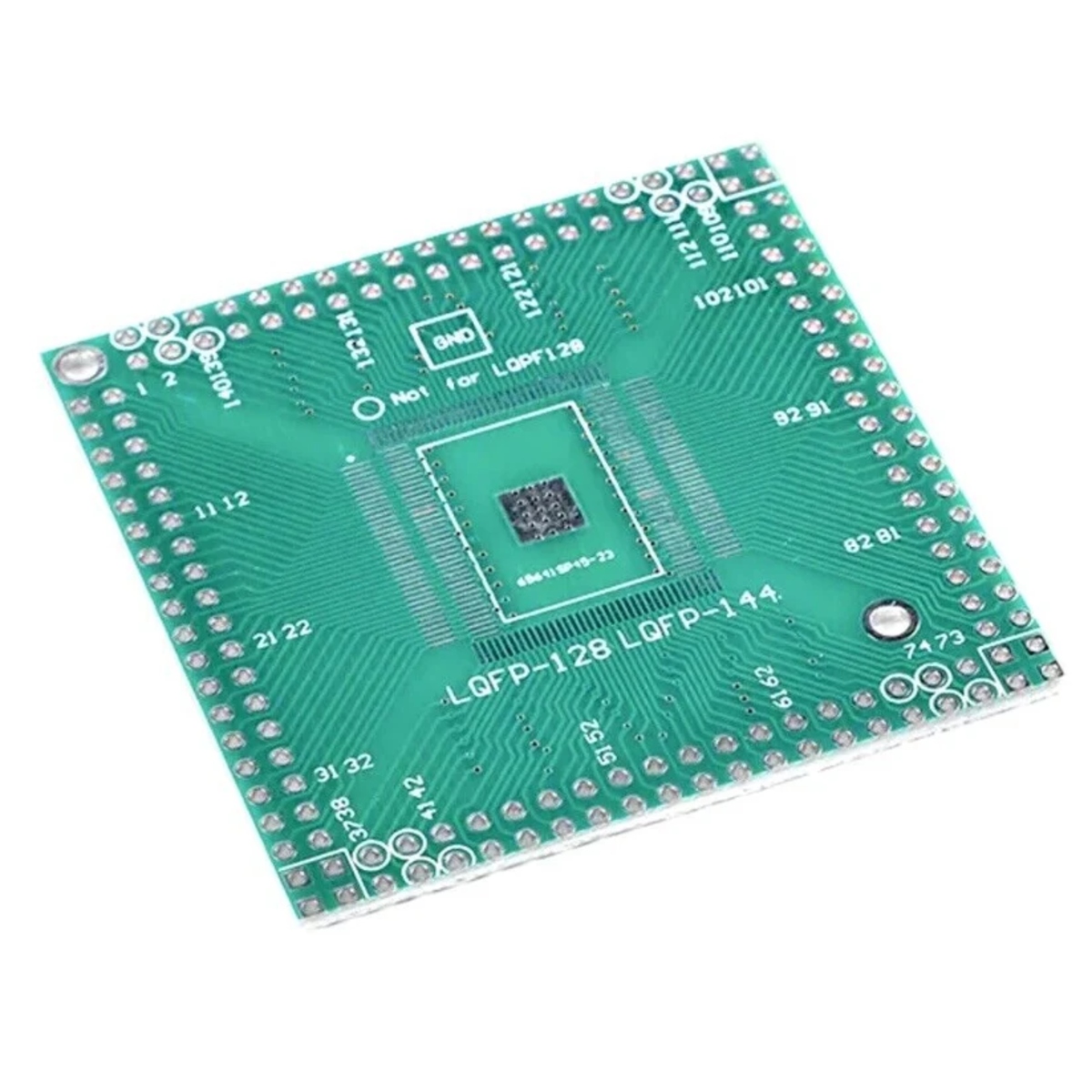

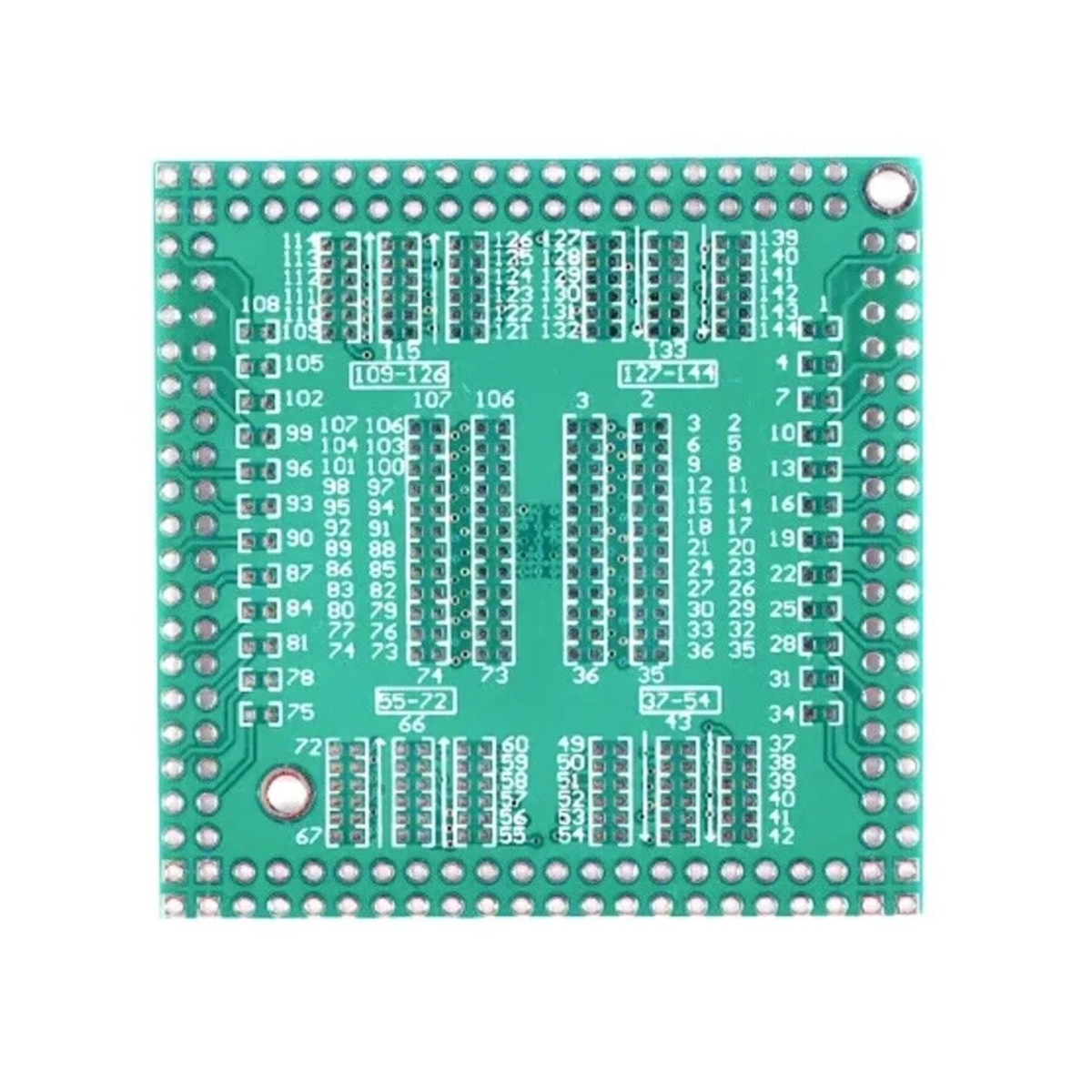

QFP EQFP PQFP TQFP LQFP FQFP 144/128 Pin SMD Adapter PCB Development Board (QFP SMD Adapter PCB)

The QFP 144/128 Pin SMD Adapter PCB is a breakout and development board designed for prototyping, testing, and evaluating QFP package integrated circuits. It supports multiple QFP package variants including QFP, EQFP, PQFP, TQFP, LQFP, and FQFP, allowing easy conversion of fine-pitch SMD ICs to a more accessible PCB format for development and testing.

Key Features -

• Supports 128 pin and 144 pin QFP package ICs

• Compatible with QFP, EQFP, PQFP, TQFP, LQFP and FQFP packages

• Ideal for prototyping and development

• Converts fine-pitch SMD packages to breakout connections

• High-quality PCB construction

• Easy soldering and circuit integration

• Suitable for testing and evaluation

• Compact adapter board design

Specifications -

• Product type - SMD Adapter PCB

• Supported packages - QFP, EQFP, PQFP, TQFP, LQFP, FQFP

• Supported pin count - 128 Pin and 144 Pin

• PCB type - Breakout Adapter Board

• Mounting type - Surface Mount IC Support

• Material - FR4 PCB

• Application - IC Prototyping and Development

• Board construction - Double Sided PCB

• Compatibility - Fine Pitch QFP Package Devices

• Usage - Testing, Evaluation and Development

Applications -

• Microcontroller development

• FPGA prototyping

• Embedded system design

• IC testing and evaluation

• Educational electronics projects

• PCB development laboratories

• Research and development work

• Electronic repair and analysis
