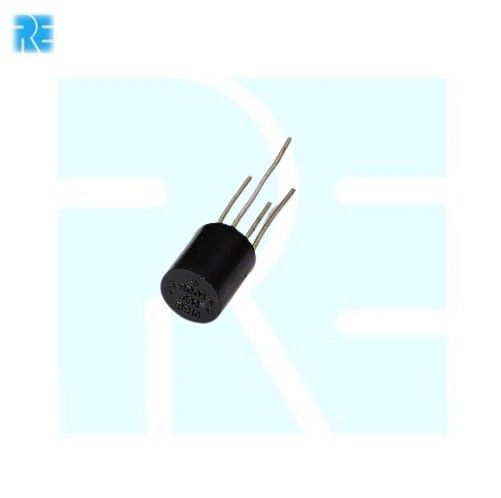

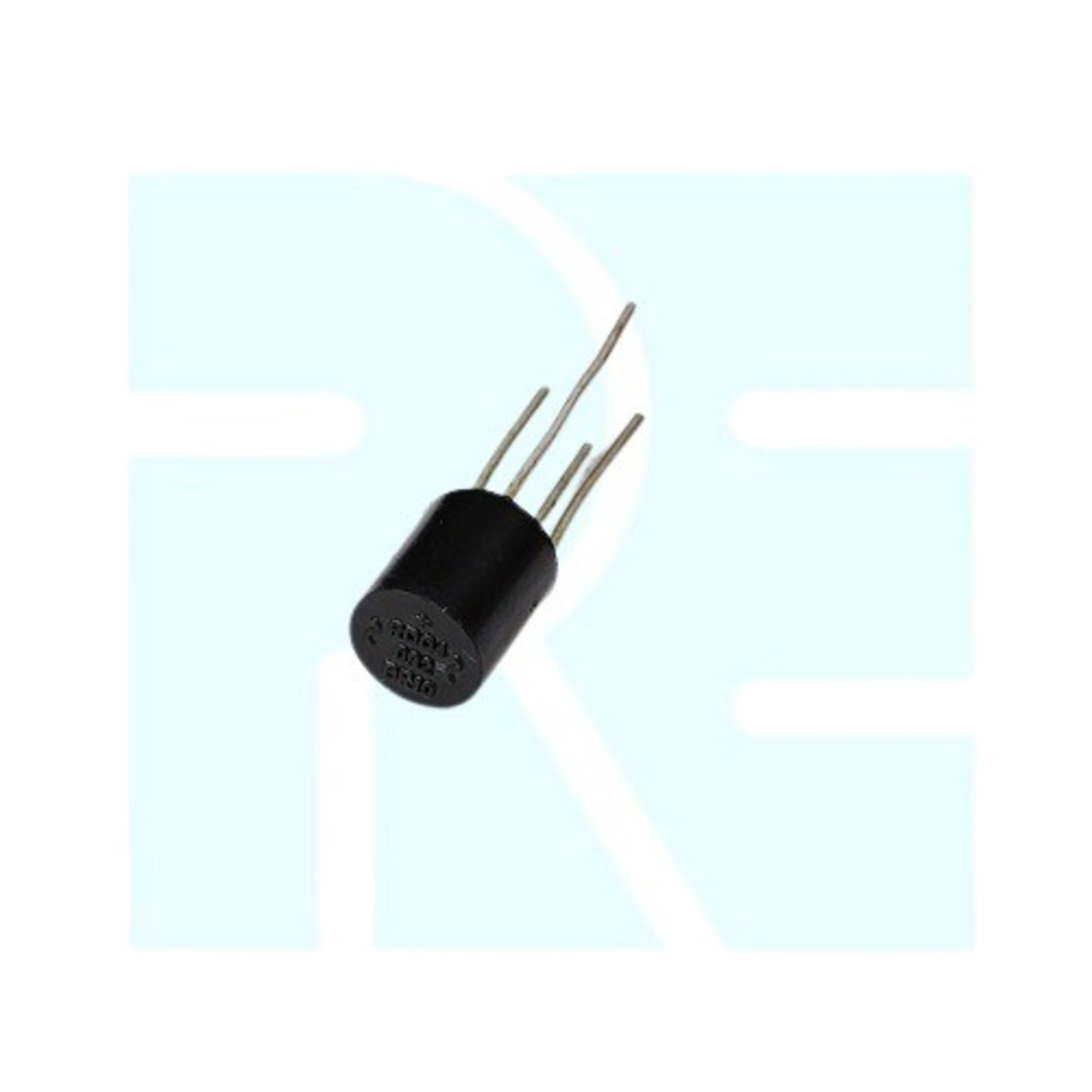

RD04-BR10 Bridge Rectifier 1A 400V Through Hole Rectifier Bridge (RD04-BR10 Rectifier)

The RD04-BR10 is a compact bridge rectifier designed for efficient AC to DC power conversion in power supplies, battery chargers, adapters, control circuits, and general electronic equipment. With a 1A average forward current rating and 400V reverse voltage capability, it provides reliable rectification for low to medium power applications.

Key Features -

• Single phase bridge rectifier

• 1A average forward current rating

• 400V peak reverse voltage

• Efficient AC to DC conversion

• Compact through hole package

• Low forward voltage drop

• Reliable long-term operation

• Suitable for power supply applications

• High surge current capability

• Easy PCB mounting

Specifications -

• Product type - Bridge Rectifier

• Model - RD04-BR10

• Average forward current - 1A

• Peak reverse voltage - 400V

• Rectifier type - Single Phase Full Wave

• Mounting type - Through Hole

• Package type - BR10

• Terminal configuration - 4 Pin Bridge Rectifier

• Operating temperature - Suitable for Industrial Applications

• Application - AC to DC Rectification

Applications -

• AC to DC power supplies

• Battery chargers

• Power adapters

• Industrial control circuits

• Consumer electronics

• LED power supplies

• Instrumentation equipment

• General electronic projects
