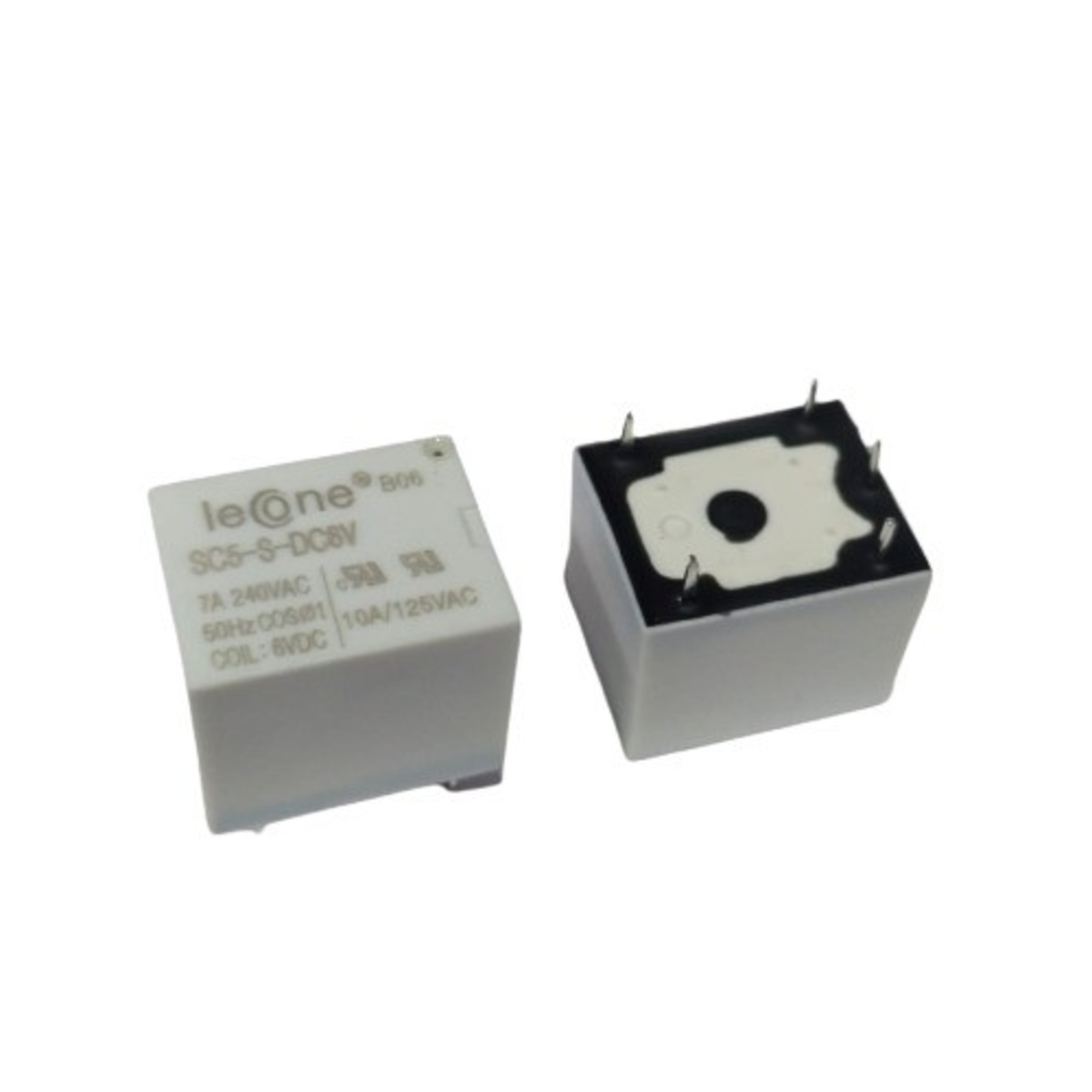

Leone SC5-S-DC6V Relay (6V DC Coil)

The Leone SC5-S-DC6V is an electromechanical relay designed to switch electrical circuits using a 6V DC control coil. When the coil is energized, the internal electromagnetic mechanism changes the contact state to control a separate electrical circuit. Confirm the contact arrangement, switching ratings, and terminal configuration for the exact model before installation.

Key Features -

• 6V DC coil operation

• Electromagnetic switching mechanism

• Suitable for electrical control and switching applications

• Provides electrical separation between the coil and contact circuits

• Suitable for integration into electronic control equipment

Specifications -

• Brand: Leone

• Model: SC5-S-DC6V

• Component Type: Electromechanical Relay

• Coil Voltage: 6V DC

• Contact Configuration: Verify from the exact model datasheet

• Contact Current Rating: Verify from the manufacturer specifications

• Contact Voltage Rating: Verify from the manufacturer specifications

• Mounting and Terminal Type: Verify for the exact variant

Applications -

• Electronic control circuits

• Electrical equipment switching

• Automation systems

• Control panels

• Interface circuits and instrumentation

Specifications -

• Contact Configuration: 1 Form A (normally open) or 1 Form C (changeover), depending on variant

• Contact Material: Silver Cadmium Oxide

• Contact Rating: Up to 7A at 300V AC or 10A at 28V DC, as specified in the series datasheet

• Coil Resistance: 100 Ohm nominal

• Coil Power Consumption: 0.36W

• Dimensions: Approximately 19 x 15.5 x 15.5 mm

• Mounting Type: Printed Circuit Board (PCB)
