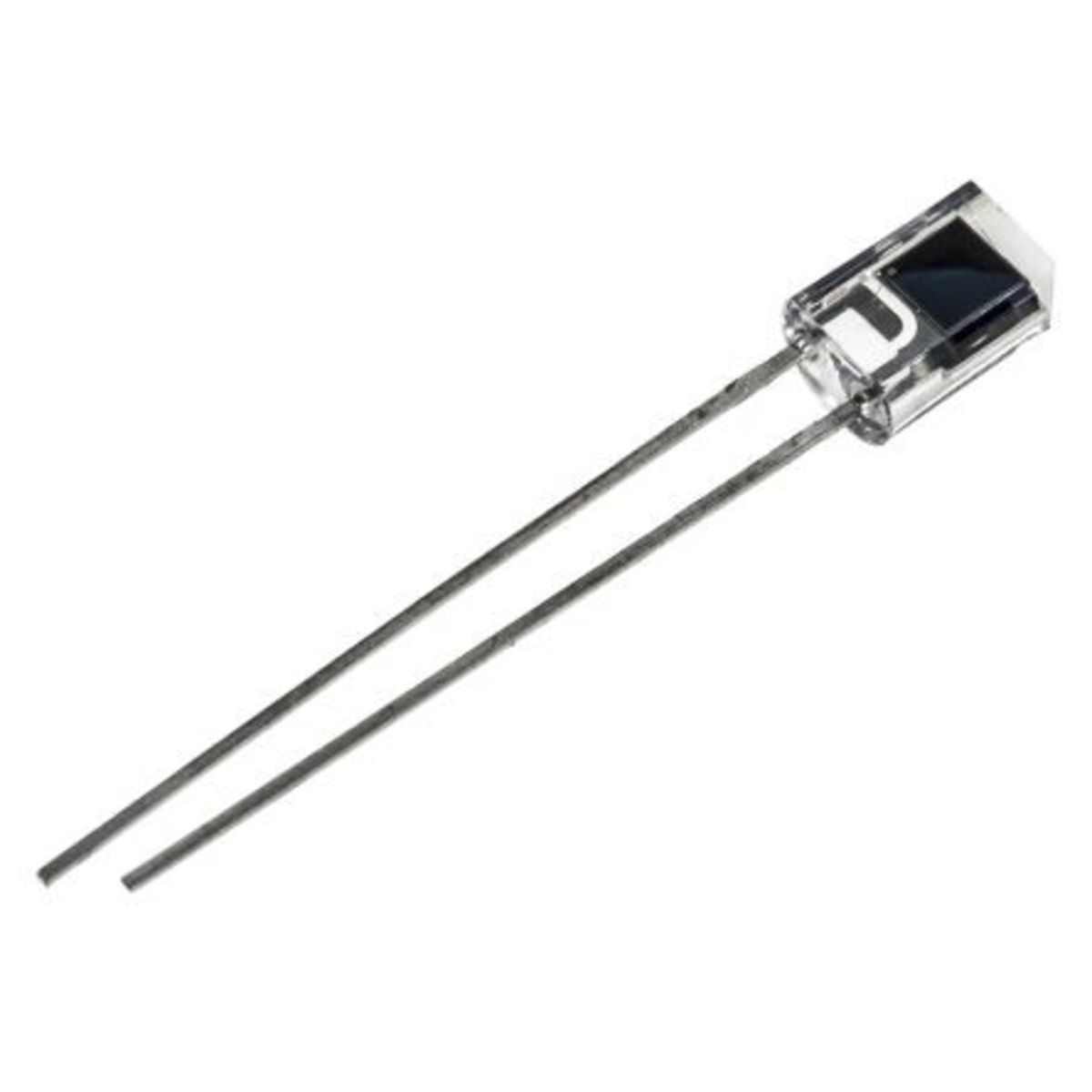

SFH206K Photodiode Light Sensor IC T1 3 by 4 5mm (SFH206K 5mm Photodiode)
The SFH206K Photodiode Light Sensor IC T1 3 by 4 5mm is a high sensitivity silicon photodiode designed for detecting infrared and visible light. It operates with low dark current and fast response, making it suitable for precision light sensing applications. With a peak sensitivity around 850 nm and a wide 60 degree viewing angle, it ensures reliable optical detection. The 5mm through hole package provides easy mounting and stable performance in electronic circuits.
The SFH206K photodiode is widely used in India for optical sensing, light detection systems, industrial electronics, and embedded systems. It is valued for its low noise performance, fast switching capability, and consistent output in high speed applications.
Key Features
- High Sensitivity Photodiode: Detects infrared and visible light
- Peak Wavelength 850 nm: Optimized for IR applications
- Low Dark Current 2 nA: High accuracy and low noise
- Wide Viewing Angle 60 degree: Improved detection coverage
- Fast Response Time: Suitable for high speed sensing
- 5mm Through Hole Package: Easy mounting and reliability
Specifications
- Sensor Type: Silicon photodiode
- Peak Sensitivity Wavelength: 850 nm
- Dark Current: 2 nA
- Viewing Angle: 60 degree
- Package Type: T1 3 by 4 5mm
- Mounting Type: Through hole
- Response Time: Fast switching
- Operating Mode: Photoconductive or photovoltaic
- Applications: Optical sensing light detection IR systems industrial electronics embedded systems
Pinout Configuration Sensor Layout
