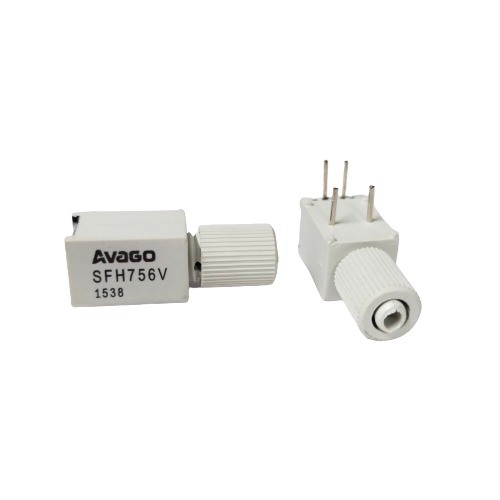

SFH756V Fiber Optic Transmitter Diode IC SMD 660nm 10Mbaud (Red LED Optical Transmitter)

The SFH756V Fiber Optic Transmitter Diode IC is a high-performance SMD optical transmitter designed for fiber optic communication and short-range optical data transmission applications. It utilizes a 660nm red light emitting diode (LED) to efficiently convert electrical signals into optical signals, enabling reliable communication over plastic optical fiber (POF). Supporting data rates of up to 10Mbaud, the SFH756V delivers stable optical output, low power consumption, and dependable performance for industrial and embedded communication systems.

The SFH756V is widely used in fiber optic communication equipment, industrial automation, embedded electronics, optical transceiver modules, and short-distance data links. Its compact SMD package, fast switching capability, and efficient light emission make it an excellent choice for modern optical communication designs.

Key Features -

• 660nm red LED optimized for fiber optic communication

• Supports data transmission rates up to 10Mbaud

• Reliable transmission over short distances up to 3m

• Stable and consistent optical output

• Fast switching for high-speed communication

• Low power consumption

• Compact SMD package for space-saving PCB designs

• Easy integration with optical receiver modules

• Suitable for industrial and embedded applications

Specifications -

• Product Type: Fiber Optic Transmitter Diode IC

• Model: SFH756V

• Device Type: SMD Optical Transmitter

• Emission Source: Red Light Emitting Diode (LED)

• Emission Wavelength: 660nm

• Data Rate: Up to 10Mbaud

• Transmission Distance: Up to 3m

• Forward Current: 50mA

• Forward Voltage: 2.1V to 3V

• Output Type: Optical Signal Output

• Package Type: SMD Optical Transmitter Package

• Mounting Type: Surface Mount Device (SMD)

Applications -

• Fiber optic communication systems

• Plastic optical fiber (POF) data links

• Industrial automation networks

• Embedded communication systems

• Optical transceiver modules

• Short-range data transmission equipment

• Optical sensing and control systems

• Laboratory and educational projects
