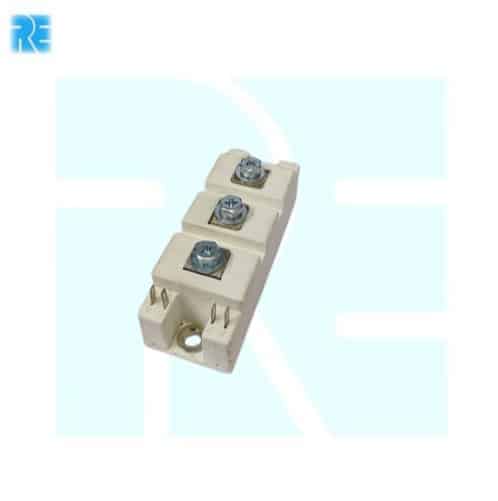

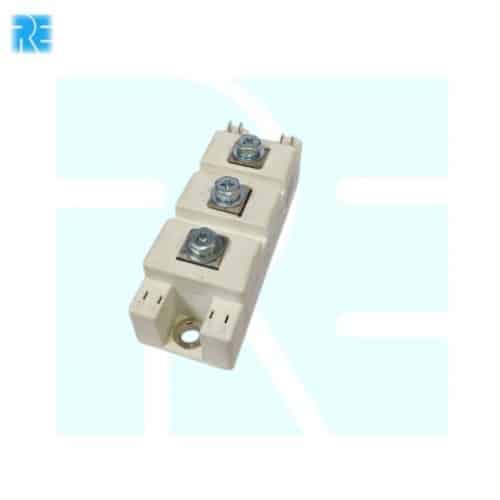

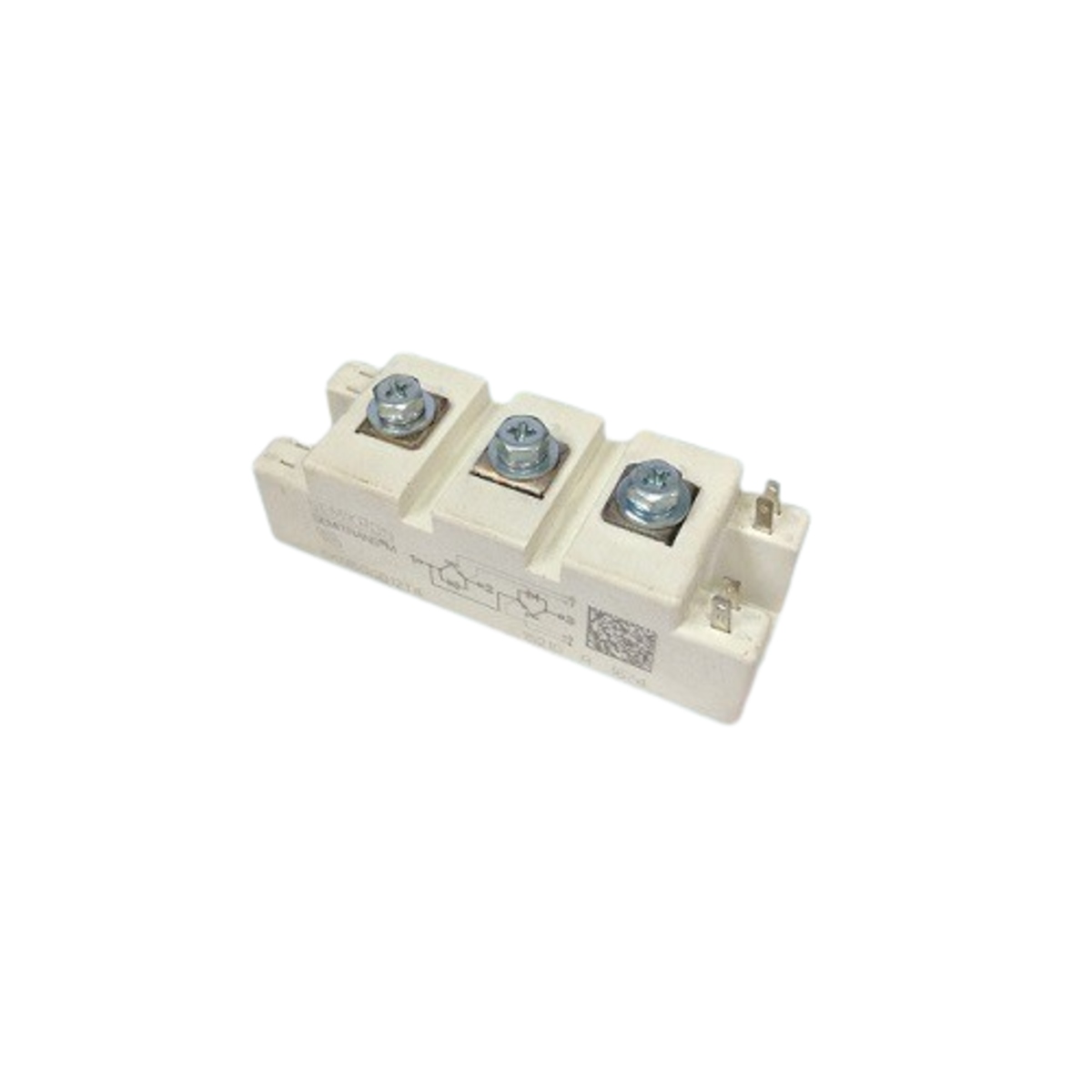

SKM50GB12T4 IGBT Half Bridge Module 1200V 50A SEMITRANS 2

The SKM50GB12T4 is a high-performance Half Bridge IGBT Power Module from the SEMITRANS 2 series, designed for high-efficiency power switching in industrial applications. Featuring a 1200V collector-emitter voltage, 50A nominal collector current, and 81A continuous collector current, this module utilizes IGBT4 Fast Trench technology with soft recovery CAL diodes for low switching losses and excellent thermal performance. It is widely used in AC inverter drives, UPS systems, welding machines, motor control, and industrial power conversion equipment.

Key Features -

• Half bridge IGBT module

• 1200V collector-emitter voltage

• 50A nominal collector current

• 81A continuous collector current

• Fast Trench IGBT4 technology

• Soft recovery CAL diode technology

• Integrated gate resistor

• DBC insulated copper baseplate

• High power cycling capability

• SEMITRANS 2 package

Specifications -

• Product Type: IGBT Power Module

• Model: SKM50GB12T4

• Manufacturer Series: SEMITRANS 2

• Topology: Half Bridge

• IGBT Technology: IGBT4 Fast Trench

• Collector Emitter Voltage: 1200V

• Nominal Collector Current: 50A

• Continuous Collector Current: 81A

• Collector Emitter Saturation Voltage: 1.85V Typical

• Maximum Junction Temperature: 175 C

• Mounting Type: Panel Mount

• Package Type: SEMITRANS 2

• Number of Pins: 7

Applications -

• AC inverter drives

• Variable frequency drives (VFD)

• UPS systems

• Industrial motor controllers

• Electronic welding equipment

• Renewable energy inverters

• High-power switching power supplies

• Industrial automation equipment
