SMD 0805, 0603 & 0402 to DIP Double-Sided 2.54mm Adapter PCB (SMD Component Breakout Board)

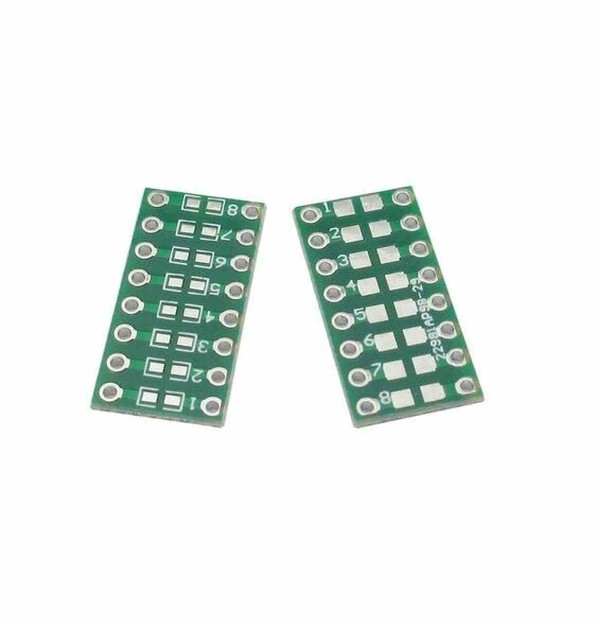

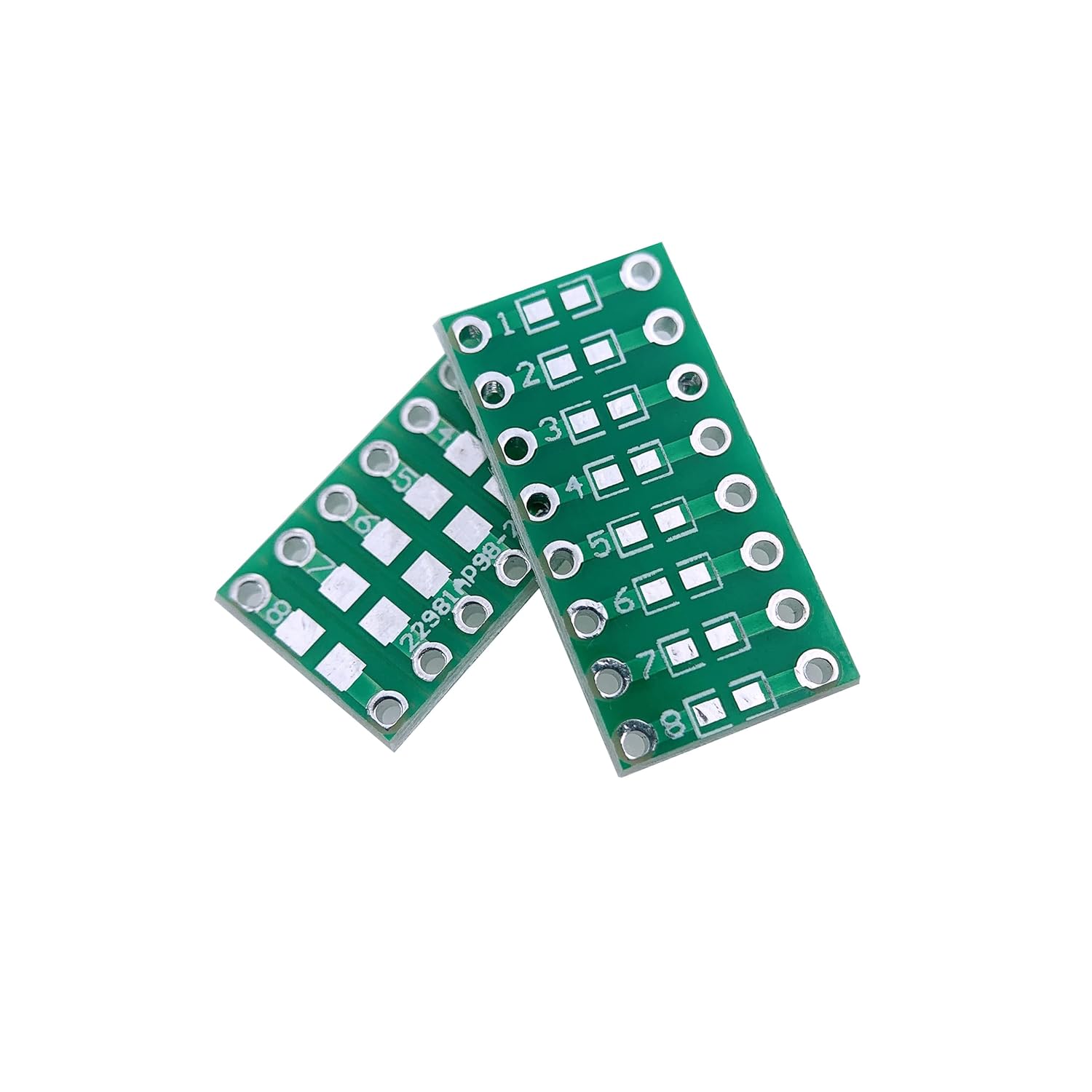

The SMD 0805, 0603 & 0402 to DIP Double-Sided 2.54mm Adapter PCB is a versatile SMD to DIP breakout board designed for mounting 0805, 0603, and 0402 surface-mount passive components onto a standard 2.54mm through-hole footprint. Its double-sided design supports multiple SMD package sizes, making it ideal for prototyping, circuit development, testing, and replacing through-hole components with compact SMD alternatives.

Manufactured from high-quality FR4 glass epoxy, this adapter PCB enables easy integration of SMD resistors, capacitors, LEDs, and other passive components into breadboards, prototype PCBs, and DIY electronic projects.

Key Features -

• Supports 0805, 0603, and 0402 SMD component packages

• Converts SMD components to standard 2.54mm DIP footprint

• Double-sided adapter PCB design

• Compatible with resistors, capacitors, LEDs, and other passive components

• Standard 2.54mm pin spacing for breadboards and prototype PCBs

• High-quality FR4 glass epoxy construction

• Ideal for prototyping, testing, repair, and circuit development

Specifications -

• Product Type: SMD to DIP Adapter PCB

• Supported Component Packages: 0805, 0603, 0402

• Supported Components: Resistors, Capacitors, LEDs, and Similar Passive Components

• Output Pitch: 2.54mm DIP

• PCB Type: Double-Sided Adapter Board

• Mounting Type: Surface Mount to Through-Hole Adapter

• PCB Material: FR4 Glass Epoxy

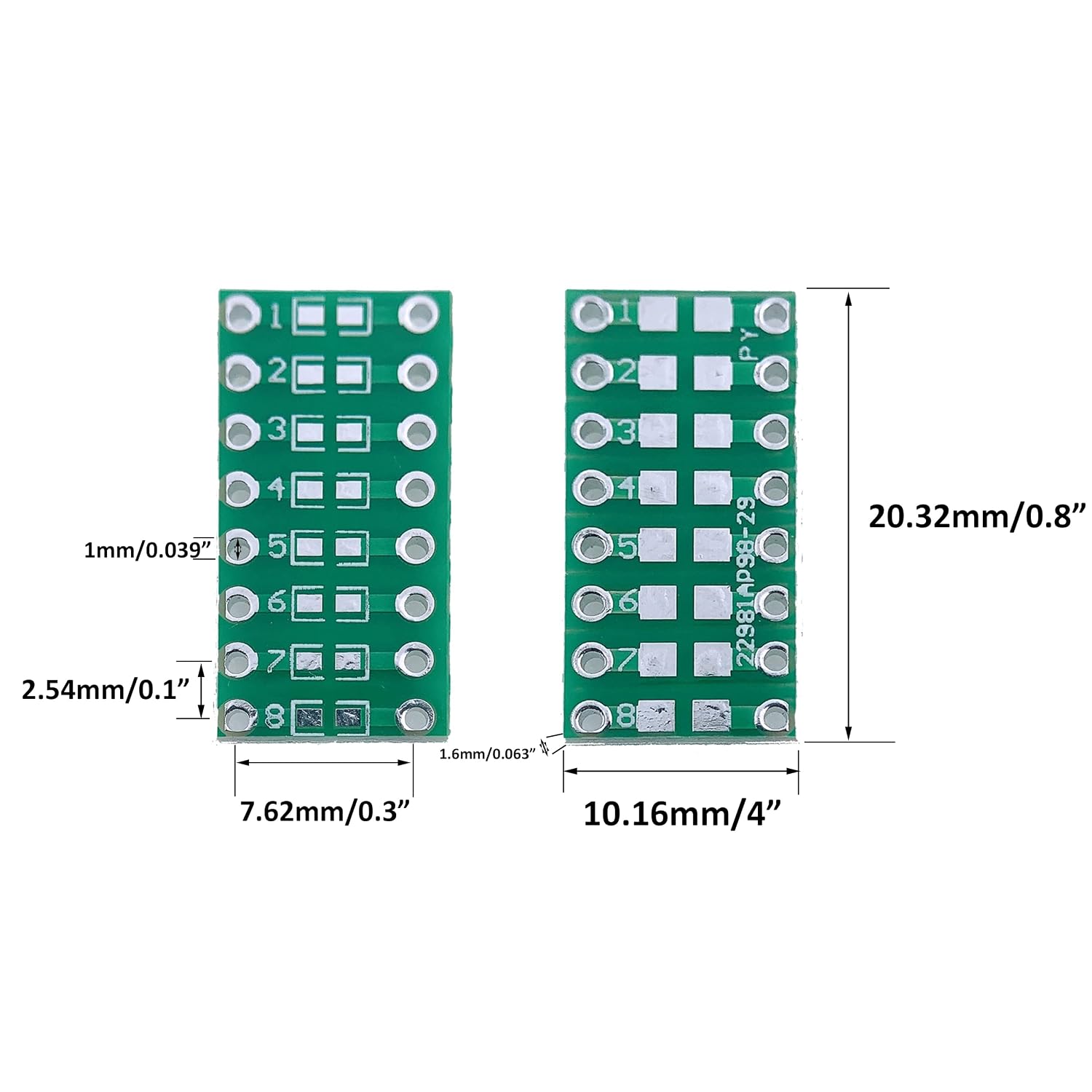

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: SMD Component Prototyping and Testing

Applications -

• SMD component prototyping

• Breadboard circuit development

• Embedded system projects

• Electronic repair and rework

• Educational electronics experiments

• DIY electronic projects

• Prototype PCB assembly

• Testing SMD passive components
