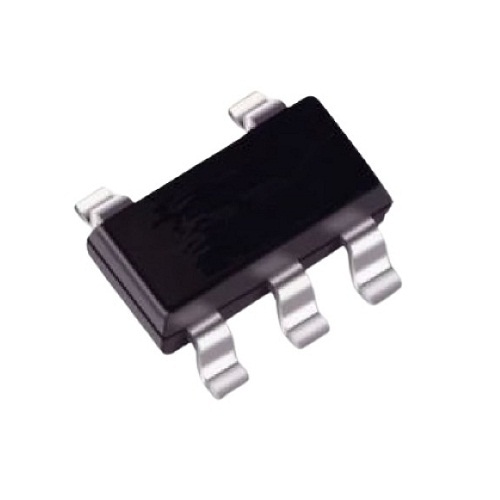

SN74LVC1G125DBVR Single Non-Inverting 3-State Buffer IC SOT-23-5 (1-Bit Logic Buffer IC)

The SN74LVC1G125DBVR is a single non-inverting 3-state buffer designed for high-speed digital signal buffering and bus interface applications. Operating over a wide supply voltage range of 1.65V to 5.5V, it features 5.5V tolerant inputs and outputs, low power consumption, and high-speed performance. The 3-state output allows multiple devices to share a common bus, while Ioff support enables partial power-down operation without damaging the device. Its compact SOT-23-5 package makes it ideal for space-constrained electronic designs.

Key Features -

• Single non-inverting logic buffer with 3-state output

• Wide operating voltage range from 1.65V to 5.5V

• 5.5V tolerant inputs and outputs

• High-speed operation with low power consumption

• 3-state output suitable for shared bus applications

• Ioff feature supports partial power-down mode

• Compact SOT-23-5 surface-mount package

• Compatible with modern low-voltage logic systems

Specifications -

• Product Type - Logic Buffer IC

• Part Number - SN74LVC1G125DBVR

• Logic Function - Non-Inverting Buffer

• Number of Elements - 1

• Bits per Element - 1

• Output Type - 3-State

• Supply Voltage Range - 1.65V to 5.5V

• Input/Output Tolerance - 5.5V

• Package - SOT-23-5

• Mounting Type - Surface Mount (SMD)

• Power Consumption - Low

• Operating Speed - High-Speed

Applications -

• Digital signal buffering

• Microcontroller interfacing

• Bus interface circuits

• Data communication systems

• Embedded systems

• Industrial control electronics

• Consumer electronic devices

• FPGA and CPLD interfaces

• General-purpose logic level buffering
